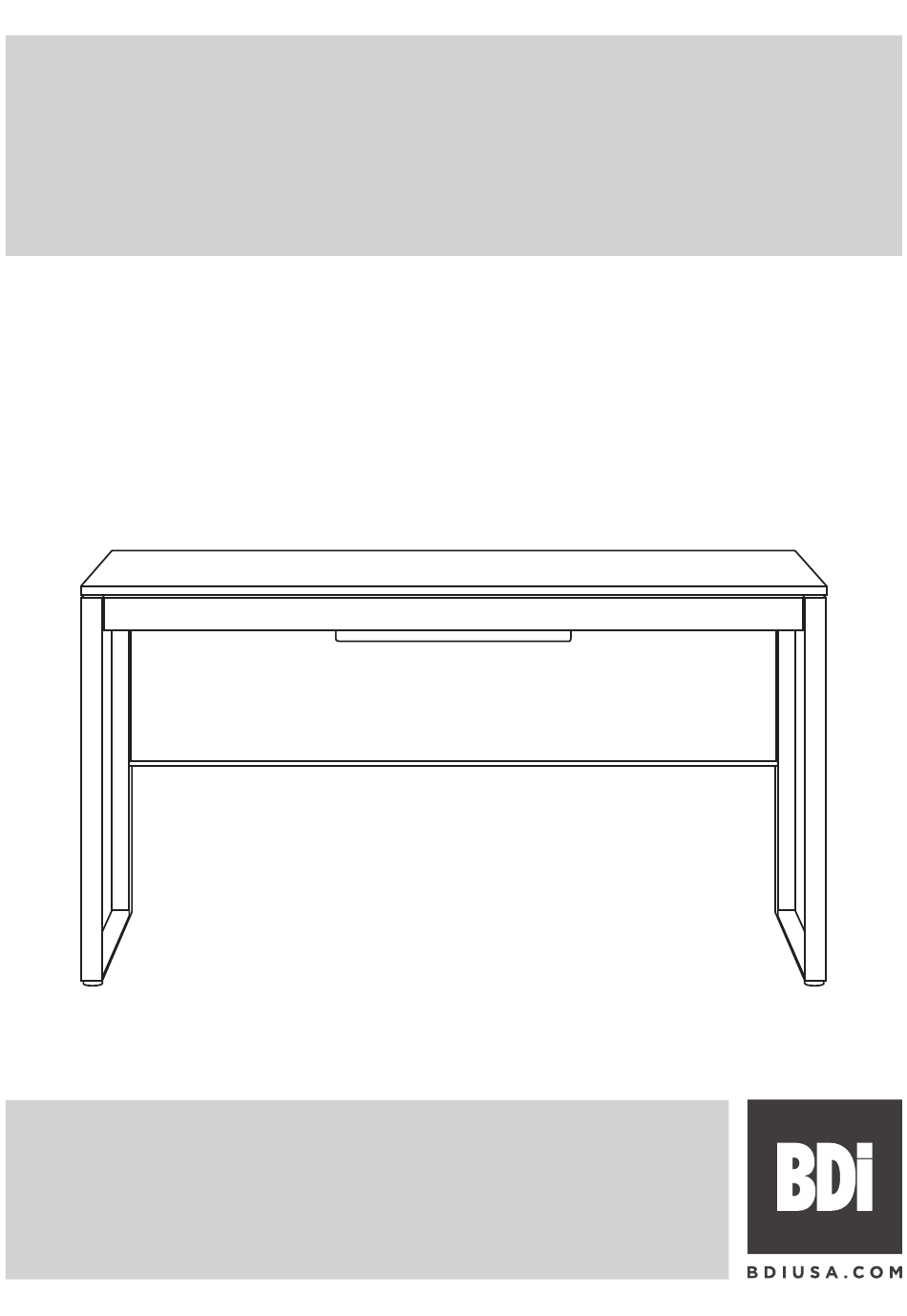

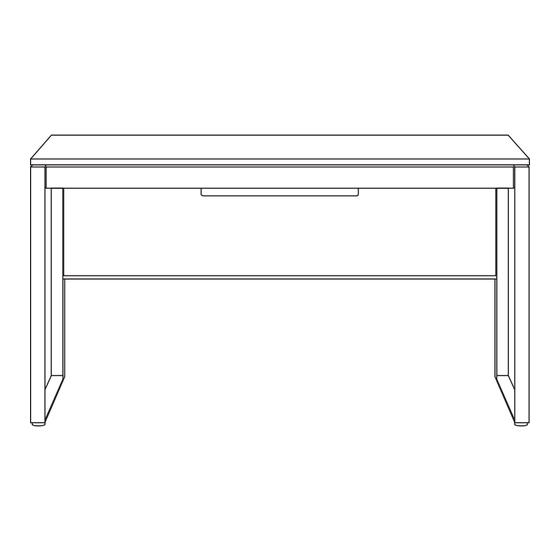

  • Page 1 LINEA 6221 ™ DESK INSTRUCTION MANUAL DESIGN MATTHEW WEATHERLY...
  • Page 3 Congratulations on the purchase of your Linea Desk 6221 from BDI. Your desk has been designed to provide a lifetime of enjoyment. This manual will provide you with assembly instructions and other helpful information that will ensure that you get the most out of your product.
  • Page 4 HARDWARE AND COMPONENTS Unpack and identify the parts listed below. The assembly workspace should be a non-marring surface such as carpet. For missing hardware pieces, please contact BDI Customer Service at customerservice@bdiusa.com. Do not use power tools for the assembly of this product.
  • Page 5 HARDWARE AND COMPONENTS PART # PART # PART # DESCRIPTION DESCRIPTION DESCRIPTION Left Leg Right Leg Drawer Liner QUANTITY QUANTITY QUANTITY PART # PART # DESCRIPTION Wire Tray DESCRIPTION Front Panel QUANTITY QUANTITY PART # PART # DESCRIPTION DESCRIPTION Back Panel Wire Management Extrusion QUANTITY QUANTITY...
  • Page 6 Position the (C1) Top Panel upside down on a PART/DESCRIPTION padded surface (such as a carpet). Loosely attach (C2) Upper Trough as shown using 2 (H1) Screws. T1-HEX WRENCH NOTE: DO NOT fully tighten the screws. H1-SCREW 6 | BDIUSA.COM LINEA 6221...

  • Page 7: Step 2. Attach Legs

    STEP 2. ATTACH LEGS ASSEMBLY Attach (C4) Left Leg using 2 (H1) Screws going PART/DESCRIPTION from the inside of the ends of the (C2) Upper Trough and into the threaded holes on the inside of (C4) Left Leg. T1-HEX WRENCH Attach (C5) Right Leg to the other end of the (C2) Upper Trough using 2 (H1) Screws.
  • Page 8 Attach both (C4) and (C5) Legs to the bottom PART/DESCRIPTION of the (C1) Top Panel using 6 (H2) Screws going into the countersunk holes. Tighten with a (T1) Hex Wrench. T1-HEX WRENCH NOTE: Fully tighten ALL screws from previous steps. H2-SCREW 8 | BDIUSA.COM LINEA 6221...
  • Page 9 STEP 4. ATTACH LOWER TROUGH ASSEMBLY Partially thread 2 (H1) Screws into the highest PART/DESCRIPTION threaded hole on each leg. Hook the (C3) Lower Trough onto the partially threaded screws. T1-HEX WRENCH H1-SCREW Install 2 (H1) Screws into the lower holes on each leg.
  • Page 10 2 PERSON TASK ASSEMBLY STEP 5. INSERT DRAWER LINER With help from another person, carefully place your Linea Desk onto its base. Open the drawer and insert the (C6) Drawer Liner. 10 | BDIUSA.COM LINEA 6221...
  • Page 11 STEP 6. INSTALL WIRE TRAY ASSEMBLY Install the (C7) Wire Tray by placing the two tabs into the two slots in the bottom middle of the upper trough. (C7) Wire Tray in the up position (C7) Wire Tray in the down position NEED ASSISTANCE? customerservice@bdiusa.com BDIUSA.COM | 11...
  • Page 12 (C9) Back Panel to hide wires. Position the lower edge of (C9) Back Panel into the groove. The top is held in place with magnets. 12 | BDIUSA.COM LINEA 6221...
  • Page 13 STEP 9. INSTALL WIRE MANAGEMENT EXTRUSION—OPTIONAL ASSEMBLY Install the (C10) Wire Management Extrusion on the leg of your choice. on the side on the back of the leg NEED ASSISTANCE? customerservice@bdiusa.com BDIUSA.COM | 13...

  • Page 14: Fine Tuning

    (C10) Wire Management Extrusion. Your Linea Desk is equipped with built-in levelers. Dial down one or more levelers (by hand) until you attain a level stance. Dial down 14 | BDIUSA.COM LINEA 6221...

  • Page 15: Care And Maintenance

    While BDI’s stained wood finishes are stable in tone & appearance, all finishes are subject to some degree of discoloration with prolonged exposure to direct sunlight. Please take care to avoid positioning your BDI cabinet in any area with extensive direct sunlight.

  • Page 16: Warranty

    Select chairs carry coverage for five (5) years from the date of the product delivery, based on an 8-hour daily use pattern. BDI reserves the right to refine or update its warranty from time to time. See the complete and latest warranty document at www.bdiusa.com/warranty.
