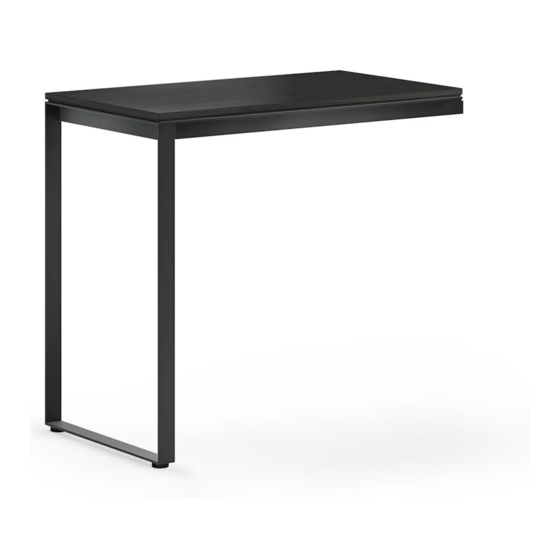

- Page 1 LINEA 6224 ™ WORK DESK RETURN INSTRUCTION MANUAL LET’S GET STARTED. DESIGN MATTHEW WEATHERLY...
- Page 3 Congratulations on the purchase of your Linea Work Desk Return 6224 from BDI. Your desk has been designed to provide a lifetime of enjoyment. This manual will provide you with assembly instructions and other helpful information that will ensure that you get the most out of your product.
- Page 4 HARDWARE AND COMPONENTS Unpack and identify the parts listed below. The assembly workspace should be a non-marring surface such as carpet. For missing hardware pieces, please contact BDI Customer Service at customerservice@bdiusa.com. Do not use power tools for the assembly of this product.
- Page 5 STEP 1. ATTACH LEG FRAME ASSEMBLY Connect (C1) Leg Frame to (C2) Top Panel PART/DESCRIPTION using 2 (H1) Screws. Partially tighten screws with (T1) Hex Wrench. T1-HEX WRENCH H1-SCREW NEED ASSISTANCE? customerservice@bdiusa.com BDIUSA.COM | 5...
- Page 6 ASSEMBLY STEP 2. TIGHTEN LEG FRAME Connect (C1) Leg Frame to (C2) Top Panel PART/DESCRIPTION inserts using 3 (H3) Screws. Fully tighten both (H1) Screws and (H3) Screws with (T1) Hex Wrench. T1-HEX WRENCH H3-SCREW 6 | BDIUSA.COM LINEA 6224...
- Page 7 STEP 3. PARTIALLY THREAD THE WORK DESK (6223) ASSEMBLY You may attach the Return to either the left or PART/DESCRIPTION right side of the Linea Work Desk (6223). Partially thread 2 (H2) Screws into the threaded holes, leaving it extended out 1/4" (6mm) to T1-HEX WRENCH allow the connector tabs on the Return to slide into the place between the screw head and the...
- Page 8 ASSEMBLY STEP 4. ATTACH RETURN TO THE WORK DESK (6223) Slide the connection tabs onto the partially threaded screws. Tighten the (H2) Screws with the (T1) Hex Wrench. 8 | BDIUSA.COM LINEA 6224...
-
Page 9: Fine Tuning
FINE TUNING Your Linea Return is equipped with built-in levelers. Dial down one or more levelers (by hand) until you attain a level stance. Dial down NEED ASSISTANCE? customerservice@bdiusa.com BDIUSA.COM | 9... -
Page 10: Care And Maintenance
While BDI’s stained wood finishes are stable in tone & appearance, all finishes are subject to some degree of discoloration with prolonged exposure to direct sunlight. Please take care to avoid positioning your BDI cabinet in any area with extensive direct sunlight. -
Page 11: Warranty
WARRANTY BDI warrants to the original purchaser that for the below-stated warranty term, BDI will repair or replace any product, part, or component covered by this warranty that fails under normal use as a result of a defect in material or workmanship. BDI will repair or replace the aforementioned product, part or component with a comparable product, part or component. - Page 12 These distinctive product configurations are protected by US and international patents, trade dress, and/or copyright laws. Linea & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2021, BDI | V.03.02.2021 Made in Vietnam.
