Summary of Contents for BDI MATTHEW WEATHERLY LINQ 6829

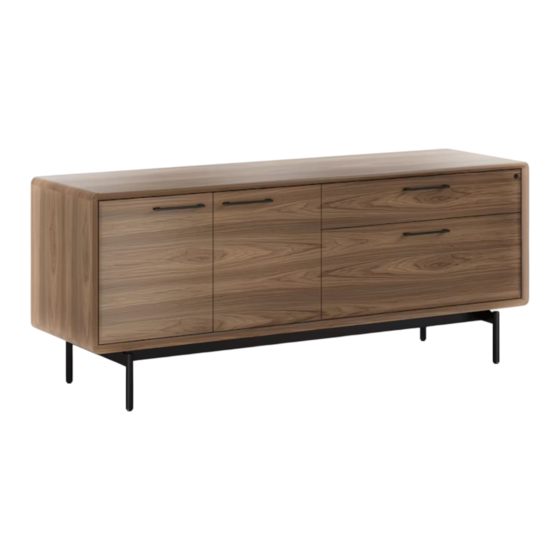

- Page 1 LINQ 6829 ™ CREDENZA INSTRUCTION MANUAL LET’S GET STARTED. DESIGN MATTHEW WEATHERLY...
- Page 3 Congratulations on the purchase of your LINQ cabinet from BDI. Your cabinet has been designed to provide a lifetime of enjoyment. This manual will provide assembly instructions and other helpful information to ensure you get the most out of your product.
- Page 4 HARDWARE AND COMPONENTS Unpack and identify the parts listed below. The assembly workspace should be a non-marring surface, such as carpet. For missing hardware pieces, please contact BDI Customer Service at customerservice@bdiusa.com. For all other concerns, please contact your BDI retailer.
- Page 5 HARDWARE AND COMPONENTS HARDWARE AND COMPONENTS Spanner (C2) QTY: 2 Leg (C3) QTY: 2 KLEET (C4) QTY: 2 Pull (C5) QTY: 4 Drawer Tray (C6) QTY: 1 Glass Shelf (C7) QTY: 1 File Bar (C8) QTY: 2 File Clip (C9) QTY: 4 Wall Anchor Strap (C10) QTY: 1...
- Page 6 ASSEMBLY HARDWARE AND COMPONENTS STEP 1. INSTALL SPANNERS Unpack all components and carefully lay the Cabinet (C1) upside down on a soft, non- HEX WRENCH – T1 marring surface such as carpet. Attach the 2 Spanners (C2) using 6 Screws (H1). Tighten with the Hex Wrench (T1), but do not over- SCREW –...
- Page 7 STEP 2. INSTALL LEGS ASSEMBLY Attach the Legs (C3) to the Spanners (C2) using 8 Screws (H2). Tighten with Hex HEX WRENCH – T1 Wrench (T1). Once in place, securely tighten all screws of the Spanner and Leg assembly. SCREW – H2 NEED ASSISTANCE? customerservice@bdiusa.com | 7...
- Page 8 ASSEMBLY STEP 3. INSTALL KLEETS Install the KLEETS (C4) to the Cabinet using NOT INCLUDED 4 Wood Screws (H3). Tighten with Phillips PHILLIPS SCREWDRIVER Screwdriver (not included). SCREW – H3 8 | BDIUSA.COM LINQ 6829...
- Page 9 STEP 4. INSTALL PULLS AND GLASS SHELF ASSEMBLY With help from another person, carefully flip the NOT INCLUDED cabinet onto its base. Opening the drawers one at PHILLIPS SCREWDRIVER a time, install the Pulls (C5) using 2 Screws (H4) per Pull. Tighten with Phillips Screwdriver (not included).
- Page 10 ASSEMBLY STEP 5. INSTALL DRAWER TRAY Place the Drawer Tray (C6) in the top drawer where desired. 10 | BDIUSA.COM LINQ 6829...
- Page 11 STEP 6. INSTALL FILE HANGING BARS ASSEMBLY Press the File Clips (C9) onto the ends of the File Hanging Bars (C8). Place the File Hanging Bars in the bottom drawer where desired. NEED ASSISTANCE? customerservice@bdiusa.com | 11...
- Page 12 ASSEMBLY STEP 7. ANCHOR CREDENZA TO THE WALL It is strongly recommended that you anchor NOT INCLUDED your LINQ Credenza to the wall using the PHILLIPS SCREWDRIVER provided Anchor Strap (C10). Measure 28" (711mm) up from the floor and mark the wall as shown.
-
Page 13: Fine Tuning
FINE TUNING LEVEL CREDENZA Once the unit is completely assembled and in its PART/DESCRIPTION final position, adjust the levelers using Leveler Wrench (T2). Using a level (not provided), level your cabinet first side to side and then front to LEVELER WRENCH – T2 back. -
Page 14: Care And Maintenance
While BDI’s stained wood finishes are stable in tone & appearance, all finishes are subject to some degree of discoloration with prolonged exposure to direct sunlight. Please avoid positioning your BDI cabinet in any area with ample direct sunlight. -
Page 15: Warranty
The decision to repair or replace will be at BDI’s sole discretion. BDI furniture is warranted for three (3) years from the date of purchase, as shown on your sales receipt. The warranty period starts from the date of purchase. This warranty extends only to the original purchasers who acquire new products from BDI Authorized Resellers. - Page 16 These distinctive product configurations are protected by US and international patents, trade dress, and/or copyright laws. LINQ & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2024, BDI | V.02.23.2024 Made in Vietnam.
