PLC setup

The first step is to configure the baudrate and station number. The PLC used in this case is configured by
switches located on the CPU unit. Then start the tool GX IEC Developer to configure the PLC.
IMPORTANT Make sure when possible to use the button "End" in each dialog window. Otherwise the
configuration will not be saved.
4.1

PLC module setup

Click on Project and then choose new. The following window will be visible.

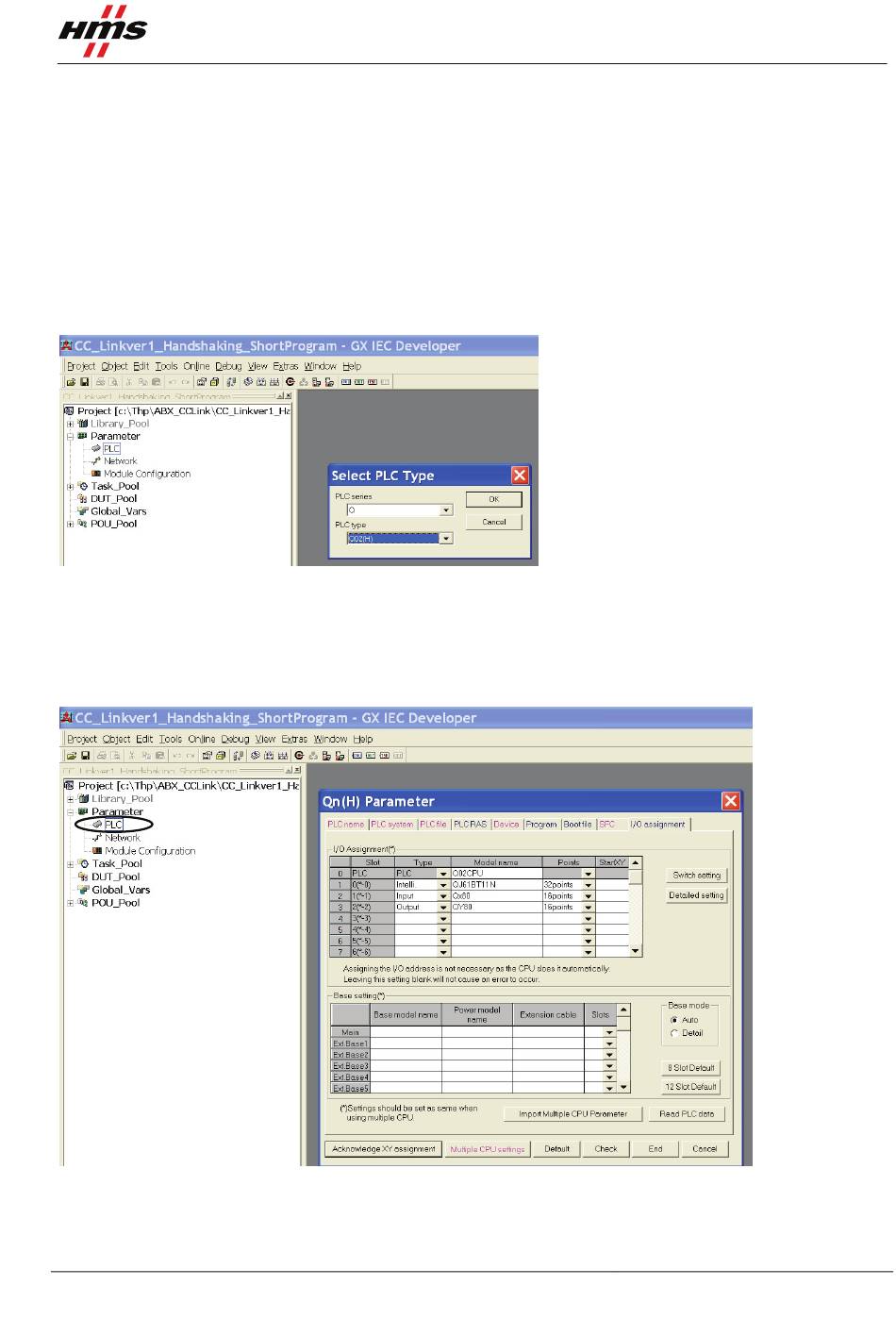

Figure 2 Configuring the type of PLC.
Start with choosing the type of PLC. In this case a Q02 PLC is used. Make sure the correct type of PLC is
selected.
The next step is to configure the modules. Double click on the "PLC" under "Parameter" and the window
below will appear.
Figure 3 Module configuring.
Enter the type of PLC, Intelli. and Input/Output device. In this case four modules are used, one CPU, one
Intelli, one Input and one Output device. For more information regarding the type and the number of points
refer to the Mitsubishi manual.
