Communicator configuration

Start the Anybus Communicator and create a new configuration. Choose the CC-link configuration and the
desired number of occupied stations and extension cycles. In this case 2 occupied stations and 2 extension
cycles are used. In the case with the communicator the version 2.0 is enabled. See the figure below.

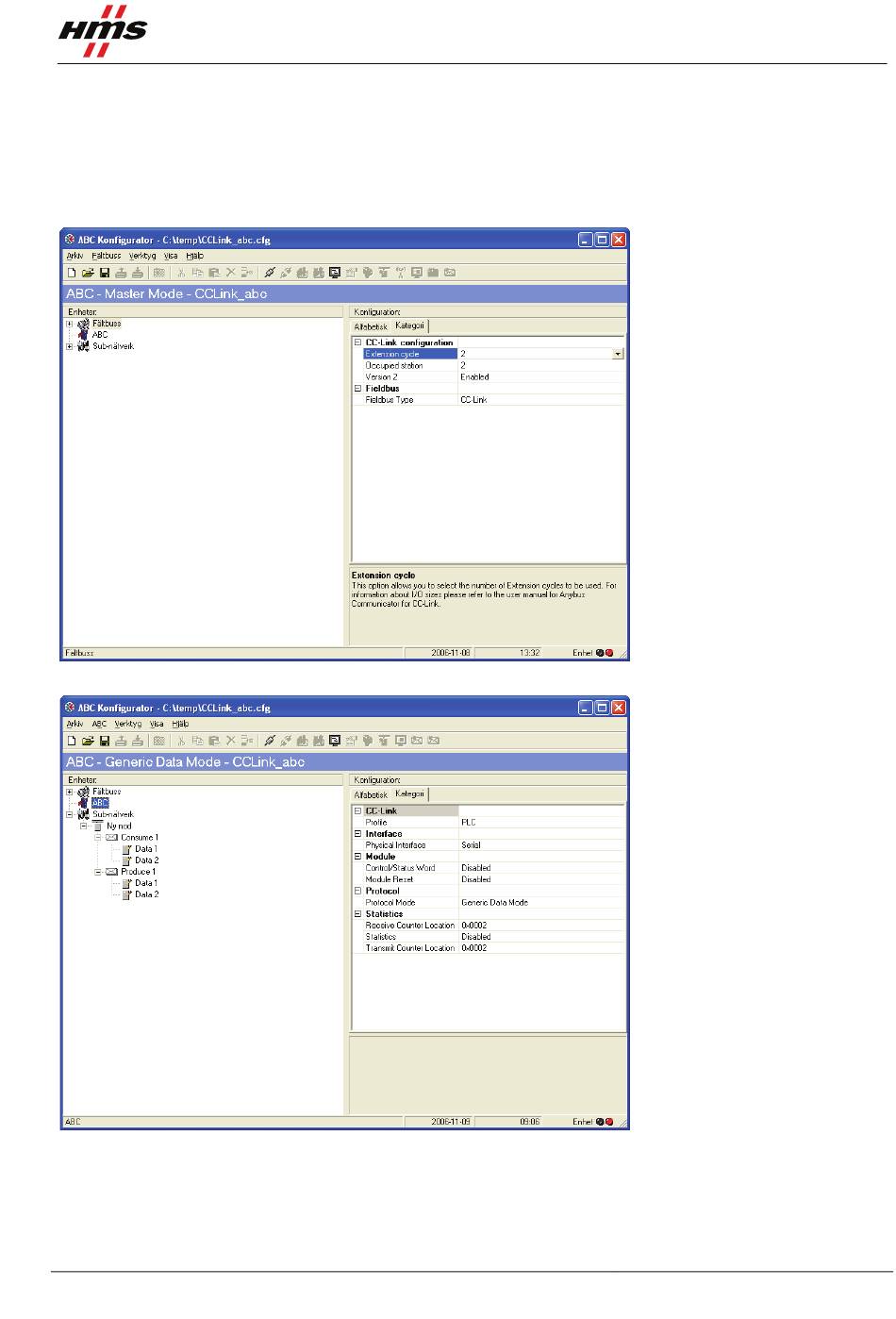

Figure 16 Configuring the fieldbus.
Figure 17 Configuring the ABC.
In this case a loop back dongle at the serial connection of the Communicator is connected. To loop data the
Generic Data Mode is selected, all other values are left at their defaults. When PLC profile is selected, as in
this case, handshaking with the Communicator is necessary.
