How to set up an Anybus CC-Link slave module with a Mitsubishi PLC
SCM-7032-027
Rev. 1.02
Version 2.0 For the memory offset of the version 2.0 refer to chapter 4.3 PLC handshaking. The procedure
to test the configuration is the same as for version 1.0, see the previous section. The window below shows
the monitoring window in GX IEC Developer when the Communicator is in Ready state.

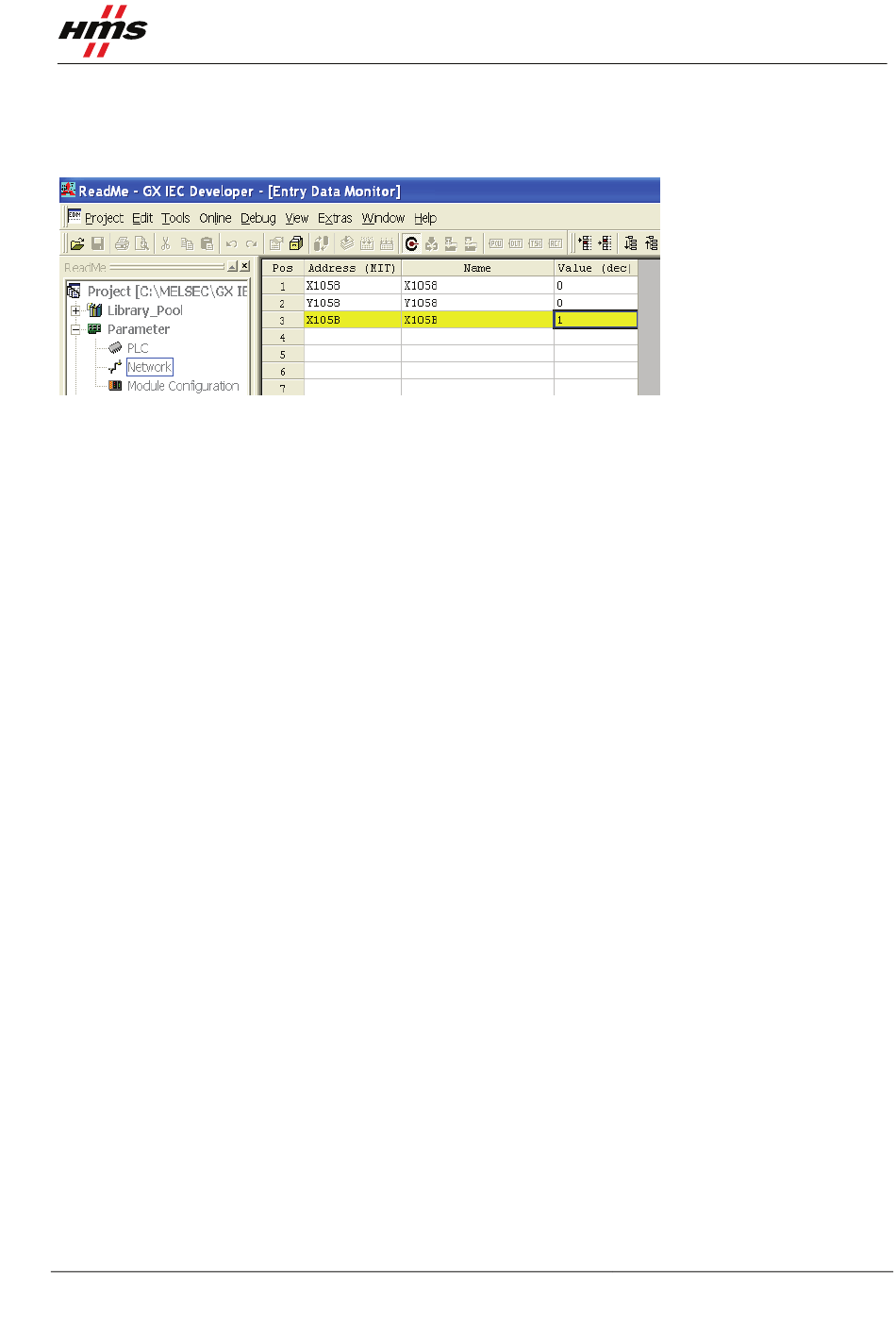

Figure 24 Monitoring the PLC configured for CC-Link version 2.0.
