Note: It is not necessary to use handshaking mode, it is used in this example for demonstrative purposes
only. The next step is to configure the sub-network.

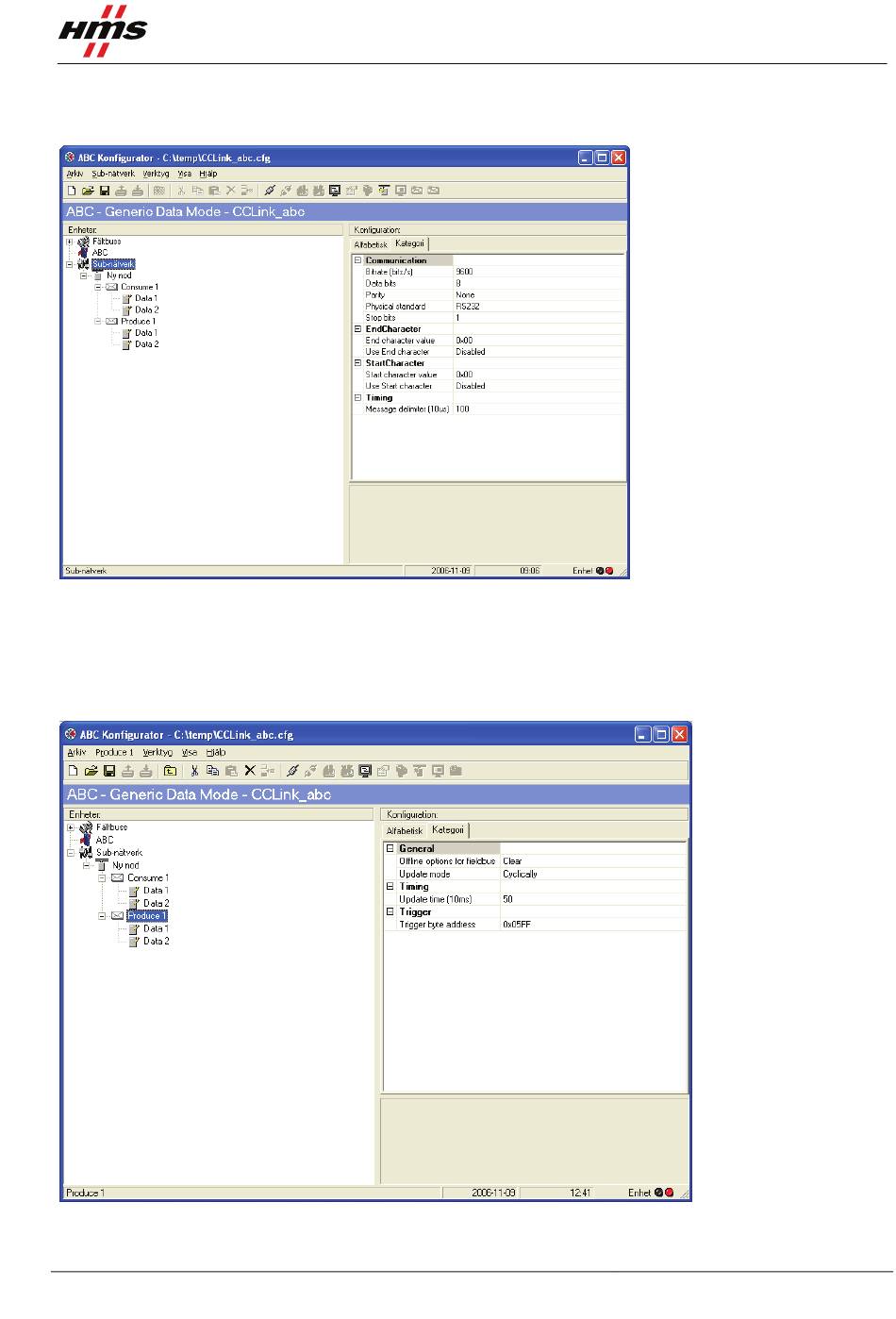

Figure 18 Configuring the sub network.
Right click on new node and add a consume and a produce transaction as shown above. Leave the settings
for the consume transaction at the defaults.
Note: The update time for the produce transaction is to be set to less than the offline timeout time for the
consume transaction; in this case the update time is set to 500ms as shown below.
Figure 19 Configuring the produce transaction.
