Step 1: Check what's in the box
TP-583T HDMI Line Transmitter or
TP-583R HDMI Line Receiver

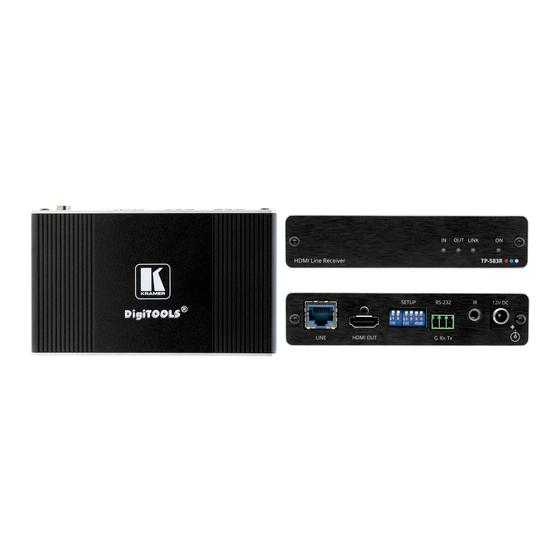

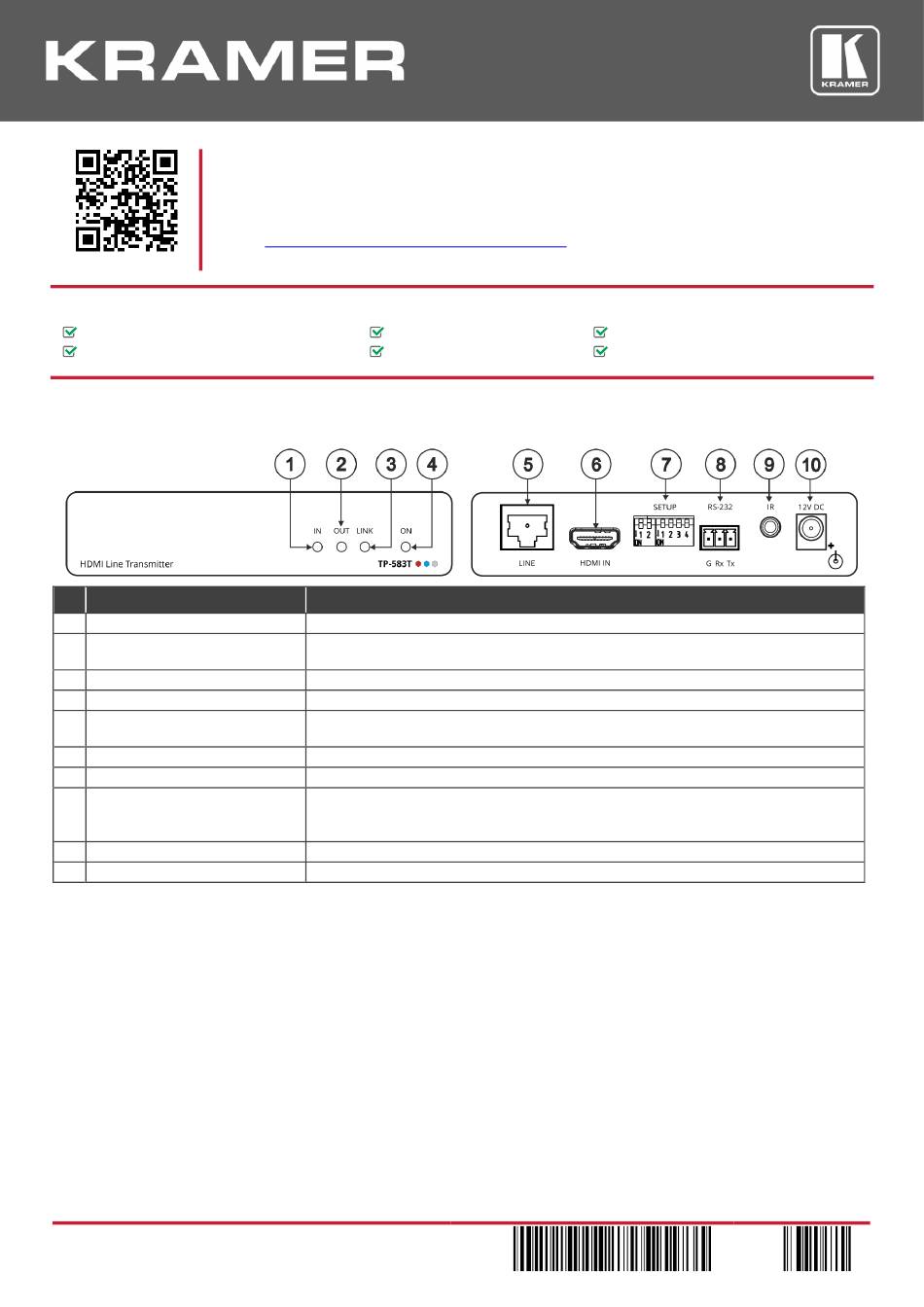

Step 2: Get to know your TP-583T and TP-583R
TP-583T
#
Feature
1
IN LED
2
OUT LED
3
LINK LED
4
ON LED
5
LINE RJ-45 Connector
HDMI™ IN Connector
6
7
SETUP DIP-switches
8
RS-232 (G, Rx, Tx) 3-pin
Terminal Block Connector
9
IR 3.5mm Mini Jack Connector
10
12V DC Power Connector
TP-583T, TP‑583R Quick Start
TP-583T/TP-583R Quick Start Guide
This guide helps you install and use your TP-583T/TP-583R for the first time.
Go to
www.kramerav.com/downloads/TP-583T, TP-583R
firmware upgrades are available.
1 Power adapter and cord
4 Rubber feet
Function
Lights green when an active source device input signal is detected.
Lights green when an active, far-end sink (acceptor) connection is detected via the
HDBT link.
Lights green when an HDBT link is established with the HDBaseT receiver.
Lights green when the device receives power.
Connect to the RJ-45 HDBT LINE connector on a receiver (for example, TP-583R, TP-
780R and so on).
Connect to an HDMI source.
Set the operation DIP-switches.
Connect to a laptop to control the receiver or perform firmware upgrade.
Connect to a controller device (for example, SL-240C) to serially control a remote
device (for example, the HDMI OUT acceptor) that is connected to TP-583R.
Connect to an external infrared emitter / sensor.
12V DC connector for powering the unit.
to download the latest user manual and check if
1 Quick start guide
1 Bracket set
P/N: 2 9 0 0 - 3 0 1 1 5 8 QS
Rev: 2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kramer TP-583T
Summary of Contents for Kramer TP-583T
- Page 1 TP-583T/TP-583R Quick Start Guide This guide helps you install and use your TP-583T/TP-583R for the first time. Go to www.kramerav.com/downloads/TP-583T, TP-583R to download the latest user manual and check if firmware upgrades are available. Scan for full manual Step 1: Check what’s in the box...
- Page 2 Lights green when an HDBT link is established with the HDBaseT transmitter. ON LED Lights green when the device receives power. LINE RJ-45 Connector Connect to the RJ-45 HDBT LINE connector on a transmitter (for example, TP-583T, TP-780T and so on). HDMI® OUT Connector Connect to an HDMI acceptor.
- Page 3 Step 4: Connect the inputs and outputs Always switch OFF the power on each device before connecting it to your TP-583T/TP-583R. For best results, we recommend that you always use Kramer high-performance cables to connect AV equipment to TP-583T/TP-583R. RJ-45 Pinout:...
- Page 4 We recommend that you test which position best suits your application. Step 5: Connect the power Connect the 12V DC power adapter to TP-583T/TP-583R and plug it into the mains electricity. Safety Instructions Caution: There are no operator serviceable parts inside the unit.
