PILOT SPRING OPTIONS

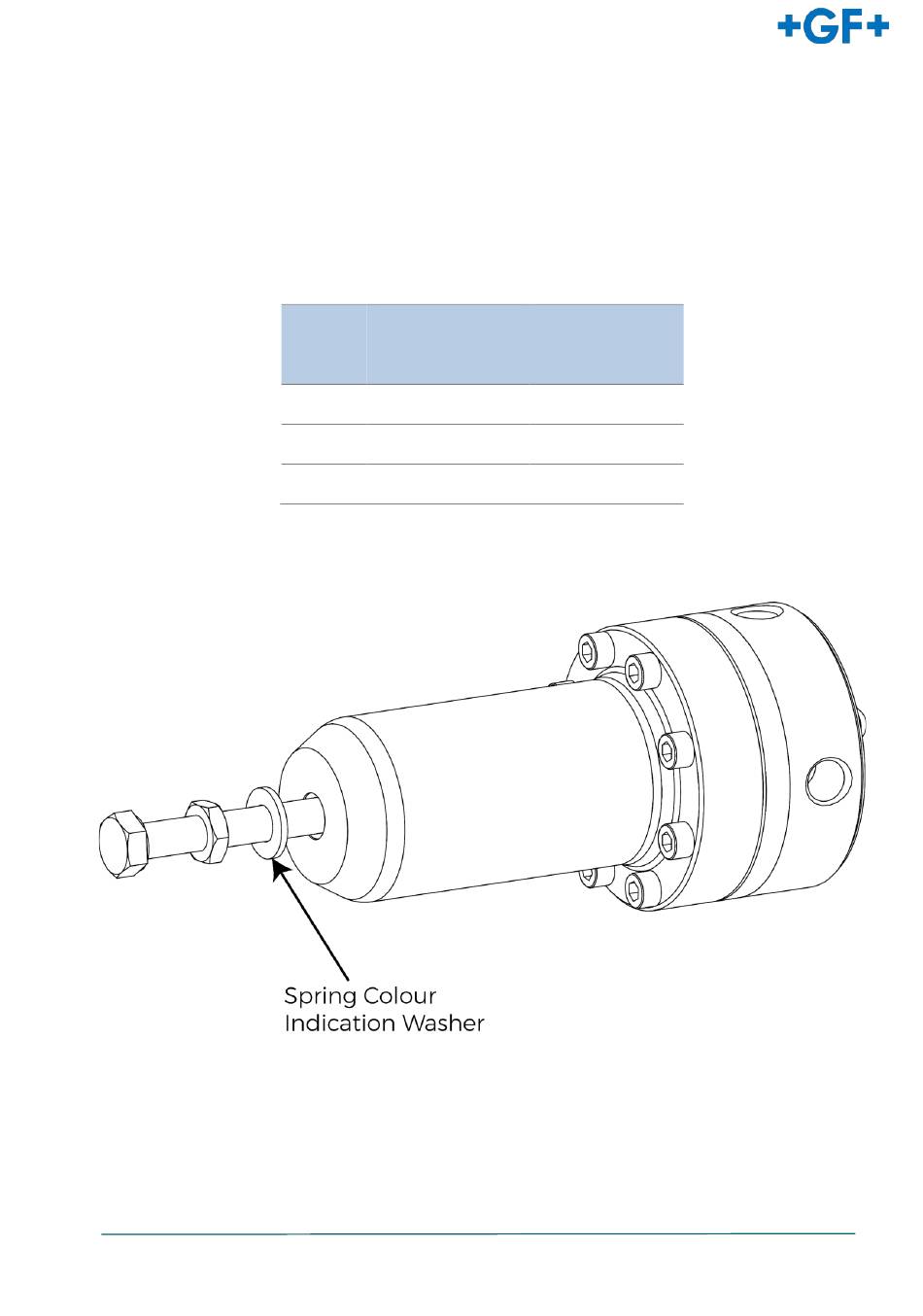

The desired setpoint pressure MUST lie within the pilot spring pressure range. The pilot spring can
be identified from the 'Spring Colour Indication Washer'.
It is recommended that the pilot spring is selected so that the maximum setpoint pressure is near to
the upper limit of its pressure range, e.g. for 7 bar setpoint pressure, a black spring is
recommended.
*Standard
**With locknut removed
Max.
Spring
Downstream
Colour
Pressure (Bar[g])
Black*
8.5
Blue
17
Red
25
Adjustment
sensitivity
(Bar/full turn)
0.43
0.65
1.5
25
