Ltech LT-3600 Quick Start Manual

LT-3600
LED RGB Controller

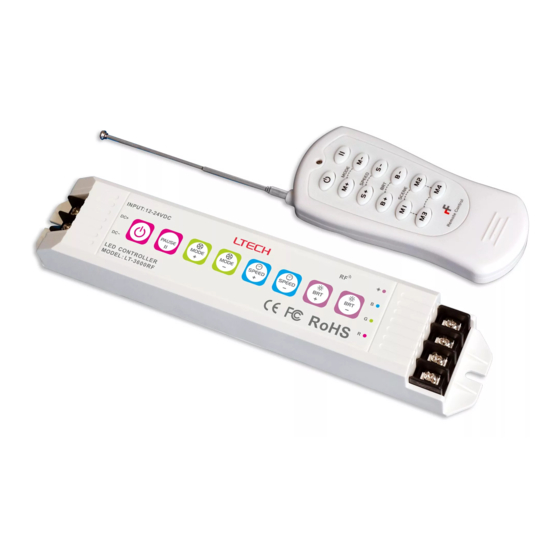

LT-3600 is a multi-functional RGB LED controller, adopts advanced PWM control technique,
built-in 32 modes. Smooth changing effect, without flicker; PC engineering plastic shell, exquisite
appearance; The controller has 8 keys, which are used for choosing ON/OFF, PAUSE, MODE+/-,
SPEED+/-, BRT+/-. It can automatically adapt to 12-24Vdc input, suitable for most conventional
RGB LED products, such as LED strips, LED modules, and all low-power RGB LED lights that
current is limited by resistors can be controlled.
1. Technical Specs:
LT-3600 (Common Anode)
Input Voltage:
12~24Vdc
Max Current Load: 6A × 3CH
Max Output Power:
216W/432W(12V/24V)
Working Temp.: ℃ ℃
-30 -55

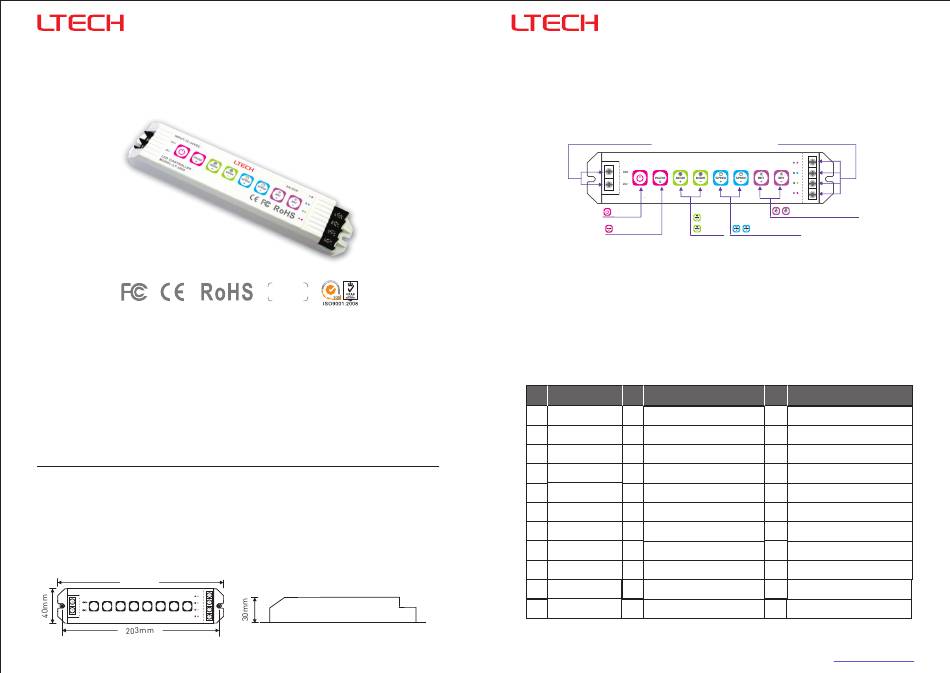

2. Product Size:
211mm
LT-3600 LED RGB Controller
warranty
5 years
Dimensions: L211×W40×H30(mm)
Package Size: L215×W43×H33(mm)
Weight (G.W.): 175g
1
3. Detailed Key Functions：
There are 8 function keys on the controller:
ON/OFF, PAUSE, MODE+, MODE-, SPEED+, SPEED-, BRT+, BRT-
12~24Vdc
Power Input Socket
On/Off
Pause Key
Other Functions:
A. Press PAUSE in 3 seconds, the buzzer can be on or off.
B. Press MODE+ over 3 seconds to auto loop play dynamic modes.
C. Press SPEED+ over 3 seconds , all speed change is restored to default status.
D. Press SPEED- over 3 seconds , the current change is restored to default status.
4. Table of Changing Modes:
No. Modes No.
Static Red
1 12 Red Fade out and Fade in
Static Green Green Fade out and Fade in
2 13
Static Blue
3 14 Blue Fade out and Fade in
4 Static Yellow Yellow Fade out and Fade in
15
5 Static Purple 16 Purple Fade out and Fade in
6
Static Cyan 17 Cyan Fade out and Fade in
Static White 18 White Fade out and Fade in
7
19 RGB Fade out and Fade in
8 RGB Skipping
20 Red Green Color Smooth
7 Colors Skipping
9
10 21 Red Blue Color Smooth
White Strobe
11 22 Green Blue Color Smooth
7 Colors Strobe
Note: Brightness is adjustable for static effect, brightness/speed are adjustable for changing effect.
LT-3600 LED RGB Controller
LED Lamps
Connection Socket
Brightness Keys
Mode
Speed Keys
Keys
Modes No. Modes
Red Yellow Color Smooth
23
24 Green Cyan Color Smooth
25 Blue Purple Color Smooth
26 Green Yellow Color Smooth
27
Blue Cyan Color Smooth
28 Red Purple Color Smooth
29 Blue White Color Smooth
30 Yellow Purple Cyan Color Smooth
31
RGB Color Smooth
32
Full-color Smooth
2
www.ltech-led.com
