Ltech LT-3600RF Manual

LTECH
LT-3600RF
LED RGB Controller
ISO9001:2008

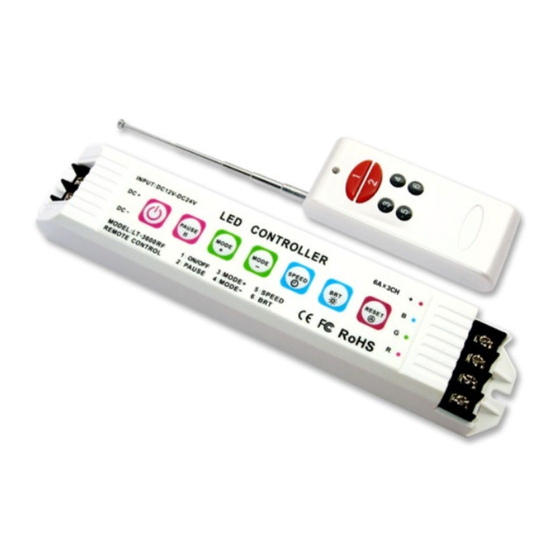

LT-3600RF multi functional LED controller is a universal RGB controller with
high-performance, adopted the most advanced PWM control technology. It's
dedicated to control overall RGB color changes of LED lights with 4-pin wires
(common anode), such as RGB LED module, LED strip, LED tape, and other
LED lights.
This controller can work with Power Repeater to expand the power output,
realizing infinite power expansion to connect any quantity of LED lights.
1. Technical Specs
LT-3600RF (Common Anode)
Power supply chosen
Input voltage
Max current load
Max output power
Grey scale
Remote controlling distance
Working temperature
Dimension
Package Size
Weight (G.W)
ZHUHAI LTECH ELECTRONIC TECHNOLOGY CO., LTD.
LT-3600RF LED RGB Controller Manual
RoHS
warranty
3 years
COMPLIANT
DC CV SMPS
DC12V～DC24V
6A/CH 3CH × Max 18A
216W/432W(12V/24V)
256 levels per RGB
50m with obstacles; 100m without obstacles
℃ ℃
-30 -55
L211×W40×H30(mm)
L293×W43×H33(mm)
210g
1
Tel: +86 756 620 8823
LTECH

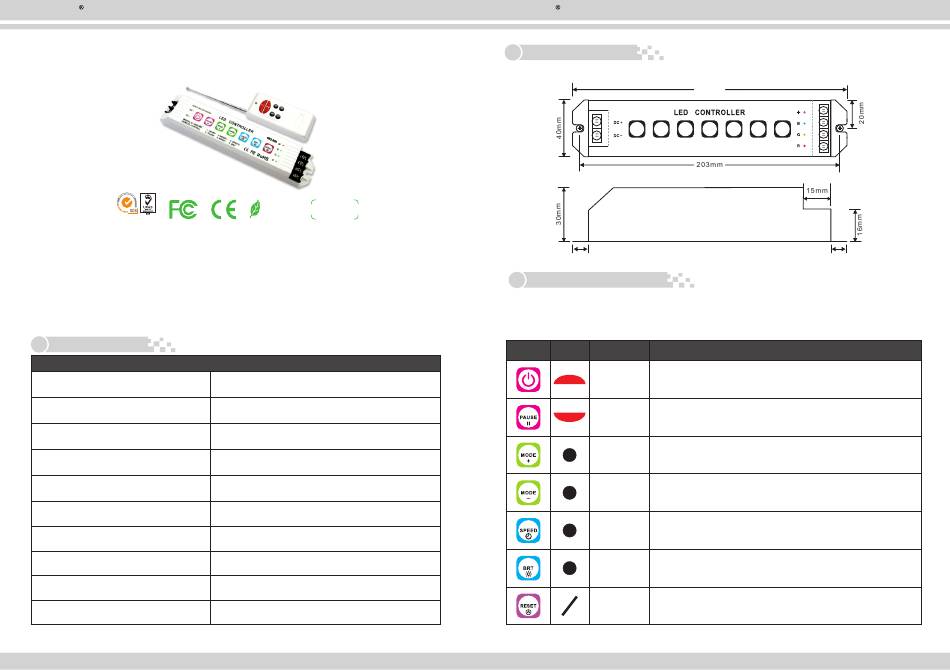

2. Product dimension
10mm
3. Operating instructions
The controller, there are 7 function keys:
ON/OFF、PAUSE、MODE+、MODE-、SPEED、BRT、RESET
the first 6 buttons correspond to Buton1,2,3,4,5,6 in the remote controller.
Sign
RF Button
ON/OFF ON/OFF: Turn on/off the controller
1
Pause: Press this button to rest at current color,
PAUSE
2
MODE+
3
Mode+: Press this button to select next mode
MODE-
4
Mode-: Press this button to return previous mode
Speed: Press this button to select 1-8 speed changing levels.
SPEED
5
Brightness: Press this button to select 1-8 brightness
BRT
6
Reset: Press it for a second, enter Cycle mode; Press this
RESET
Fax: +86 756 620 8833
LT@LTECHONLINE.COM
LT-3600RF LED RGB Controller Manual
211mm
10mm
Description
press it again, it will continue to change.
adjustment levels.
button over 3 seconds, if LED flickers twice, it
means it has restored to Default status successfully.
2
