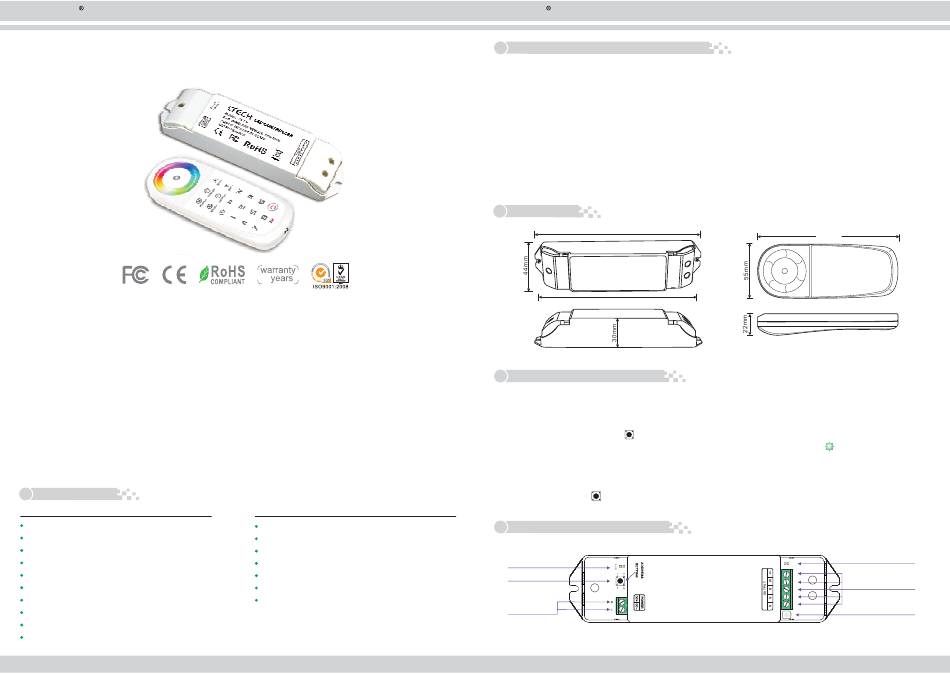

Ltech T4 Manual

LTECH
2.4G LED RGBW Controller
T4 is the 2.4GHz RF wireless sync/zone RGBW controller which adopts LTECH 4 global initiate technology 2 invention
patents, 2 utility patents). It has powerful function that general RF remote control can't realize, especially in wireless
connection between receivers to realize sync dynamic change effect. It is very convenient in installation for users. T4 is
aggregated all the functions in the favored by customers RGB remote T3/T3M/T3X, but simple easy to use.
Performance Features:
.
1 Adopt 2.4GHZ RF wireless transmission technology, which is applicable for license and patent free worldwide.
.
2 Advanced RF wireless sync control technology, no sync signal wire between receivers, sync capability is stable and reliable.
.
3 Remote adopts the capacitive touch control technology on the full color wheel, make the LED color selection more user-
friendly.
4. With the latest DIY program method, editing effects is easier and more intuitive.
5. Build-in sync state light, can display the LED color in static or changing state synchronously.
6. Sync and zone switch freely.
7. Unmanned operation more than 1 min on the remote, the remote will automatically shut down to realize zero loss,
extending operation life for the battery.
8. USB charging port.
1. Technical Specs:
T4 Remote
Input Voltage: DC5V Built-in Lithium Battery
Working Current: 30mA <
Working Frequency: 2.4GHZ
RF Remote Distance: 30m
Remote Option: Sync/Zone Control
Grey Scale Level: 1024 x 1024 x 1024
Battery Capacity: 1000mAh
Dimensions: L145×W55×H22(mm)
Package Size: L168×W102×H28(mm)
Weight (G.W.): 200g
ZHUHAI LTECH ELECTRONIC TECHNOLOGY CO., LTD.
T4 LED RGBW Controller Manual
T4
T4-CV
T4
5
T4-CV Receiver
～
Input Voltage: DC5V DC24V
Max Current Load: 5A × 4CH Max 20A
Max Output Power: 100W/240W/360W(5V/12V/24V)
℃ ～ ℃
Working Temperature: -30 55
Dimensions: L175×W44×H30(mm)
Package Size: L178×W48×H33(mm)
Weight (G.W.): 110g
1
WWW.LTECHONLINE.COM
LTECH
2. The Charging Methods for Remote Control:
1. When charging, please connect USB cable to the mobile charger or computer.
2. The blue indicator light flickers while charging, and turns green means the charging is completed. The remote can be
chargeable even at the OFF state, on which the indicator light is dark.
3. No memory effect in the lithium battery of remote. Follow the standard charging procedure even for the first three times,
no need over charge.
4. Red indicator light flickers meaning low battery and need to be charged. charging in low battery will affect life of
battery.
5. the remote should be full charged and stored under low cold drying while a long time without being operated. And please
full recharge every 3 months.
3. Product Size:
(
4. The Learning ID Method of Remote:
Learning ID:
1. Turn on the receiver and remote.
"
2. Short press ID learning button
on the remote, the running light returns to flash (the buzzer long sounds, the green light
successful.
Cancelling ID:
Press "ID learning button"
6. Receiver Components Description:
Running Light
ID Learning Button
~
DC5V 24V
Power
Input Socket
Tel: +86 756 620 8823
T4 LED RGBW Controller Manual
175mm
170mm
" ,
on the receiver the running light keeps on, then long press 1-8 zone-selection keys
on the receiver more than 8 seconds, the buzzer sound twice, delete all the learned remote.
LED CONTROLLER
T4-CV
2
Fax: +86 756 620 8833
145mm
flashes 3 times), activated
The White Light
LED Lamp
Connected Socket
The RGB Light
LT@LTECHONLINE.COM
