LT-3600RF LED RGB Controller Manual
5 . Conjunction diagram, working with 3060 power amplifier
（Connected to LED module as an example）
PO WE R DC 12 V
S UP PLY
AC DC
L N
DC 12 V
in-phase cable
LE D CO NT RO LL ER
MO DE L : LT-30 60
PO WE R RE PE ATER
DC 5V -D C2 4V
5A×3 CH
LE D CO NT RO LL ER
MO DE L : LT-30 60
PO WE R RE PE ATER
DC 5V -D C2 4V
5A×3 CH
6. Attention:
1. Th is pr od uc t is no n- wa ter pr oo f, pl ea se av oi d the sun an d rai n. Pu t it in a wa ter pr oo f
box if install outdoor.
2. The condition of radiation will affect the working life of controller, please install
the product in a good radiation condition.
3. Pl ease check if the output voltage of the LED powe r supply comp ly wi th the voltage
range of the product.
4. This product is a high current device, please ensure a solid connection in order
to avoid poor contact to damage parts and trigger fires.
5. Ensure all wire connection are correct before power debugging, which is to avoid
lamps to be burnt because of wrong connection.
6. Al l the swi tch ing po wer su pp ly must be wel l gr ou nd ed , so as no t to affec t the wor ki ng
life of LED.
7. Please do not maintain it by yourself if any fault, please contact your supplier if
any question.
7. Af ter-sale se rvice:
This product is 2 years free warranty, lifelong technical maintenance. The warranty
excl udes improper connecti on to pow er suppl y, overl oad work ing, et c. Hum an dam ages
and force majeure factors.
Repair or replacement as provided under this warranty is the exclusive remedy
of the customer. We shall not be liable for any incidental or consequential damages
for breach of any stipulation in this warranty.
For the sake of the convenience to repair,please don't tear up or obliterate
the label on product.
This manual is only apply to this model, any update is subject to change without
prior notice.
R G B V
B B B B
B B B B
B B B B
B B B B
B B B B
DC 12 V
AC 22 0V 110 V
B B B B
B B B B
B B B B
B B B B
DC 12 V
AC 22 0V 110 V
B B B B
B B B B
B B B B
4

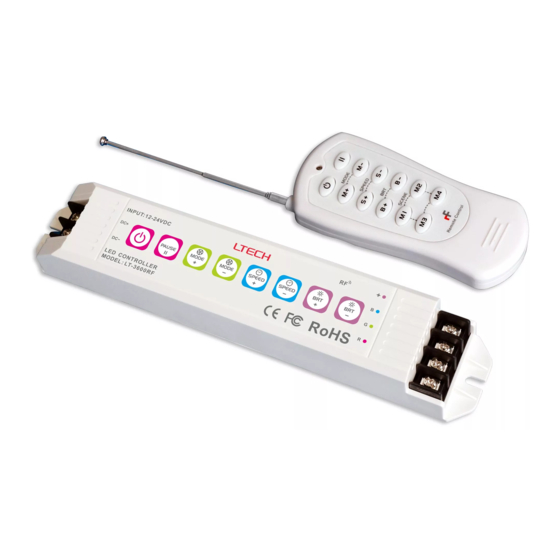

LT-3600RF
LED RGB Controller
LT-3600RF multi functional LED controller is a universal RGB controller with
high-performance, adopted the most advanced PWM control technology. It's
dedicated to control overall RGB color changes of LED lights with 4-pin wires
(common anode), such as RGB LED module, LED strip, LED tape, and other
LED lights.
This controller can work with Power Repeater to expand the power output,
realizing infinite power expansion to connect any quantity of LED lights.
1. Technical Specs
LT-3600RF (Common Anode)
Power supply chosen
Input voltage
Max current load
Max output power
Scale levels
Remote controlling distance
Working temperature
Dimension
Package Size
Weight (G.W)
LT-3600RF LED RGB Controller Manual
RoHS
warranty
2 years
COMPLIANT
DC CV SMPS
DC12V～DC24V
6A/CH 3CH 18A Max ×
220W/450W(12V/24V)
256 steps per RGB
Credible 50m
℃ ℃
-30 -55
L211×W40×H30(mm)
L293×W43×H33(mm)
210g
