Ltech LT-3600RF Manual

LT-3600RF
LED RGB Controller
ISO9001:2008

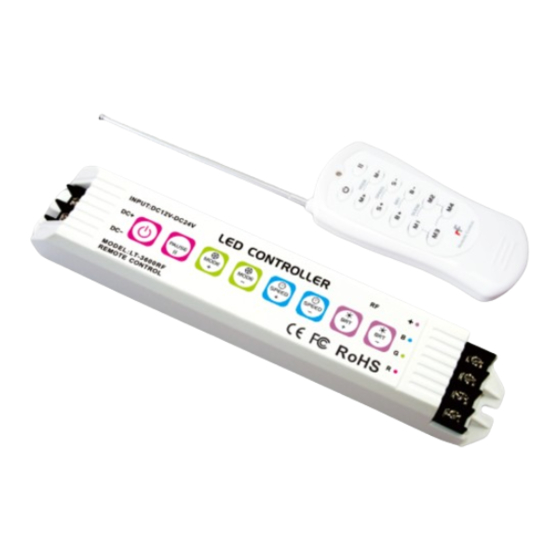

LT-3600 RF is a multi-functional RGB LED controller, adopts advanced PWM(Pluse-Width
Modulation)control technique, built-in 16 modes. Smooth changing effect,without flicker;
With unique touch technique,the controller has 8 touch buttons,which are used for choosing
ON/OFF,PAUSE,MODE+/-,SPEED+/-, BRT+/-,Also can use RF wireless remote for long-
distance control.The controller has ID learning function,which suitable for the remote
control with same model but different coded address.It can automatically adapt to DC12-24V
input,suitable for most conventional RGB LED products,such as LED strips, LED modules,etc.
and all low-power RGB LED lights whose current is limited by resistors can be controlled.

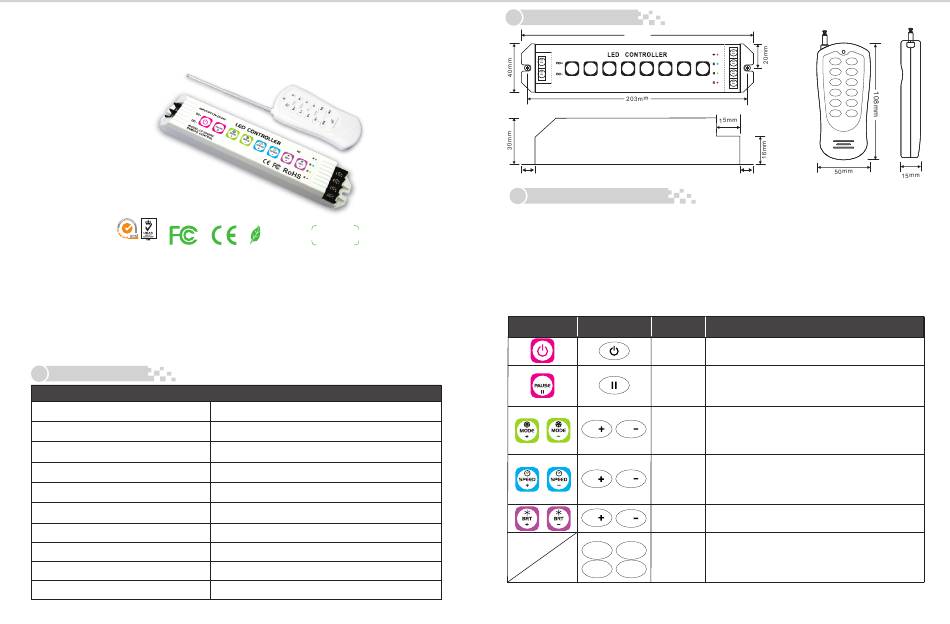

1. Technical Specs
LT-3600RF (Common Anode)
Power supply chosen
Input voltage
Max current load
Max output power
Grey scale
Remote controlling distance
Working temperature
Dimension
Package Size
Weight (G.W)
RoHS
warranty
3 years
COMPLIANT
DC CV SMPS
DC12V～DC24V
6A/CH 3CH ×
216W/432W(12V/24V)
1024×1024×1024
100m
℃ ℃
-30 -55
L211×W40×H30(mm)
L313×W50×H32(mm)
230g
1
2. Product dimension
211mm
10mm
3. Detailed key functions：
There are 8 touching function buttons on the controller, the 8 keys on the controller correspond to the
first 8 keys on the remote control: ON/OFF, PAUSE, MODE+, MODE-, SPEED+, SPEED-, BRT+, BRT-
Remote control study method:
Learning ID: Press ON/OFF over 3 seconds , controller RF green i
the address coding state, press any key to a remote control, green i
meaning the remote control and controller has already been activated in control.
Delete ID: Press ON/OFF over 5 seconds ,controller RF green i
this time to press the remote control any key and green i
meaning the remote control and controller has been cancelled controlled relationship.
Sign RF
Button
ON/OFF
PAUSE
MODE+
M M
MODE-
SPEED+
S S
SPEED-
BRT+
B B
BRT-
M1 M2
4 DIY
keys
M3 M4
Note:
Press "MODE-" key for 3 seconds ,merely play the dynamic effects. If the DIY modes
save the static effects, that will be skipped.
10mm
ndicator lights is on , right now into
ndicator lights is off
ndicator lights is on and then off
ndicator lights flashing a few fast,
Description
ON/OFF key: Close or open controller
(ON or OFF LED lamps)
Pause: Press this button to rest at current color,
press it again, it will continue to change.
Other function: Press in 3 seconds, the buzzer can
be on or off.
Press the keys to select the change modes.
Press MODE+ over 3 seconds to enter cycle mode
automatically.
Press MODE- over 3 seconds to enter DIY cycle
mode automatically.
Press the keys to quicken or slower speed.
Press SPEED+ over 3 seconds , all speed change
is restored to Default status.
Press SPEED- over 3 seconds , the current change
is restored to Default status.
Press the keys to increase or decrease brightness.
If keep pressing, the brightness will change continually.
Press the keys for 3 seconds, the controller will save
the present function mode automatically, which can
save 4 modes and save repeately as well.
Press "Mode-" in 3 seconds, the controller will play
these 4 DIY modes automatically.
2
,
,
