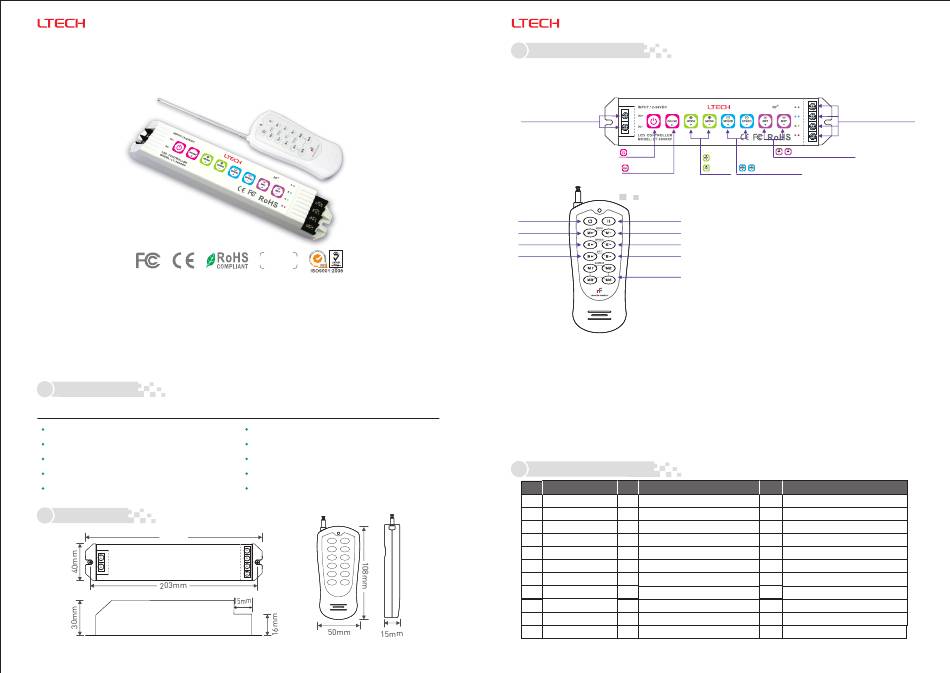

Ltech LT-3600RF Quick Start Manual

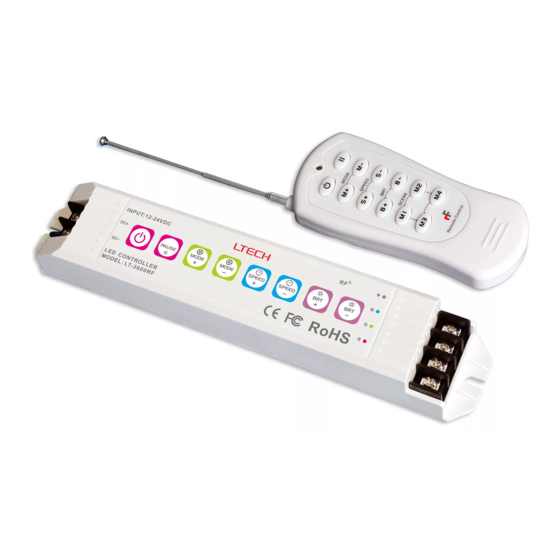

LT-3600RF
LED RGB Controller
LT-3600RF is a multi-functional RGB LED controller, use the advanced PWM (Pu se-Width
Modulation) control technique, built-in 32 kinds of changing mode. Smooth changing effect
without flicker; PC engineering plastic shell, exquisite appearance. The receiver has 8 keys,
which are used for namely ON/OFF, PAUSE, MODE+/-, SPEED+/-, BRT+/-, compatible with RF
remote (100m control distance). 12~24V DC wide voltage input, 3CH output (common anode),
widely used for all kinds of LEDs with current-limiting resistor, like RGB LED modules, LED
strips, SMD and so on.
1. Technical Specs:
LT-3600RF (Common Anode)
Input Voltage: 12～24V DC
Max Current Load: 6A × 3CH
Max Output Power: 216W/432W(12V/24V)
RF Remote Distance: 100m
Radio Frequency: 433.92MHz
2. Product Size:
211mm
Receiver
LT-3600RF LED RGB Controller
warranty
5 years
l
Remote Output Power: 8mW
℃ ℃
Working Temp.: -30 ~ 55
Dimensions: L211×W40×H30(mm)
Package Size: L313×W50×H32(mm)
Weight (G.W.): 240g
RF Remote Control
1
3. Detailed Key Functions：
8 function keys on the receiver, which is corresponding to the first 8 buttons on the RF remote:
namely ON/OFF, PAUSE, MODE+, MODE-, SPEED+, SPEED-, BRT+, BRT-.
12~24V DC
Power Input Socket
On/Off
Pause Key
On/Off Pause
Mode-
Mode+
Speed+ Speed-
Brightness+
Brightness-
4 Scene-mode
Keys
(Press 3s and save)
ID Learning Method:
Learning ID:
Press "On/Off" key on the receiver for 3s, the buzzer long beep and the green light
will be on, release the key, press any button on the remote, when the green light
turns off means activated.
Cancelling ID: Press "On/Off" key on the receiver for 5s, the buzzer long beep, the green light
will be on and flash once, meanwhile press any button on the remote, when the
green light flashes several times means ID cancelled (do not release the "On/Off"
key during the process).
4. Table of Changing Modes
No. Modes No. Modes
1 Static Red 12 Red Fade out and Fade in
2 Static Green Green Fade out and Fade in
13
3 Static Blue 14 Blue Fade out and Fade in
4 Static Yellow 15 Yellow Fade out and Fade in
5 Static Purple 16 Purple Fade out and Fade in
6 Cyan Fade out and Fade in
Static Cyan 17
7 White Fade out and Fade in
Static White 18
8 RGB Fade out and Fade in
RGB Skipping 19
9
7 Colors Skipping 20 Red Green Color Smooth
10
White Strobe 21 Red Blue Color Smooth
11
7 Colors Strobe 22 Green Blue Color Smooth
Note: Brightness is adjustable for static effect, brightness/speed are adjustable for changing effect.
LT-3600RF LED RGB Controller
LED Lamps
Connection Socket
Brightness Keys
Mode
Speed Keys
Keys
Other Functions:
A. Press PAUSE in 3s, the buzzer can be on or off.
B. Press MODE+ for 3s to auto loop play all the modes.
C. Press MODE- for 3s to 4 scene modes. merely play
the changing modes, the static color will be skipped.
D. Press SPEED+ for 3s, all speed change is restored
to default status.
E. Press SPEED- for 3s, the current change is restored
to default status.
Modes
No.
23 Red Yellow Color Smooth
24 Green Cyan Color Smooth
25 Blue purple Color Smooth
26 Green Yellow Color Smooth
27 Blue Cyan Color Smooth
28 Red Purple Color Smooth
29 Blue White Color Smooth
30
Yellow Purple Cyan Color Smooth
31
RGB Color Smooth
32
Full-color Smooth
2
