LT-3800-5A LED RGB Controller Manual

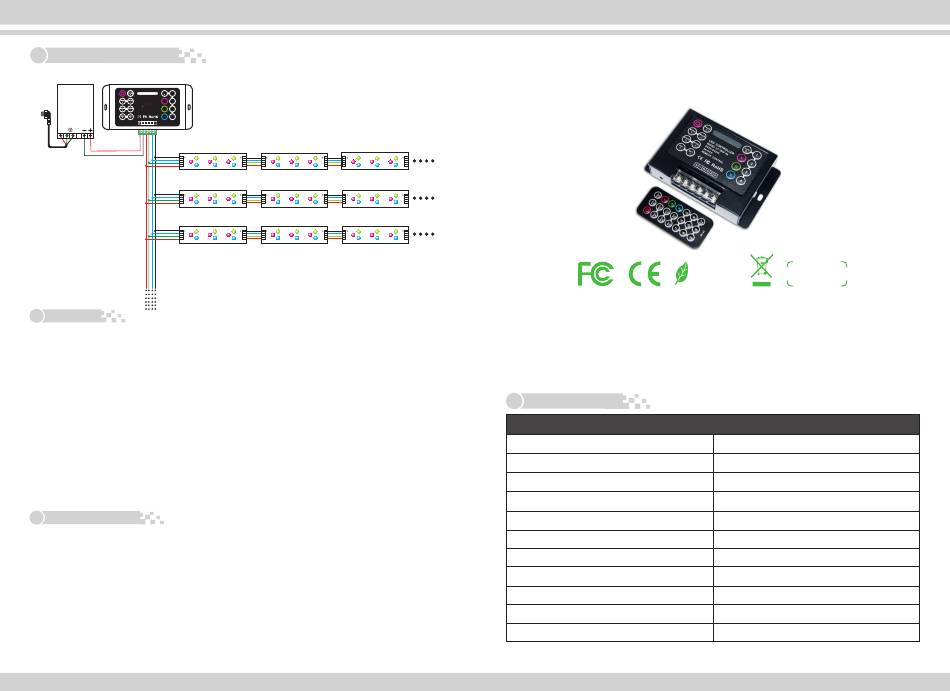

5. Conjunction diagram
LED CONTROLLER
PLAY 1
POWER
LED CONTROLLER R 2
MODEL: LT 3800 5A
DC5V DC24V
3A×3 CH G 3
REMOTE C ONTROL
4
B
DC R G B V
AC
L N
LED MODULE
B
G
R
LED MODULE
B
G
R
LED MODULE
B
G
R
6. Attention:
1. Thi s pr od uc t is no n- wat er pr oo f, pl ea se av oi d the su n an d rai n. Put it in a wat er pr oo f
box if install outdoor.
2. The condition of radiation will affect the working life of controller, please install
the product in a good radiation condition.
3. Pl ea se ch ec k if the ou tpu t vo ltag e of the LE D po wer su pp ly co mpl y wi th the vo ltag e
range of the product.
4. This product is a high current device, please ensure a solid connection in order
to avoid poor contact to damage parts and trigger fires.
5. Ensure al l wire co nnection ar e co rrect before po wer debugging, which is to av oid
lamps to be burnt because of wrong connection.
6. Al l the swi tchi ng power supp ly must be wel l gr ounde d, so as not to aff ect the work ing
life of LED.
7. Please do not maintain it by yourself if any fault, please contact your supplier if
any question.
7. After-sale service:
This product is 2 years free warranty, lifelong technical maintenance. The warranty
excludes improper conn ecti on to pow er supp ly, overl oad worki ng, etc. Human dam age s
and force majeure factors.
Repair or replacement as provided under this warranty is the exclusive remedy
of the customer. We shall not be liable for any incidental or consequential damages
for breach of any stipulation in this warranty.
For the sake of the convenience to repair,please don't tear up or obliterate
the label on product.
This manual is only apply to this model, any update is subject to change without
prior notice.
B B B B B
G G G G G
R R R R R
B B B B B
G G G G G
R R R R R
B B B B B
G G G G G
R R R R R
4
LT-3800-5A
LED RGB Controller

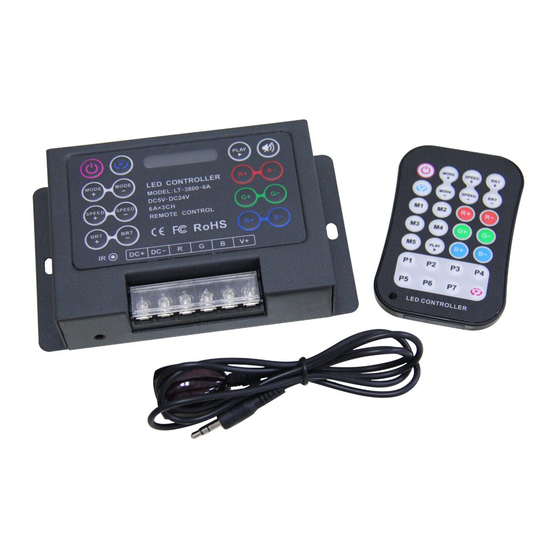

LT-3800-5A RGB controller is a unique DIY version as well as a powerful
combination that can control color changes of LED lights with 4-pin 3- channels
(Common anode), built-in 18 modes with touch functional buttons,provided
with IR wireless remote control panel, users can control color changes of LED
light by pressing the button on the controller or on the remote control panel,
very users friendly.
1. Technical Specs
LT-3800-5A Constant voltage controller
Power supply chosen
Input voltage
Max load current
Max load power
Changing mode
Scale level
Static dimming
Working temperature
Dimension
Package Size
Weight (G.W)
LT-3800-5A LED RGB Controller Manual
RoHS
warranty
2 years
COMPLIANT
DC CV SMPS
DC5V～DC24V
5A/CH 3CH 9A Max ×
75W/180W/ 360W(5V/12V/24V)
18modes
256 steps per RGB
mixing up 4096 colors
℃ ℃
-30 -65
L142×W73×H30mm
L145×W88×H46mm
350g
