Installing A Netwayxt/Netwayxtx Repeater Module; Port Led Definitions For Netwayxt And Netwayxtx Repeaters - Altronix NetWay8GL Installation Manual

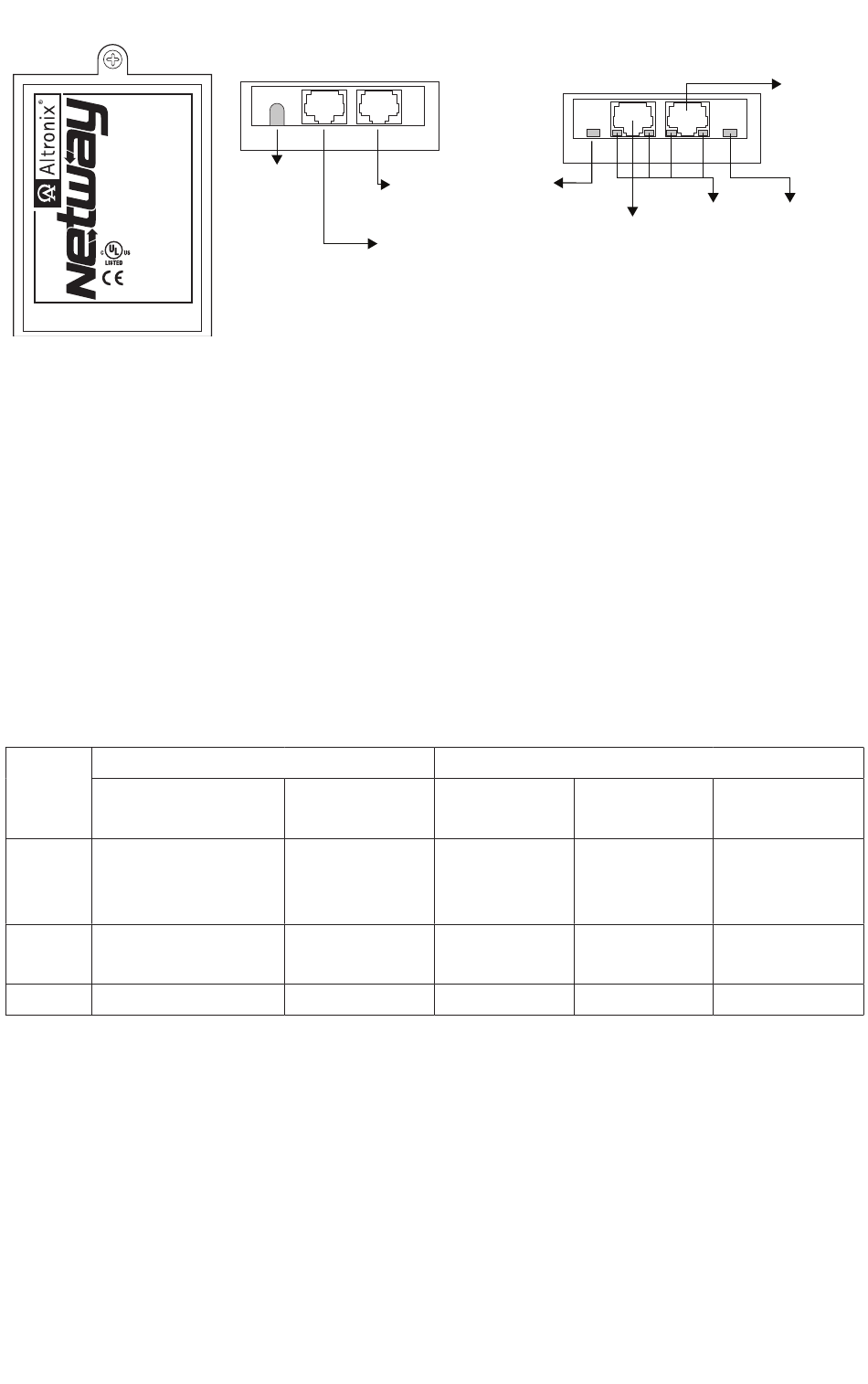

Fig. 3 - NetWayXT/NetWayXTX
Brooklyn, NY, U.S.A.
NetwayXT
Repeater
I.T.E. 43KC
www.altronix.com
Power OUT
IN
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
NetWayXT and NetWayXTX will work if the Midspan is set for 15W or 30W, but not 60W.
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

Installing a NetWayXT/NetWayXTX Repeater Module:

NetWayXT will work only with PoE devices. NetWayXTX will work with PoE/PoE+ devices.
1. Mount NetWayXT/NetWayXTX in desired location utilizing the mounting hole (Fig. 3, pg. 5).
Use a proper fastener and/or wall anchor when securing NetWayXT/NetWayXTX to the wall.
2. Connect structured cable from port marked [OUT] on NetWay8GL to port marked [IN] on the
NetWayXT/NetWayXTX (Fig. 3, pg. 5).
3. Connect structured cable from port marked [OUT] on NetWayXT/NetWayXTX to the
edge device or next NetWayXT/NetWayXTX repeater (Fig. 3, pg. 5).
4. Port status LEDs will illuminate on NetWayXT/NetWayXTX indicating the port is operational
(refer to LED Definitions, pg. 5).
5. Power LED will illuminate indicating 12VDC output.

Port LED Definitions for NetWayXT and NetWayXTX Repeaters:

Status
Green LED
Indicates it is
OFF
connected as 10Base-T
or no link.
Indicates it is connected
ON
as 100Base-TX.
Blinking
NetWay8GL Installation Guide
NetWayXT
Power
LED
NetWayXT
Yellow LED
Indicates no link.
Indicates a link.
– Indicates activity.
Structured
PoE/PoE+
Cable from
Output
NetWayG
LED
Structured Cable
to PoE IP Camera/
Edge Device
or next
NetWayXT
PoE/PoE+
Output LED
No PoE/PoE+
Output
Normal PoE/PoE+
Output
–
NetWayXTX
Port Status
Structured
LEDs
Cable to
PoE/PoE+
IP Camera/Device or
next NetWayXTX
PoE/PoE+ camera/
NetWayXTX
PoE/PoE+
Input LED
No PoE/PoE+
Indicates no link.
Input
PoE/PoE+ Input Indicates a link.
– Indicates activity.
Structured
Cable from
NetWayG
PoE/PoE+
Input
LED
Yellow LED
- 5 -
