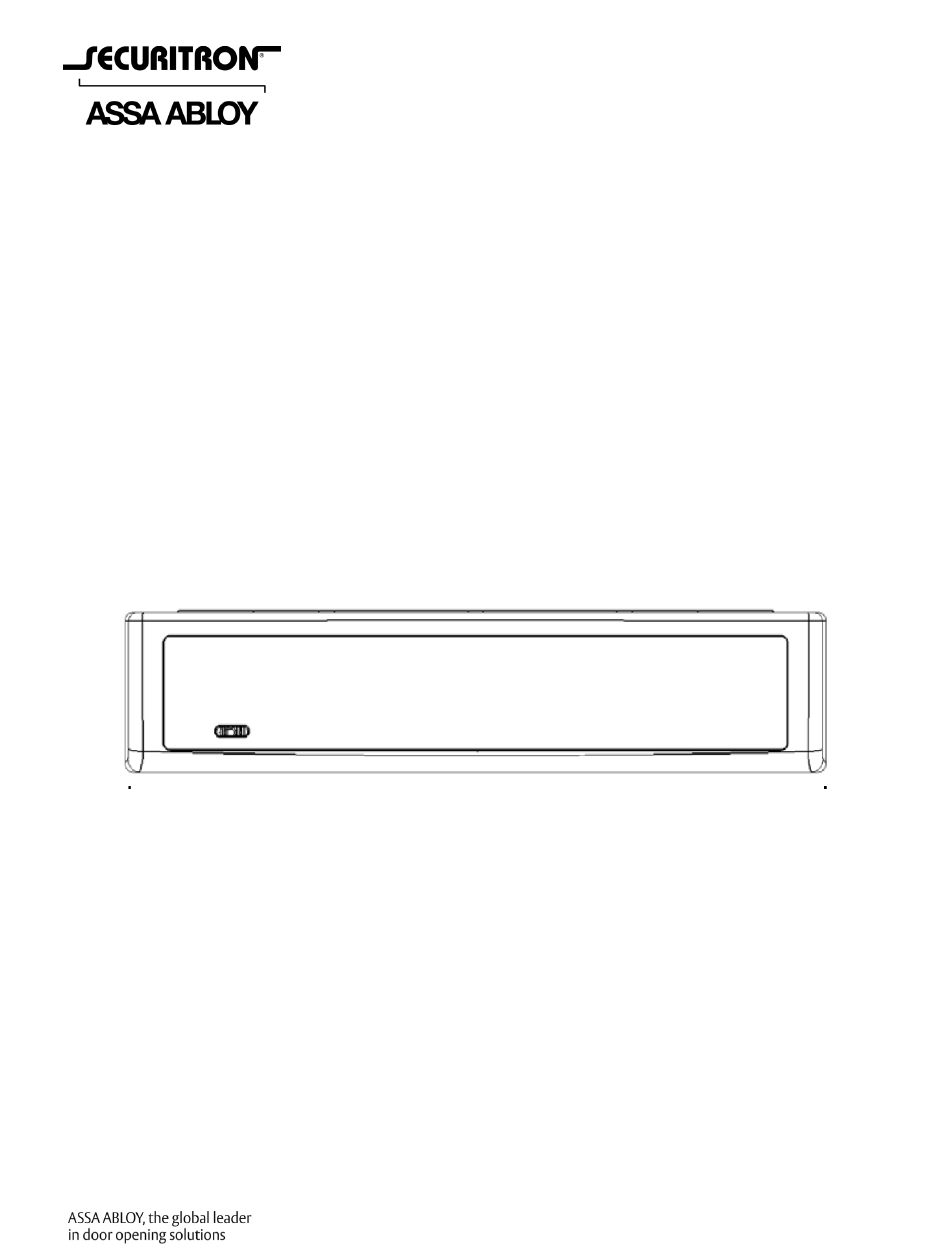

- Page 1 Securitron www.securitron.com Tel 800.624.5625 techsupport@securitron.com ® M670/M680BD MAGNALOCK SERIES Installation Instructions PN# 500-10550 Page 1 Rev. D, 12/14...
-
Page 2: Table Of Contents
Table of Contents Package Contents ............................3 Mounting Hardware ............................3 Recommended Tools ............................ 3 M670 / M680BD Specifications ........................4 Performing a Pre-Installation Survey ......................4 Preparing the Magnalock ..........................4 Locating and Setting the Components in the M670 and M680BD ..............5 Documenting the Configuration Settings ...................... -
Page 3: Package Contents
Package Contents M670/M680BD Strike Plate Template Sex Bolt Mounting Bracket Mounting Hardware End caps provided for Model M680 only. Mounting Hardware (4) x #12 x 1-1/2” (2) x 1/4-20 Blind Nut (2) x 1/4-20 x 1” (2) x Bracket (1) x – Blind Nut Type A Phillips Pan Head Phillips Pan Head Spacer... -
Page 4: M670 / M680Bd Specifications
M670 / M680BD Specifications Environmental Mechanical Electrical (Recommended) Physical Size: Input Voltage: Operating Temperature 12/24 VDC 32ºF to 110ºF [0ºC to 43ºC] Height: 2.20” [56mm] Current Humidity Depth: 2.45” [62mm] 10% to 90% RH M670 Length: 10.00” [254mm] 12 VDC/500 mA (±10%) Shipped Weight: 24 VDC/275 mA (±10%) Weight: 6 lb... -
Page 5: Locating And Setting The Components In The M670 And M680Bd
Figure 1. Removing the Cover Screws Locating and Setting the Components in the M670 and M680BD 1. LOCATE and SET the components in the M670 and M680BD using Figure 2, “M670 SW3 and J1 Locations,” Figure 3, “M680BD SW3, JP3, JP4, and J1 Locations,” and Table 1, “Component Label, Name, Selection, and Position.”... - Page 6 Table 1. Component Label, Name, Selection, and Position Component Label Component Name Selection Position DIP Switch SW3.1: LED Enable ON = LED ENABLED Position 1 ON (default) Position 1 setting of the DIP switch enables or disables the display OFF = LED DISABLED of the LED for lock Position 1 OFF (M670 has a...
- Page 7 Component Label Component Name Selection Position Jumper 4: Door Position (NC) Normally Closed (available on Mode Select Circuit Closed when Door M680 models A 3-pin jumper that is Closed (default setting) only) controls the output setting for the Door Position Switch (DPS) (NO) Normally Open in Terminal Block J1 Circuit Open when Door is...
-
Page 8: Documenting The Configuration Settings
Documenting the Configuration Settings NOTE: The Board Settings are now complete. 1. COPY the settings onto the adhesive-backed circuit board settings label enclosed with the mounting hardware packet. (See Figure 4, “M670/M680 Settings”). Figure 4. M670/M680 Settings NOTE 1: The figure above shows the Default settings. Settings may vary based on checklist. NOTE 2: The settings information is required if the Magnalock needs to be inspected, serviced, or replaced. -
Page 9: Installing The Magnalock
Installing the Magnalock 1. REMOVE the two (2) screws securing lock to mounting bracket and SLIDE the bracket from the top of the lock chassis. 2. PINCH and INSERT spacers flush into the dovetail slots of the lock-mounting bracket. PN# 500-10550 Page 9 Rev. - Page 10 3. PERFORM the following to mark the mounting holes. a. PROTECT the door and frame surfaces from any possible damage during marking and drilling by using masking tape. b. PLACE the lock bracket on the secure side of the door against the frame stop, towards the side of the door that does not have hinges, and has a minimum of 7/8”...
- Page 11 NOTE: Steps 7 through 10c are performed if installing on a metal door frame. 7. DRILL two (2) 3/8” diameter holes at bracket-mounting hole marks. 8. DO NOT oversize the hole. 9. USE a step bit or pilot hole first to ensure a snug fit for the blind nuts. 3/8”...
- Page 12 11. DRILL two (2) 3/16” diameter mounting holes by 1-1/4” deep at bracket-mounting hole marks. 12. DRILL wire access holes (1/2” recommended), as needed, on one or both sides of the bracket. PN# 500-10550 Page 12 Rev. D, 12/14...
-
Page 13: Installing The Strike
13. Temporarily INSTALL the bracket with spacers against the closed door using a Phillips screwdriver. NOTE: Step 13a applies to metal frames. a. USE two (2) 1/4-20 X 1” Phillips Pan Head Screws and APPLY included thread lock to screw threads. - Page 14 From INSIDE the door: 4. DRILL one (1) 3/8” diameter hole for the sex bolt through the door at the strike mounting center mark. 5. DRILL two (2) 3/8” diameter x 1” deep holes at each side mark for the strike alignment roll pins, but DO NOT DRILL through the door.
-
Page 15: Assembling The Lock To The Bracket And Adjusting, As Necessary
9. PERFORM the following to secure strike plate to the door. a. APPLY the included thread lock compound to 5/16-18 X 1-3/4” flat head socket screw. b. INSERT the 5/16-18 X 1-3/4” flat head socket screw through the strike bushing, strike plate, two (2) neoprene washers, door and into the sex bolt as illustrated. - Page 16 4. ENSURE that the mounting bracket aligns with the marks, and TIGHTEN the mounting screws. 5. DRILL Frame for anchor screws. a. Using the mounting bracket as a template, DRILL the four remaining holes in the frame for the anchor screws as follows: •...
-
Page 17: Performing The Final Installation
6. INSTALL the four (4) anchor screws using a Phillips screwdriver: • Metal Frames use #12 X 1-1/2” Type A, Phillips Pan Head Screws • Wood Frames use #14 X 3” Type A, Pan Head Screws Performing the Final Installation NOTE: The edge of the lock chassis must be flush with the end of the mounting bracket when centered (see inset). -
Page 18: Performing The Final Wiring
2. INSTALL the three (3) 6-32 X 3/4” Phillips pan head screws to secure the lock chassis to the mounting bracket using a Phillips screwdriver. Performing the Final Wiring NOTE 1: The end user and installer are liable for Fire and Building code compliance. NOTE 2: A small screwdriver has been included to help make connections to the terminal blocks, as required. -
Page 19: Performing Magnalock Maintenance
2. After installation and wiring have been completed, RE-INSTALL the lock cover through the lock chassis using the two (2) phillips screws. Front View Performing Magnalock Maintenance 1. PERFORM the following to complete a visual inspection. a. INSPECT the rubber washers for elasticity and proper pivoting; and TIGHTEN, as required. -
Page 20: Troubleshooting Guide
1 switch of SW3 is in the OFF position. Problems with Installation? Call Securitron: 1.800.MAGLOCK For warranty information: www.securitron.com/warranty Email: techsupport@securitron.com © 2015, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company. PN# 500-10550 Page 20 Rev. D, 12/14...
