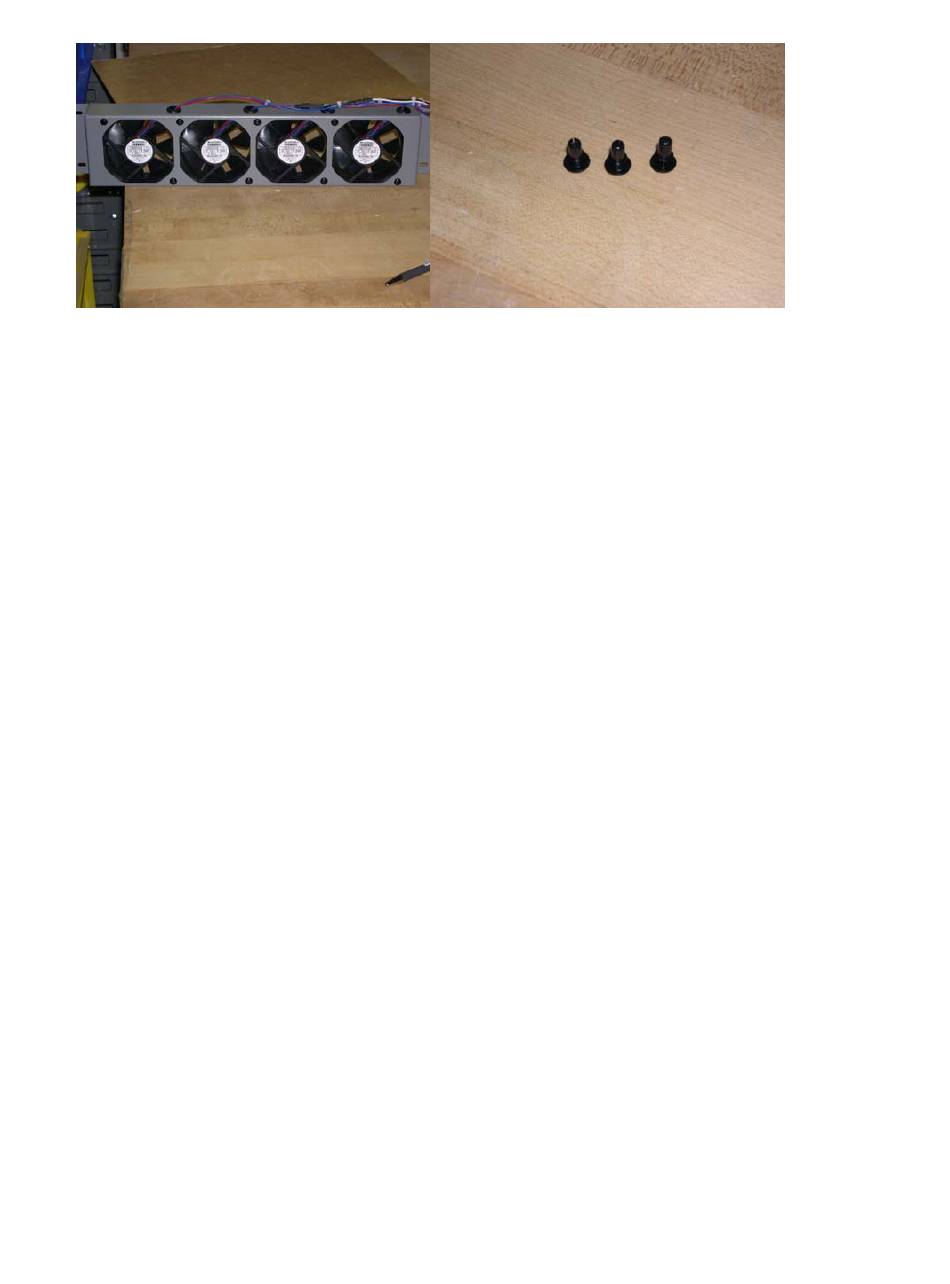

10. To replace the fan there are two black plastics push pin holding it. To take it off you
will need to get some wire cutter or flat screwdriver and pop the head out. There will be
two replacement push pin when changing out the fan.
11. Once the push pin is out, cut of the tie wrap and disconnect the fan from the fan
harness.
12. Now you are ready to put the fan back on, to put the fan on you need to make sure the
fan you took out are in the same direction as the other fans. Use the push pin that we send
you to hold the fan on, and then connect the connecter.
13. To put the fan housing back on do step #9 in reverse.
14. Now we're going to put back the laser tube back on so reverse steps 8 though 4.
15. The Fans and laser tube are back in so turn on the engraver because now we got to
check your Alignment to see if it's in spec.
16. See Mini laser alignment Procedure.
If you have any questions please call Epilog's Technical Support
Phone 303.215.9171
Fax 303.531.7594
