9.

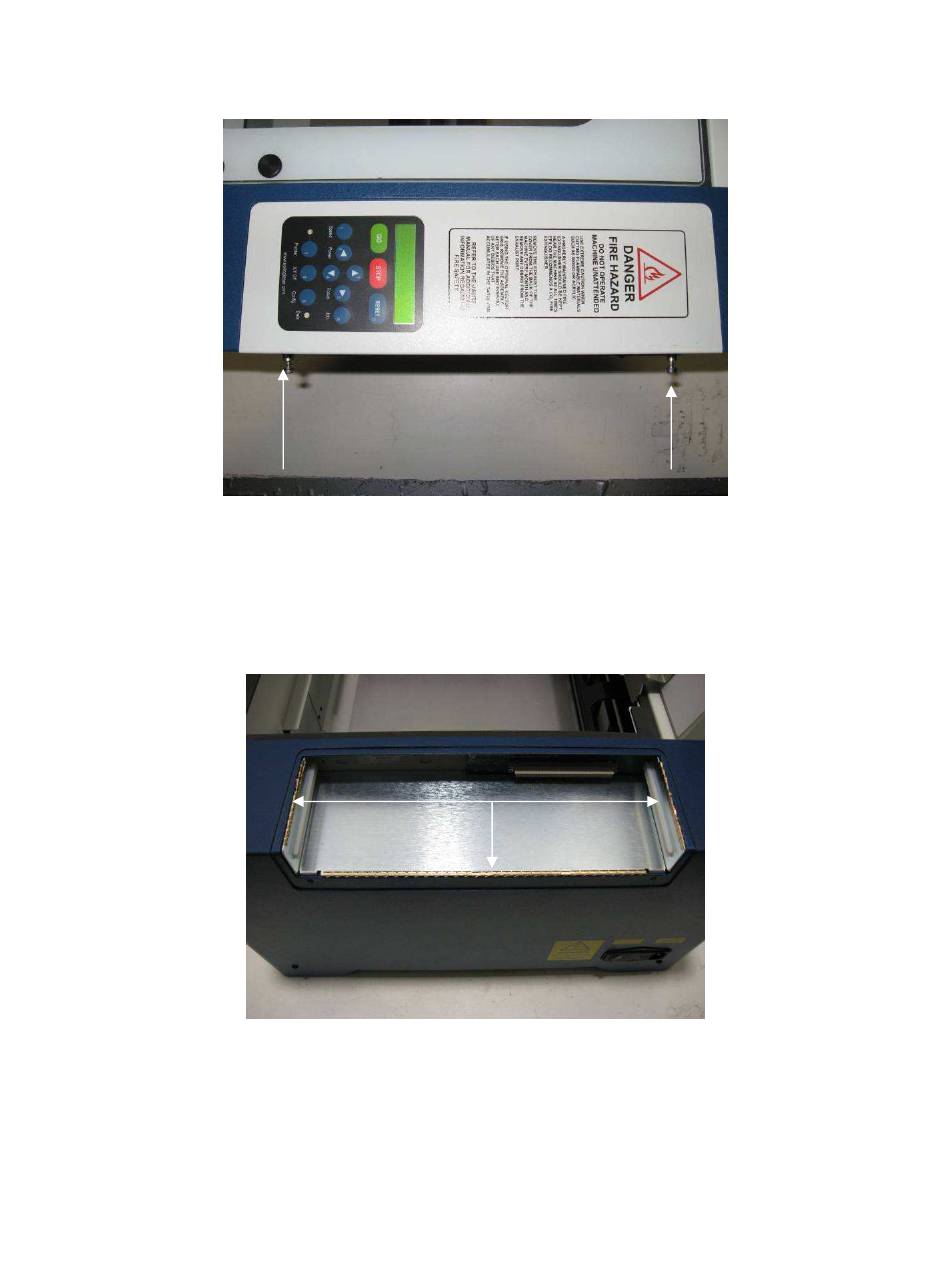

Grasp the screw heads and pull the control unit toward you. This may
require a small amount of effort. You are disconnecting electrical
connections when you remove the control board as shown in picture 2
10.
Note around the outside of the control housing (picture 3) on the machines
chassis, there are small copper strips with fingers that stick up. These are
to shield the control board from electrical interference. Make sure that
these copper strips stay in place when you remove the board and when
installing the board.
Picture 2
Picture 3
