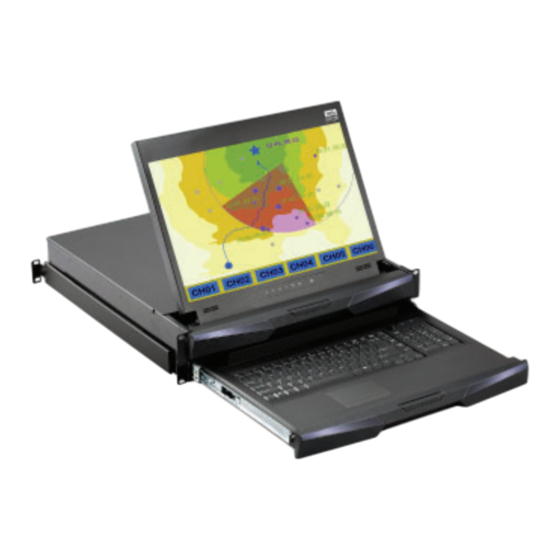

- Page 1 KVM switch and rackmount screen technology User Manual 2U Dual Slide Short Depth LCD Console Drawer RKP2417F 17" FHD 1920 x 1080 LCD Options : - SDI - BNC - DVI-D - Touchscreen - DC power Designed and manufactured by Austin Hughes UM-CV-751-RKP2417F-Q323V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, July 2023 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > RKP2417F Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifi cations / OSD Product Specifi cations Keyboard / Mouse Specifi cations On-screen Display Operation ( OSD ) P.11 < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input P.13... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Rkp2417F
< Part 1 > RKP2417F < 1.1 > Package Content RKP2417F unit X 1 - CX-6B 6ft HDMI console cable X 1 ( Alternative : CB-6A 6ft VGA console cable ) - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 6 < 1.2 > Dimension Front View Rear View HDMI AC Input 100~240V Power Side View UNIT : mm 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 480 x 88 mm 585 x 620 x 190 mm...
-
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 8 < 1.3 > Installation - How to install Installation Slides Figure 1. ■ A black arrow release button is located on the front of each slide. (shown in Figure 1). ■ Pull and hold the black arrow button on either side Figure 2.
-
Page 9: Connection
< 1.4 > Connection to USB Server via CX-6B cable LCD Console Drawer HDMI AC Input 100~240V POWER CX-6B HDMI console cable USB server HDMI < 1.4 > Connection to external KVM via CX-6B cable LCD Console Drawer HDMI POWER CX-6B HDMI console cable Video... - Page 10 < 1.4 > Connection to USB Server via CB-6A cable LCD Console Drawer POWER AC Input 100~240V CB-6A VGA console cable USB server < 1.4 > Connection to external KVM via CB-6A cable LCD Console Drawer POWER CB-6A VGA console cable VGA console KVM Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such...
-
Page 11: Specifi Cations / Osd
< Part 2 > Specifi cations / OSD < 2.1 > Product Specifi cations RKP2417F Panel Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) Contrast Ratio ( typ. - Page 12 < 2.1 > Product Specifi cations Physical RKP2417F Specifi cation Product ( W x D x H ) 441.6 x 480 x 88 mm 17.4 x 18.9 x 3.5 inch Packing ( W x D x H ) 585 x 620 x 190 mm 23 x 24.4 x 7.5 inch Net Weight 20.4 kg / 44.9 lb...
-
Page 13: Keyboard / Mouse Specifi Cations
< 2.2 > Standard Keyboard / Mouse Specifi cations G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States... - Page 14 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 15: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 16 On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position H-Position...
- Page 17 < Part 3 > Options < 3.1 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input...
- Page 18 < 3.2 > Options : Touchscreen & driver Projected Capacitive 10-pt Touch screen Specifi cation Model TPC-10 Multi-touch Technology Projected Capacitive Touch Point Input Type Finger or Capacitive Stylus Resolution 4096 x 4096 Touch Point Accuracy ± 2 mm Response Speed <...
- Page 19 < 3.2 > Options : Touchscreen & driver USB Touchscreen RKP2417F Power AC Input 100~240V TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB Driver Please follow the below steps to setup the touch screen:- Step 1.
-
Page 20: Options
< 3.2 > Options : Speaker Option speaker speaker DP Option - Display Port ( DP 1.0, HDCP 1.3 ) - Speaker AC Input 100~240V P.16 UM-CV-751-RKP2417F-Q323V1 www.austin-hughes.com... - Page 21 < 3.2 > Options : DVI-D Option - DVI-D ( DVI-D, TMDS single link ) - Audio input & output - Speaker DVI-D Audio Audio AC Input 100~240V BNC Option - BNC ( Composite, BNC ) - Audio IN - Speaker Audio IN AC Input 100~240V...
- Page 22 < 3.3 > Options : DC Power Model 125V 250V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load 50 mA 50 mA 50 mA...
-
Page 23: Kvm Integration
< Part 4 > KVM Integration < 4.1 > RKP2417F www.austin-hughes.com/support/usermanual/cyberview/UM-CV-2KKVM-KIT.pdf Local Remote 8-port -801D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf DVI-D Local Remote 12-port -1201D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MUKVM-KIT.pdf Cat6 Local Remote 8-port 16-port 32-port Matrix -MUIP1613 -MUIP3213 -MUIP1624 -MUIP3224 -MU1602 -MU3202 -MU1603 -MU3203 -MU1604 -MU3204 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-UKVM-KIT.pdf Cat6 Local Remote... - Page 24 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2023 Austin Hughes Electronics Ltd. All rights reserved. P.20 UM-CV-751-RKP2417F-Q323V1...
