ETC Echoflex Elaho Installation Manual

Echoflex Installation Guide

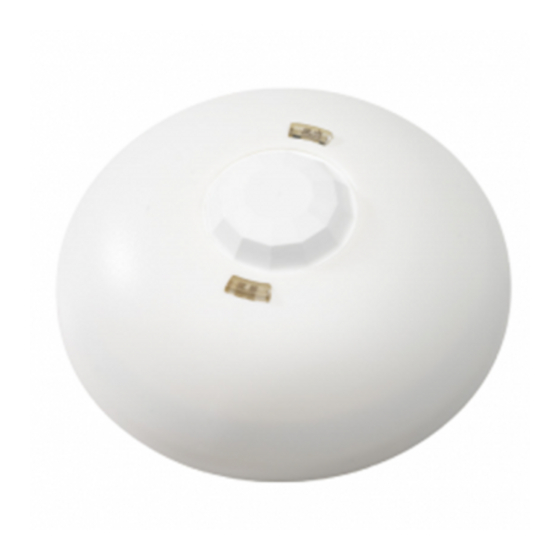

Elaho Dual Tech Ceiling-mount Vacancy Sensor
Overview
The Elaho Dual Tech Ceiling-mount Vacancy Sensor uses passive infrared (PIR)
technology and acoustic detection to provide reliable vacancy sensing for
lighting control. The sensor relies on local station control for manual on and
provides auto off functionality upon detection of vacancy.
The ceiling-mount sensor offers 360 degree coverage with optimized lens
options to accommodate small and large spaces.
Model Coverage m
E-DVAC-C-SR 41.8 m
Small Room
74.3 m
E-DVAC-C-LR 167 m
Large Room
279 m
Field-installed lens masks are provided to allow customized detection fields
for each sensor lens type.
Custom Configuration
This document guides you through the installation and local DIP switch setup
of the sensor. For more detailed information about custom configuration
options available using ElahoAccess, see the ElahoAccess App integrated help
system.
Note:
DIP switch 2 must be enabled. See
M a in Offic e Squamish, BC, Canada Phone +1 778 733 0111
E ma il info@echoflexsolutions.com
Trademark and patent info: echoflexsolutions.com/ip
Product information and specifications subject to change.
8 1 8 6 M 2 1 8 4 Rev B Released 2020-12
2
Coverage ft
2
at 2.4 m
2
at 6.7 m
2
at 2.4 m
2
at 6.7 m
To use the configuration settings applied using ElahoAccess,
We b echoflexsolutions.com
2
2
450 ft at 8 ft
2
800 ft at 12 ft
2
1,800 ft at 8 ft
2
3,000 ft at 12 ft
DIP Switches on
© 2020 Echoflex Solutions, Inc.
Echoflex intends this document to be provided in its entirety.
page 7.
