Echoflex Installation Guide
Elaho Dual Tech Ceiling-mount Occupancy Sensor
Overview

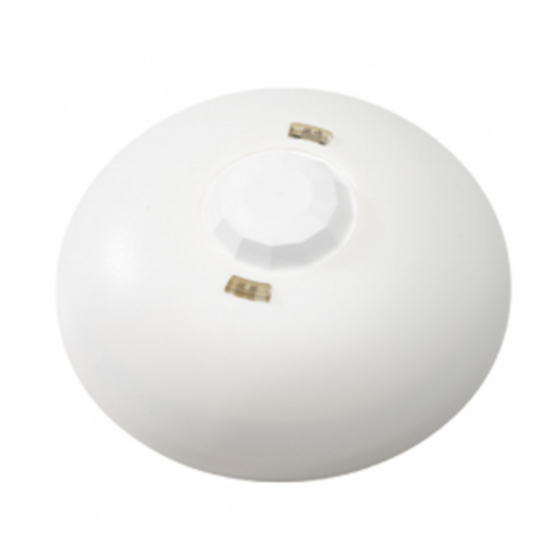

The Elaho Dual Tech Ceiling-mount Occupancy Sensor uses passive infrared
(PIR) technology and acoustic detection to provide reliable occupancy and
vacancy sensing for lighting control.
The ceiling-mount sensor offers 360 degree coverage with optimized lens
options to accommodate small spaces, large spaces, and spaces with high
ceilings.
Model
Coverage m
E-DOC-C-SR
41.8 m
Small Room
74.3 m
E-DOC-C-LR
167 m
Large Room
279 m
E-DOC-C-HC
28 m
High Ceiling
650 m
Field-installed lens masks are provided to allow customized detection fields
for each sensor lens type.
Custom Configuration
This document guides you through the installation and local DIP switch setup
of the sensor. For more detailed information about custom configuration
options available using ElahoAccess, see the ElahoAccess App integrated help
system.
Note:
DIP switch 2 must be enabled. See
M a in Offic e Squamish, BC, Canada Phone +1 778 733 0111
E ma il
info@echoflexsolutions.com
Trademark and patent
info: echoflexsolutions.com/ip
Product information and specifications subject to change.
8 1 8 6 M 2 1 8 3 Rev B Released 2020-12
2
2
 at 2.4 m
2
at 6.7 m
2
at 2.4 m
2
at 6.7 m
2
at 2.4 m
2
at 12.2 m
To use the configuration settings applied using ElahoAccess,
We b
echoflexsolutions.com
2
Coverage ft
2
450 ft
 at 8 ft
2
800 ft
at 12 ft
2
1,800 ft
at 8 ft
2
3,000 ft
at 12 ft
2
300 ft
at 10 ft
2
7,000 ft
at 40 ft
DIP Switches on
© 2020 Echoflex Solutions, Inc.
Echoflex intends this document to be provided in its entirety.
page 7.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Echoflex Elaho and is the answer not in the manual?

Questions and answers

Summary of Contents for ETC Echoflex Elaho

  • Page 1 Echoflex Installation Guide Elaho Dual Tech Ceiling-mount Occupancy Sensor Overview The Elaho Dual Tech Ceiling-mount Occupancy Sensor uses passive infrared (PIR) technology and acoustic detection to provide reliable occupancy and vacancy sensing for lighting control. The ceiling-mount sensor offers 360 degree coverage with optimized lens options to accommodate small spaces, large spaces, and spaces with high ceilings.
  • Page 2: Prepare For Installation

    Compliance cULus Listed • CE compliant • For use with Echoflex Elaho Control Systems, powered by an Elaho station power supply. Environment Ambient For indoor, commercial controls use only. Operating temperature 0-40°C (32-104°F), humidity maximum 90% (non-condensing). Location...
  • Page 3: Wire Specification

    Echoflex Installation Guide Dual Tech Occupancy Sensor Wire Specification The Dual Tech Occupancy Sensor connects to the EchoConnect communication bus. EchoConnect is a bi-directional protocol that uses one pair of wires (data + and data -) for both data and power. Echoflex recommends using Belden 8471 Class 2 wire (or approved equal - see the Echoflex cable cross database echoflexsolutions.com/files/Elaho_Data_Cable_...
  • Page 4: Installation

    Echoflex Installation Guide Dual Tech Occupancy Sensor Installation Note: Installation must follow all national and local codes for electrical equipment. NEC Class 2 product to be wired in accordance to NEC Article 725 and local jurisdiction requirements. The ceiling-mount sensor is provided with a mounting plate that can be mounted to a junction box, finished ceiling, or soft ceiling tile.
  • Page 5: Soft Ceiling Tile Installation

    Echoflex Installation Guide Dual Tech Occupancy Sensor Soft Ceiling Tile Installation Ceiling tile adapter Ceiling tile Ceiling tile adapter 1. Pull the Belden 8471 (or equivalent) and 2.5 mm (14 AWG) ) ground wire to the mounting location and strip each wire 11 mm (7/16 in). 2.
  • Page 6: Set Space And Address

    Echoflex Installation Guide Dual Tech Occupancy Sensor Settings The Elaho Dual Tech Ceiling-mount Occupancy Sensor DIP switches participates in an Elaho control system Space and Address using the configured switches Space and Address, which are selectable using the rotary switches on the sensor electronics located behind the removable cover. DIP switches and the [MODE] button, also located on the sensor electronics, set the sensor functionality and the occupancy detection action when set to Configuration on page 8...
  • Page 7: Dip Switches

    Echoflex Installation Guide Dual Tech Occupancy Sensor DIP Switches DIP switches on the sensor electronics provide for additional configuration options including Use Custom Config, Vacancy Timeout, Enable/Disable detection LEDs, PIR Only Mode, and the ability to restore the sensor to its factory defaults.
  • Page 8 Echoflex Installation Guide Dual Tech Occupancy Sensor Power Up All EchoConnect terminations in the system must be made before applying power to the system and sensor. When the sensor is powered up, the PIR and acoustic detection LEDs illuminate for one minute for calibration and warm- up.
  • Page 9: Operation

    Echoflex Installation Guide Dual Tech Occupancy Sensor Preset While in Basic configuration mode (DIP switch 2 set to Off), use the [MODE] and Auxiliary [A] buttons to program the preset that is activated with an occupancy detected state change. By default, this is Preset 1. When vacancy is detected, the default action event is Off.
  • Page 10: Grace Period

    Echoflex Installation Guide Dual Tech Occupancy Sensor When the sensor detects vacancy, the vacancy timeout period begins. If the sensor does not detect occupancy again during the vacancy timeout period, the lights turn off and a 30 second grace period begins. Grace Period The sensor features a 30 second grace period after a vacancy timeout occurs.
  • Page 11: Lens Masking

    Echoflex Installation Guide Dual Tech Occupancy Sensor Walk Test The sensor offers a Walk Test mode, which shortens the vacancy timer to ten seconds and allows for simple and quick verification of the sensor’s coverage and range in the installed space. [Walk Test] 1.
  • Page 12: Sensor Coverage

    Echoflex Installation Guide Dual Tech Occupancy Sensor Sensor Coverage Small Room Lens Side View 8 ft 2.4 m 10 ft 3.0 m 12 ft 3.7 m 20 ft 20 ft 15 ft 10 ft 5 ft 5 ft 10 ft 15 ft 6.1 m 4.6 m...

This manual is also suitable for:

E-doc-c-srE-doc-c-lrE-doc-c-hc

Table of Contents
