ETC echoflex MOS-IR A Series Installation Manual

Echoflex Installation Guide
Ceiling-Mount Occ/Vac Sensor (MOS)
Overview
The MOS model ceiling-mount occupancy/vacancy sensor is a wireless,
energy harvesting sensor that is available as either a passive infrared (PIR) or
a Dual Technology model. The Dual Technology sensor uses PIR and passive
microphone technology to provide full coverage of audible human activity
across the entire PIR detection range. Innovative noise filtering prevents
false triggers that could keep lights on in empty spaces.
Model
Lens A: small motion,
MOS-IR-xA*
short range
Lens B: large motion,
MOS-IR-xB*
broad range
Lens C: high bay
MOS-IR-xC*
coverage
Lens A: small motion,
MOS-DT- A
x *
short range, and audio
Lens B: large motion,
MOS-DT-xB*
broad range, and audio
*Where x is the radio frequency: U=902 MHz, Y=868 MHz and J=928 MHz.
This document covers installation, testing, and settings that apply to all MOS
models. The package includes the sensor, lens mask stickers, mounting
plate with integrated magnets, wire staples (902 mHz models only), and the
installation guide.
Prepare for Installation
Ceiling-mount occupancy sensors are intended for installation on a finished
ceiling surface or suspended ceiling tile. Echoflex recommends paying
special attention to the installation environment.
• For indoor use only. Operating temperature -10°C to 45°C (14°F to
113°F), 5% to 92% relative humidity (non-condensing).
• High density construction materials and large metal appliances or
fixtures in the space may disrupt wireless transmissions.
• Install the sensor within range of linked receivers or controllers, 24 m
(80 ft).Consider adding a repeater to extend reception range.
• Ensure the sensor model's lens is suitable for your ceiling height.
Corporate Headquarters Middleton, WI, USA
Web echoflexsolutions.com
© 2021 Echoflex Solutions, Inc. Trademark and patent info:
Echoflex intends this document to be provided in its entirety. Product information and specifications subject to change.
8188M2105 Rev A Released 2021-04
Detection
93 m
(1000 ft
176 m
(1900 ft
585 m
(6300 ft
93 m
(1000 ft
176 m
(1900 ft
|
Phone +1 608 831 4116
|
Email info@echoflexsolutions.com
Coverage
2
at 2.4 m
2
at 8 ft)
2
at 2.7m
2
at 9 ft)
2
at 12m
2
at 40 ft)
2
at 2.4 m
2
at 8 ft)
2
at 2.7 m
2
at 9 ft)
|
Support service@echoflexsolutions.com
echoflexsolutions.com/ip

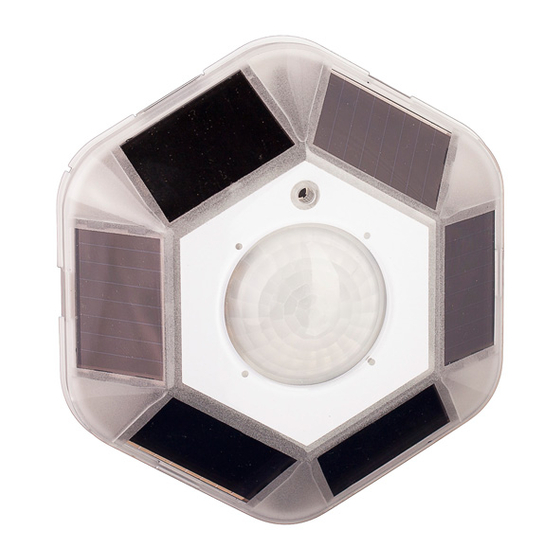

Dua-tech model shown
