Echoflex Installation Guide

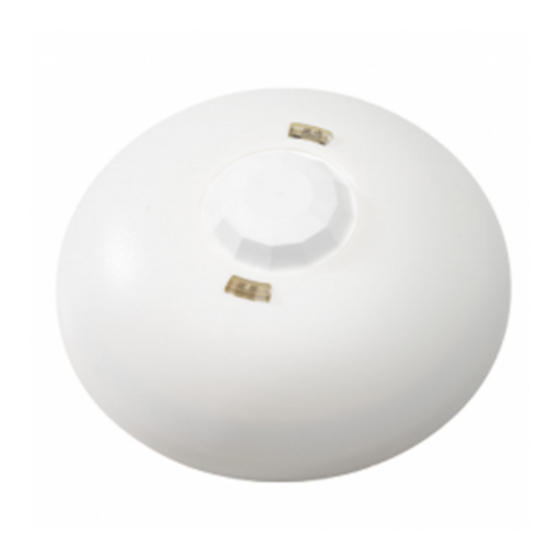

Elaho Responsive Occupancy Sensor
Overview
The Elaho Occupancy Sensor is a ceiling mounted sensor that utilizes passive
infrared (PIR) technology, providing reliable vacancy and occupancy detection
for lighting control. The sensor allows for both auto on and auto off
functionality along with any commands supplied from local stations.
The Occupancy Sensor provides 360 degree coverage of the installed location
and is available in these models:
Model
E-OCC-SR
Small Room
E-OCC
Large Room
E-OCC-HC
High Ceiling
Field-installed lens masks are provided to allow customized occupancy
detection fields for each sensor lens type.
Custom Configuration
This document guides you through the installation and local DIP switch setup
of the sensor. For more detailed information about custom configuration
options available using ElahoAccess, see the ElahoAccess App integrated help
system.
Note:
DIP switch 2 must be enabled. See
M a in Offic e Squamish, BC, Canada Phone +1 778 733 0111
E ma il info@echoflexsolutions.com
© 2020 Echoflex Solutions, Inc. Trademark and patent
Echoflex intends this document to be provided in its entirety.
Product information and specifications subject to change.
8 1 8 6 M 2 1 8 1 Rev C Released 2020-12
Coverage m
2
41.8 m at 2.4 m
2
74.3 m at 6.7 m
2
167 m at 2.4 m
2
279 m at 6.7 m
2
28 m at 2.4 m
2
650 m at 12.2 m 7,000 ft
To use the configuration settings applied using ElahoAccess,
We b echoflexsolutions.com
2
Coverage ft
2
450 ft at 8 ft
2
800 ft at 12 ft
2
1,800 ft at 8 ft
2
3,000 ft at 12 ft
2
300 ft at 10 ft
2
at 40 ft
DIP Switch Settings on
info: echoflexsolutions.com/ip
2
page 8.
