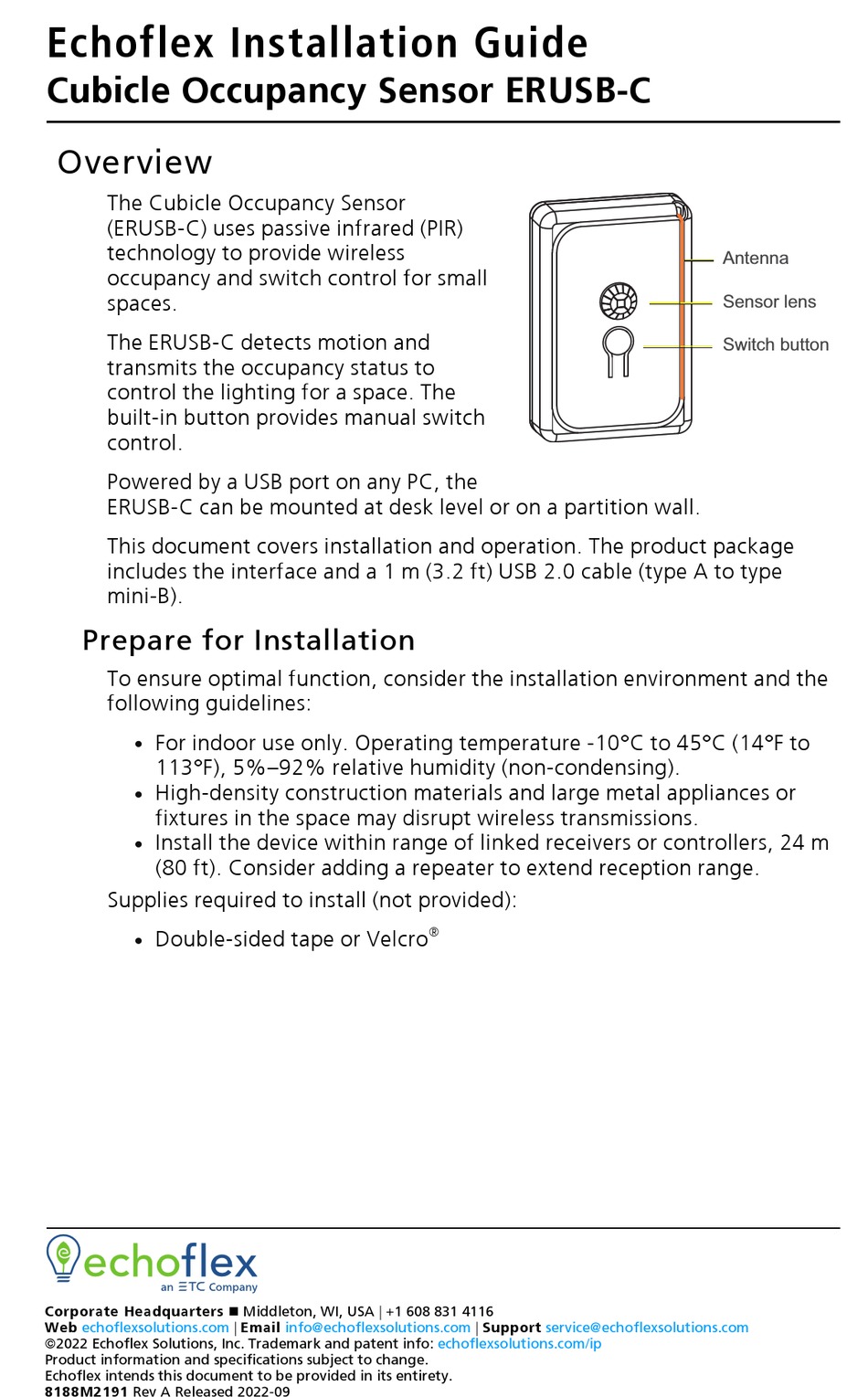

Echoflex Installation Guide
Cubicle Occupancy Sensor ERUSB-C

Overview

The Cubicle Occupancy Sensor
(ERUSB-C) uses passive infrared (PIR)
technology to provide wireless
occupancy and switch control for small
spaces.
The ERUSB-C detects motion and
transmits the occupancy status to
control the lighting for a space. The
built-in button provides manual switch
control.
Powered by a USB port on any PC, the
ERUSB-C can be mounted at desk level or on a partition wall.
This document covers installation and operation. The product package
includes the interface and a 1 m (3.2 ft) USB 2.0 cable (type A to type
mini-B).

Prepare for Installation

To ensure optimal function, consider the installation environment and the
following guidelines:
For indoor use only. Operating temperature -10°C to 45°C (14°F to
•
113°F), 5%–92% relative humidity (non-condensing).
High-density construction materials and large metal appliances or
•
fixtures in the space may disrupt wireless transmissions.
Install the device within range of linked receivers or controllers, 24 m
•
(80 ft). Consider adding a repeater to extend reception range.
Supplies required to install (not provided):
Double-sided tape or Velcro
•
Corporate Headquarters n Middleton, WI, USA | +1 608 831 4116
Web echoflexsolutions.com
©2022 Echoflex Solutions, Inc. Trademark and patent
Product information and specifications subject to change.
Echoflex intends this document to be provided in its entirety.
8188M2191 Rev A Released 2022-09
| Email info@echoflexsolutions.com
®
| Support service@echoflexsolutions.com
info: echoflexsolutions.com/ip

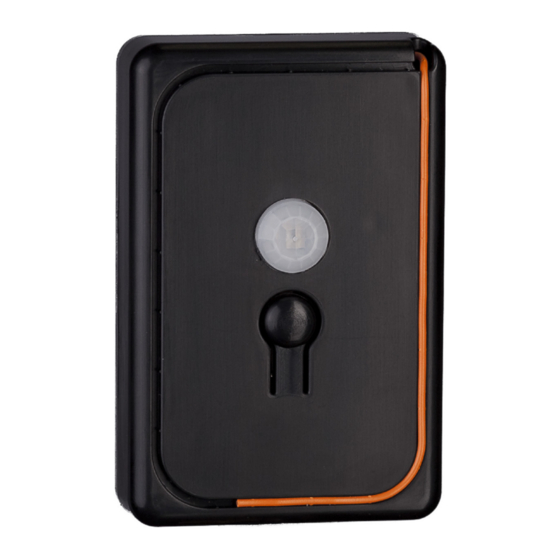

Antenna
