Echoflex Installation Guide
Elaho Dual Tech Wall-mount Occupancy
Overview

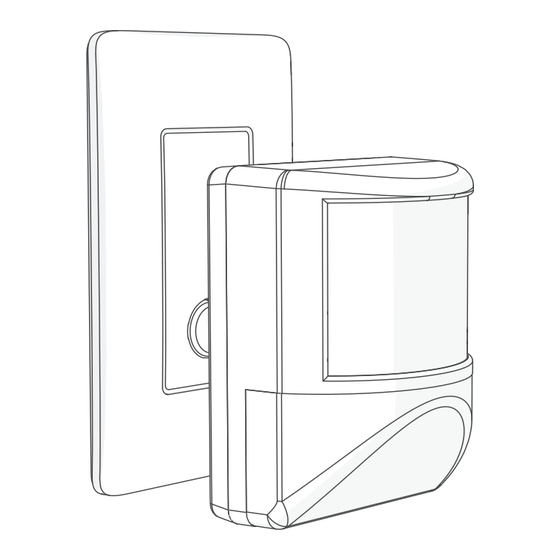

The Elaho Dual Tech Wall-mount Occupancy Sensor uses passive infrared
(PIR) technology and acoustic detection to provide reliable occupancy and
vacancy sensing for lighting control.
Custom Configuration
This document guides you through the installation and local DIP switch
setup of the sensor. For more detailed information about custom
configuration options available using ElahoAccess, see the ElahoAccess
App integrated help system.
Note:
ElahoAccess, DIP switch 2 must be enabled. See
page 7.
Corporate Headquarters n Middleton, WI, USA | +1 608 831 4116
© 2023 Echoflex Solutions, Inc. | Trademark and patent info:
Web
echoflexsolutions.com
Third-party license agreement
change. Echoflex intends this document to be provided in its entirety.
8186M2185 Rev C Released 2023-06
The wall-mount unit offers up to 140 degree field
of detection with optimized lens options to
accommodate wide or narrow angle spaces.
Wall-mount - Wide Angle Lens - coverage
• 18.3 m (60 ft) at mounting height of
• 140 degree field of detection
Wall-mount - Narrow Angle Lens - coverage
• 4.9x22.9 m (16x75 ft) at mounting height of
• 40 degree field of detection
Sensor Coverage on page 11
See
To use the configuration settings applied using
| Email
info@echoflexsolutions.com
info: etcconnect.com/licenses
2.1–3 m (7–10 ft)
1.8–2.1 m (6–7 ft)
echoflexsolutions.com/ip
| Support
service@echoflexsolutions.com
| Product information and specifications subject to
.
DIP Switches on
