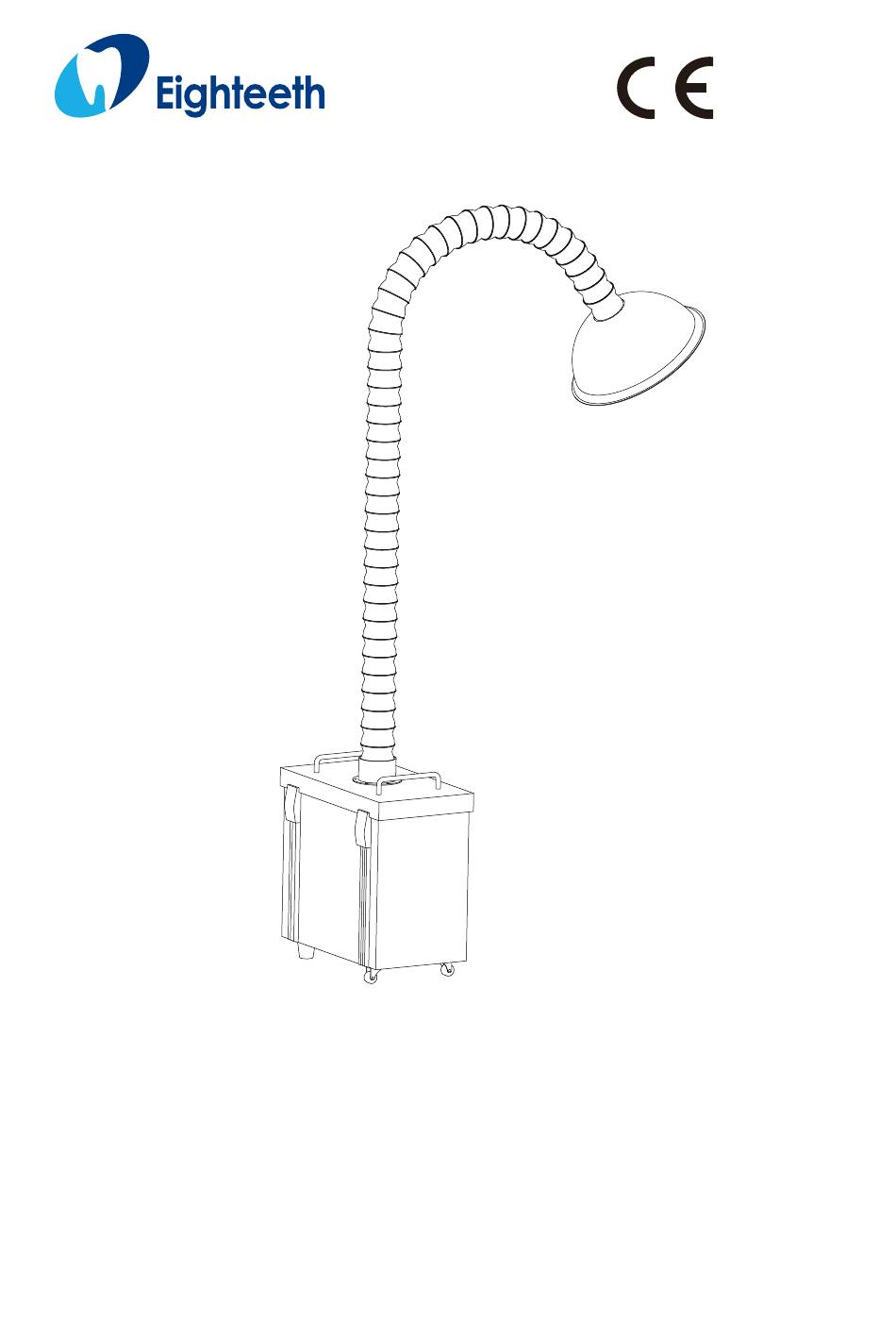

- Page 1 0197 Extraoral Dental Vacuum System USER MANUAL...
-
Page 3: Table Of Contents
Content Content 1. Scope of VacStation .................... 4 2. Symbols ......................5 3. Introduction ......................6 3.1 Scope of application ................... 6 3.2 Safety instructions ..................6 4. Installing VacStation .................... 8 4.1 Remove transportation protective foam............8 4.2 Installing VacStation ................... 9 5. -
Page 4: Scope Of Vacstation
1 Scope of VacStation 1. Scope of VacStation 1. Main Engine Box 2. Directional Duct 3. Suction Nozzle 4. Volume Controller 5. Pow er cord Page 4 / 25... -
Page 5: Symbols
2 Symbols 2. Symbols If the instructions are not followed properly, operation may lead to hazards for the product or the user/patient. WARNING Additional information, explanation of operation and NOTE performance. Serial number Catalogue number Date of manufacture Lot of manufacture Protective earth(ground) Type B applied part Fuse... -
Page 6: Introduction
3.2 Safety instructions 1. Please read this manual before use. 2. The VacStation must be placed upright w hen being used. Laying on the side or upside dow n is prohibited, because these w ill cause damage to the machine or shorten its service life. - Page 7 (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the VacStation, including cabl e s specified by the manufacturer. Otherw ise, degradation of the performance of thi s equipment could result.
-
Page 8: Installing Vacstation
4 Installing VacStation 4. Installing VacStation 4.1 Remove transportation protective foam Before using the machine for the first time, please take out the foam for transportation protection at the bottom of the main filter assembly, otherw ise the machine w on’t work normally. Please refer to the following steps to remove the foam. -
Page 9: Installing Vacstation
4 Installing VacStation Install the main engine box: Install the parts in order and fi x four buckles. 4.2 Installing VacStation Installation of suction nozzl e : Screw the nut, fix suction nozzl e to the directional duct. Installation of directional duct: Plug the directional duct to the top cover. - Page 10 4 Installing VacStation Connecting pow er cord: Install one end of pow er cord into main engine housing, and the other end into a pow er outlet. NOTE Only the original pow er cord could be used. Connecting volume controller:...
-
Page 11: User Interface
5 User Interface 5. User Interface Turn Pow er On Press pow er switch 4 to “ ” Volume up Shot press volume up key 3 to change air volume from 1 to 10. Volume dow n Shot press volume dow n key 2 to change air volume from 10 to 1. -
Page 12: Operating Instructions
6 Operating instructions 6. Operating instructions WARNING Do not block the air inlet artificially to avoid damage to the motor. After the fil t er is blocked, please replace the filter immediately to avoid damage to the motor. NOTE Before first use, be sure to remove the foam placed under the main filter. When using the buckle button, be sure to press the top cover part firmly, and then fix the buckle button, otherw ise the buckle button w ill be damaged. -
Page 13: Power Off
6 Operating instructions 6.3 Power off Turn off the device by pressing volume controller power switch to side “OFF”, and the screen w ill display "OFF". To disconnect the pow er supply, please press the pow er switch on main engine box to “ ”. -
Page 14: Maintenance
7 Maintenance 7. Maintenance The components in the figure are: 1: Main engine housing 2: Main filter assembly 3: Secondary filter assembly 4: Primary filter cotton 5: Rubber pad 6: Top cover 7: Directional duct 8: Suction nozzle 7.1 Cleaning and disinfection 7.1.1 Forward For hygiene and sanitary safety purpose, the components (suction nozzle) must be cleaned and disinfected before each usage to prevent any contamination. -
Page 15: General Recommendations
7 Maintenance should be reprocessed before sending back to the manufacturer for repair. 7.1.2 General recommendations The user is responsible for the sterility of the product for the first cycle and each further usage as w ell as for the usage of damaged or dirty instruments, w here applicable after sterility. -
Page 16: Filter Replacement
7 Maintenance 7.2 Filter replacement 7.2.1 The frequency of filter replacement Frequency Components (Check cumulative flow value on screen) Primary filter cotton Display 010 and its multiples such as 010/020/030… (Approximately every 1 month based on average operating time 4 hours per day) Secondary filter assembly Display 050 and its multiples such as 050/100/150…... -
Page 17: Trouble Shooting
8 Trouble shooting 8. Trouble shooting When a problem or malfunction occurs, please check the machine w ith the tabl e below before contacting the dealer to quickly eliminate common problems or malfunctions. If the problem or malfunction is not solved, please contact the dealer. Problem or Reasons Solutions... -
Page 18: Technical Data
9 Technical Data 9. Technical Data Manufacturer Changzhou Sifary Medical Technology Co.,Ltd Model VacStation Dimensions 53cm x 46 cm x 60 cm±1 cm(Package) Duct Φ75mm×1500 mm 21kg±10% Weight 220-240V AC for European Standard/100-120V AC Input for American Standard Frequency 50/60Hz... -
Page 19: Emc Tables
Guidance and m anufacturer’s declaration – electromagnetic emissions The VacStation is intended for use in the electromagnetic environment specified bel o w. The customer or the user of the VacStation should assure that it is used in such an environment. - Page 20 10 EMC Tables Electrostatic discharge +/- 8 kV +/- 8 kV Floors should be w ood, (ESD) IEC 61000-4-2 contact contact concrete or ceramic tile. If floors are covered with +/- 2 kV, +/- 4 +/- 2 kV, +/- 4 synthetic material, the kV, +/- 8 kV, kV, +/- 8 kV,...
- Page 21 Guidance and m anufacturer’s declaration – electromagnetic immunity The VacStation is intended for use in the electromagnetic environment specified below . The customer or the user of the VacStation should assure that it is used in such an environment. IEC 60601 test...
- Page 22 The VacStation has been tested with the immunity test level in the below table and meet the related requirements of IEC 60601-1-2:2014. The customer and/or user should help keep a minimum distance betw een RF w ireless communications equipment and the VacStation as recommended below .
- Page 23 Remark Adapter Use of VacStation adjacent to or stacked w ith other equipment should be avoided because it could result in improper operation. If such use is necessary, VacStation and the other equipment should be observed to verify that they are operating normally.
-
Page 24: Statement
11 Statement 11. Statement Service Life The service life of VacStation series products is 3 years. Maintenance MANUFACTURE w ill provide circuit diagrams, component part lists, descriptions, calibration instructions to assist to SERVICE PERSONNEL in parts repair. Disposal The package should be recycled. Metal parts of the device are disposed as scrap metal. - Page 25 Add: NO.99, Qingyang Road, Xuejia County, Xinbei District, Changzhou City, 213000 Jiangsu, China Tel: +86-0519-85962691 Fax: +86-0519-85962691 Email: ivy@sifary.com Web: www.eighteeth.com Llins Service & Consulting GmbH Tel: +49 175 4870819 Add: Obere Seegasse 34/2, 69124, Heidelberg, Germany Email: Llins.Service@gmail.com Version: 01 IFU-6835001 Issued: 2020.04.10...
