3.6 Changing The Lens Mount

The mount is supplied complete with our LMR1(/M) 1" or LMR2(/M) 2" optical lens
holder, but is compatible with other holders in the LMR range. Please note that the
maximum load of 120g is based on using 2 x 2" optical lens holders.

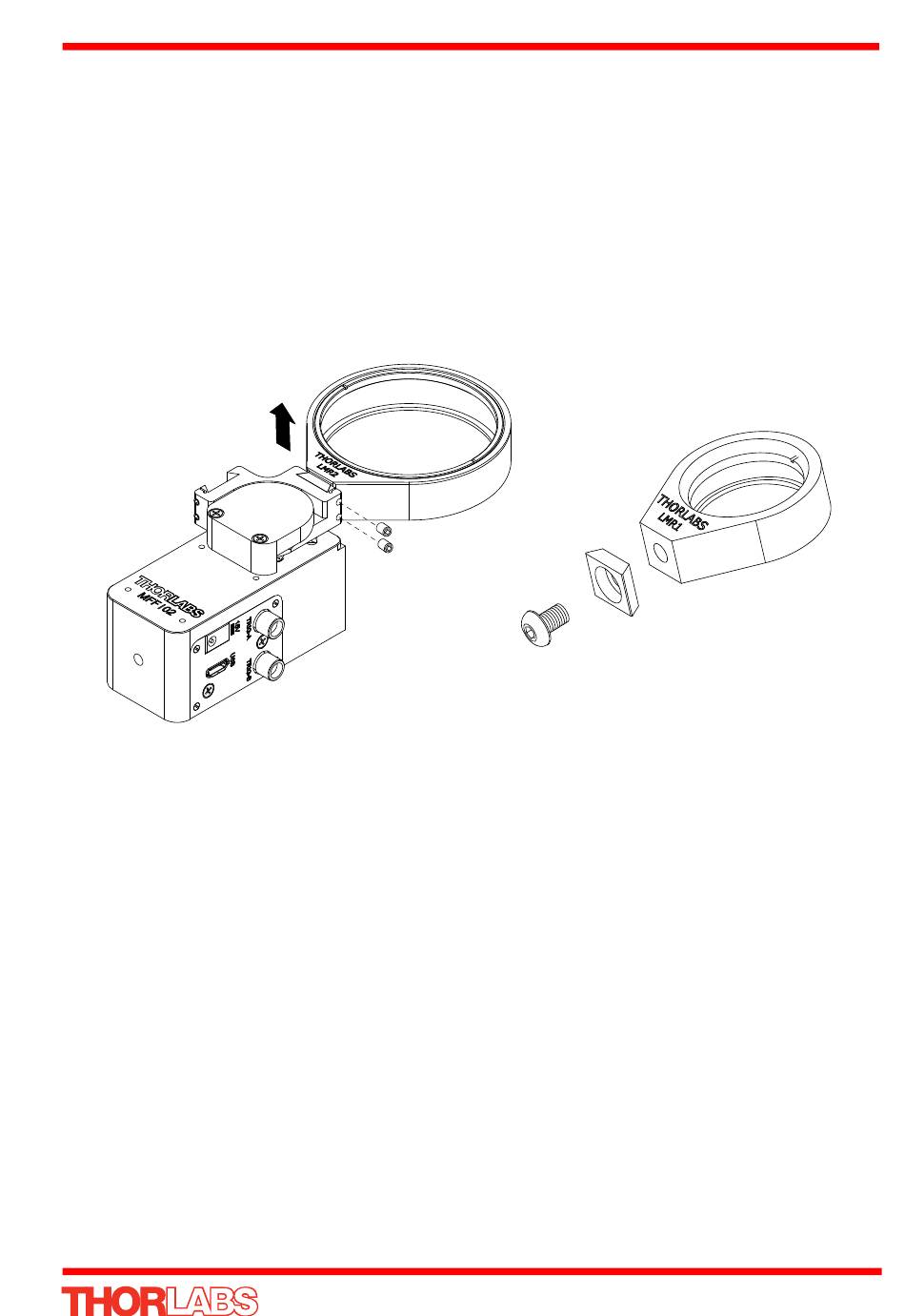

To change the optics mount, proceed as follows:
1) Loosen the two grub screws securing the lens mount base and remove the lens
mount from the unit.
2) Undo the screw securing the base to the lens mount. Retain the base an d the
screw.
3) To fit a le ns mount, fit th e base p late to the replacement mount using the
appropriate screw supplied with the flipper unit, either #8-32 UNC or M4.
4) Fit the lens mount to the flipper unit and tighten the grub screws.
