AXIOMTEK IPC922-215-FL Quick Installation Manual page 2

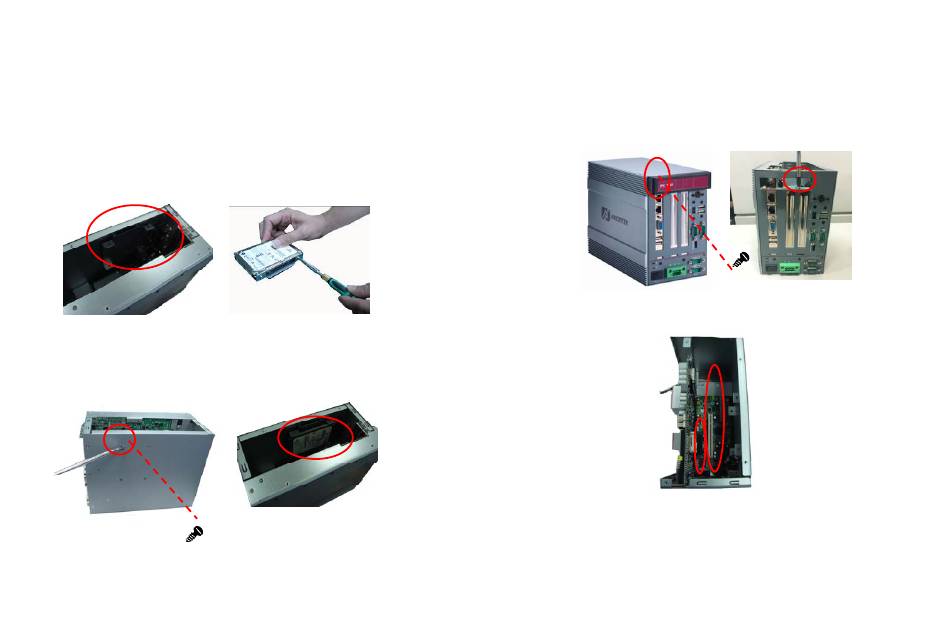

Installing the Hard Disk Drive
Step 1 Turn off the system,
connector.
Step 2 Loosen screws to remove the top cover from the
chassis.
Step 3 Open the top cover and locate the Hard Disk Drive from
the side. Use assembly parts to fix HDD with the
bracket.
HDD LOCATION
Step 4 Install and fix the HDD through the bottom, next, plug
the power cable in HDD
INSTALLING HDD
2
and disconnect the power
ASSEMBLING HDD BRACKET
HDD FIXED
9416G922020E
©
Copyright 2016 Axiomtek Co., Ltd.
Version A1 January 2016
Printed in Taiwan
Installing the PCI or PCIe Card
Step 1 Turn off the system.
Step 2 Disconnect the power connector.
Step 3 Loosen screws to remove the top cover from the
chassis. Removing the PCI or PCIe bracket by
releasing the button as marked.
Step 4 Locate the PCI or PCIe slots from the top.
9416G922020E
©
Copyright 2016 Axiomtek Co., Ltd.
Version A1 January 2016
Printed in Taiwan
3
