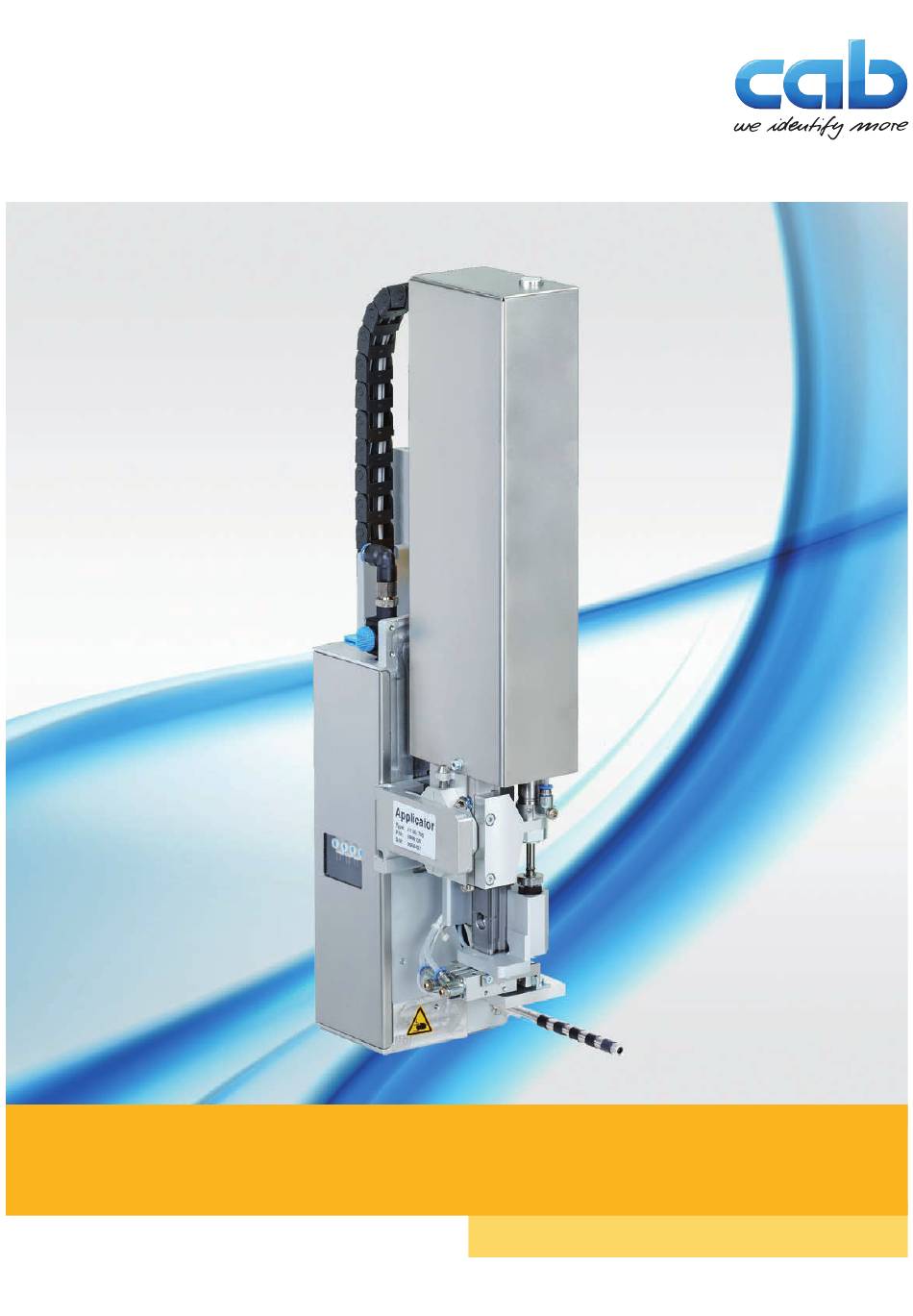

- Page 1 Operator's Manual 4114 / 4116 Stroke Applicator Made in Germany...
- Page 2 Produkttechnik GmbH & Co. KG. The replication, conversion, duplication or divulgement of the whole manual or parts of it for other intentions than its original intended purpose demand the previous written authorization by cab. Editor Regarding questions or comments please contact cab Produkt- technik GmbH &...
-
Page 3: Table Of Contents
Table of Contents Introduction ............................4 Instructions ............................... 4 Intended Use ............................4 Safety Instruction ............................. 4 Safety Marking ............................5 Environment ............................. 5 Product Description ..........................6 Important Features ........................... 6 Technical Data ............................6 Overview ..............................7 Contents of Delivery ..........................8 Operation .............................. -
Page 4: Introduction
• The device applicator mounted on a cab printer of the Hermes+ series is intended exclusively for applying suitable materials that have been approved by the manufacturer. Any other use or use going beyond this shall be regarded as improper use. -
Page 5: Safety Marking
Introduction • In operation, moving parts are easily accessible. This applies especially for the zone, where the pad is moved between the starting and the labelling position. During operation do not reach into that zone and keep long hair, loose clothes, and jewelry distant. Before any manipulations in those areas, close the shutoff valve. -
Page 6: Product Description
Product Description Important Features • The supporting air and the vacuum as well as the speed of the cylinder are adjustable. That way the applicator can be adapted to different label materials and sizes. • To avoid contamination within the vacuum channels they are cleaned by an air pressure impulse at the end of each application. -
Page 7: Overview
Product Description Overview Fig. 1 Device overview - front view 1 Cover 6 Knurled screw for attaching the applicator to the 2 Compressed air connector printer 3 Shutoff valve 7 Hinges 4 Pad (customized) 8 SUB-D 15 Interface to the printer 5 Blow tube for supporting air... -
Page 8: Contents Of Delivery
Product Description Contents of Delivery 1 Applicator 2 Screws (part of the pad) 3 Pad (as ordered) 4 Blow tube (as ordered) 5 Documentation Fig. 2 Contents of delivery Note! Please keep the original packaging in case the applicator must be returned. Attention! The device and printing materials will be damaged by moisture and wetness. -
Page 9: Operation
Operation Standard Operation Check all external connections. Load the material. Ensure that the locking system is locked "Operator's Manual" of the printer. Open the shutoff valve. Attention! Ensure that the pad is not covered by a label when switching on the printer-applicator system. Otherwise the vacuum sensor may be calibrated incorrectly. - Page 10 Operation Fig. 4 Mounting applicator on printer Attention! Initiation, adjustments and changing of parts is to be performed by qualified service personnel only. Initiation/Service Manual Applicators. Attention! Disconnect the printer from the power supply before mounting the applicator! ...
-
Page 11: Error Messages
Error Messages Error Messages of the Printer For detailed information about printer errors (e.g. 'Paper out', 'Ribbon out', etc.) Operator's manual of the printer Error treatment: Clear the error results. Press the feed key to synchronize the label feed, remove the peeled labels manually. ... -
Page 12: Licenses
Person authorised to compile the technical file: Erwin Fascher Am Unterwege 18/20 99610 Sömmerda Signed for, and on behalf of the Manufacturer: Sömmerda, 04.10.2017 cab Produkttechnik Sömmerda Gesellschaft für Computer- und Automationsbausteine mbH Erwin Fascher 99610 Sömmerda Managing Director The product must not be put into service until the final machinery into which it is to be incorporated has been declared in conformity with the provisions of the Directive on machinery. -
Page 13: Eu Declaration Of Conformity
Directive 2011/65/EU on the restriction of the use of certain • EN 50581:2012 hazardous substances in electrical and electronic equipment: Signed for, and on behalf of the Manufacturer: Sömmerda, 04.10.2017 cab Produkttechnik Sömmerda Gesellschaft für Computer- und Automationsbausteine mbH Erwin Fascher 99610 Sömmerda Managing Director...
