AVANT A36621 Operator's Manual For Attachment

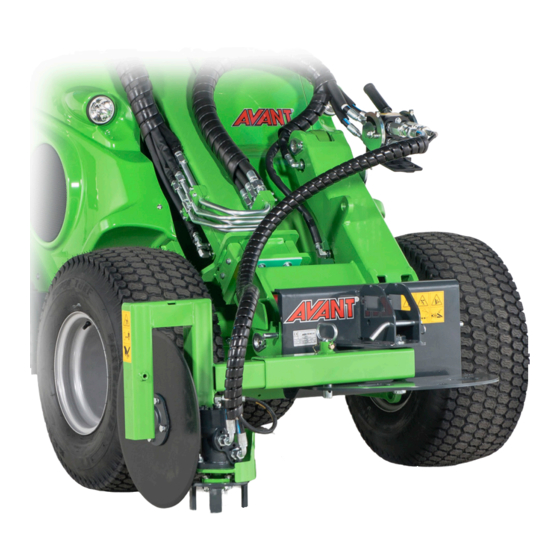

Edge trimmer
Hide thumbs Also See for A36621:
Table of Contents

Advertisement

Quick Links

Download this manual
English

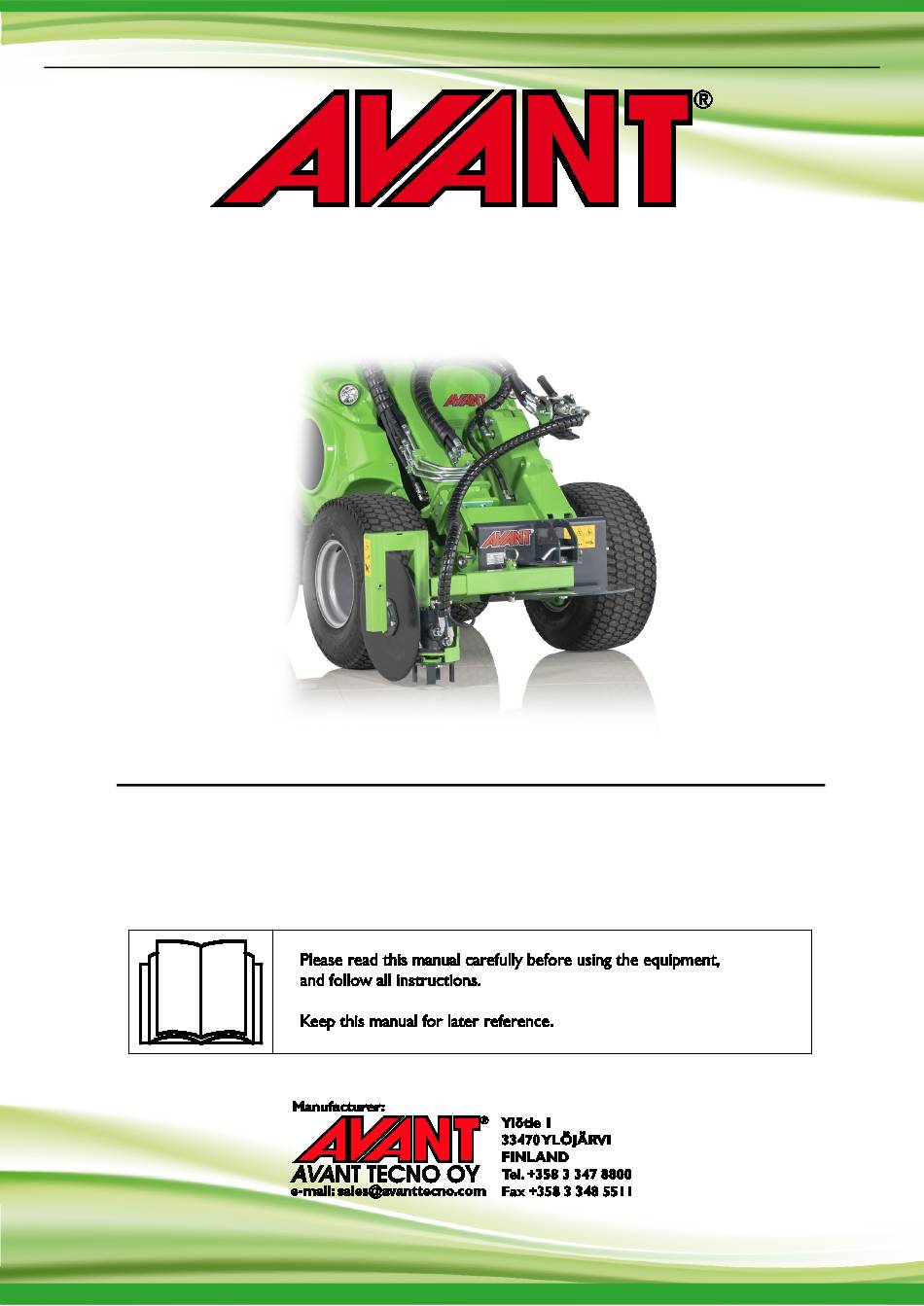

Edge Trimmer 2019 1
Operator's Manual for Attachment
Edge Trimmer
Product number
A36621
www.avanttecno.com
A439073 2019 1 EN 2016-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A36621 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVANT A36621

Summary of Contents for AVANT A36621

  • Page 1 English Edge Trimmer 2019 1 Operator's Manual for Attachment Edge Trimmer Product number A36621 www.avanttecno.com A439073 2019 1 EN 2016-...
  • Page 2 Edge Trimmer 2019 1...

  • Page 3: Table Of Contents

    Edge Trimmer 2019 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ..........................5 2. DESIGNED PURPOSE OF USE ......................6 3. SAFETY INSTRUCTIONS FOR USING THE EDGE TRIMMER ............7 4. TECHNICAL SPECIFICATIONS ......................10 Safety labels and main components of the attachment.................. 11 5.

  • Page 4: Foreword

    If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer.

  • Page 5: Warning Symbols Used In This Manual

    5 (28) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”...

  • Page 6: Designed Purpose Of Use

    2. Designed purpose of use This AVANT Edge trimmer is an attachment that is suitable for use with AVANT multi purpose loaders that are shown in Table 1. The Edge trimmer is the perfect attachment for trimming the edges of lawns, hedges, flower beds etc.

  • Page 7: Safety Instructions For Using The Edge Trimmer

    7 (28) 3. Safety instructions for using the edge trimmer Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage.
  • Page 8 8 (28)  Shut down the loader and place the attachment to a safe position as shown in Safe stopping procedure before any cleaning, maintenance, or adjustments.  Pay attention to the surroundings and any other persons and machines moving in the vicinity.
  • Page 9 9 (28) Remember to wear proper personal protective equipment:  The noise level at the driver's seat may exceed 85 dB(A) depending on loader model and operating cycle. Extended exposure to loud noise can cause hearing impairment. Wear hearing protection while working with the loader. ...

  • Page 10: Technical Specifications

    Minimum width in working position: 1080 mm Weight: 80 kg Recommended hydraulic flow: 5-15 l/min, 20,0 MPa (200 bar) Maximum input of hydraulic energy: 40 l/min, 20,0 MPa (200 bar) Suitable Avant loaders: See Table 1 Options Support wheel A36699...

  • Page 11: Safety Labels And Main Components Of The Attachment

    11 (28) 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment. Replace any unclear or missing label. New labels are available via your retailer or contact information provided on the cover.
  • Page 12 12 (28) Table 3 - Decal locations and warning messages Decal Warning message A46771 Misuse hazard - Read instructions before use. A46772 Crushing hazard - Do not go under a raised attachment; stay away from raised equipment. A46803 Pinching and cutting hazard, keep clear of moving parts, do not leave the equipment running.

  • Page 13: Attaching The Attachment

    Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1:  Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position.

  • Page 14: Connecting And Disconnecting Hydraulic Hoses

    5.1 Connecting and disconnecting hydraulic hoses On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services.
  • Page 15 15 (28) Keep all fittings as clean as possible; use the protective caps on both the attachment and the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Never leave the hoses hanging on the ground; place the couplings onto the holder on the attachment.

  • Page 16: Operating The Attachment

    16 (28) 6. Operating the attachment Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment.

  • Page 17: Checks Before Use

    17 (28) Risk of cutting and entanglement from contact with moving parts - Never leave the equipment unattended while the engine is running. The attachment may start unexpectedly when removing a blockage, for example, if the hydraulic system is WARNING pressurized.

  • Page 18: Use

    18 (28) 6.2 Use Risk of crushing or entanglement from contact with moving parts - Never leave the equipment unattended while the engine is running. Follow safe stopping procedure. DANGER Before starting the Edge trimmer: Set and adjust the Edge trimmer to working position.

  • Page 19: Adjustments

    19 (28) Avoid hitting the ground hard with the cutter, and avoid pressing the attachment too hard against the ground. If the front wheels of the loader tend to lift off the ground, the attachment is pressed too hard against the ground. To avoid damaging the cutter disc, operate at shallower depth, and make multiple passes, if necessary.

  • Page 20: Mixing Depth

    20 (28) 6.3.3 Mixing depth Adjust and lock the setting according to operating conditions. Keep the mixer locked to prevent it from falling from the trimmer. Tighten the locking screw using only hands. Mixer installation The mixer can be locked on either side of the cutting disc as shown in the adjacent figure.

  • Page 21: Support Wheel (Optional Extra)

    21 (28) 6.3.5 Support wheel (Optional extra) The support wheel can be locked either transport or operation positon as shown in the adjacent figure. The correct operating position is reached when the wheel slightly touches the ground. For transport, the support wheel is lifted up.

  • Page 22: Storage

    22 (28) 6.5 Storage Uncouple and store the attachment on level ground. The best way to store the attachment is a place where it is protected from direct sunlight, rain, and extreme temperatures.  Avoid leaving the attachment laying directly on the ground. Place it on blocks of wood or on a pallet, for example.

  • Page 23: Maintenance And Service

    Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and...

  • Page 24: Cleaning The Attachment

    24 (28) 7.2 Cleaning the attachment Clean the attachment regularly to prevent accumulation of dirt which is more difficult to remove. A pressure washer and mild detergent can be used for cleaning. Do not use strong solvents, and do not spray directly at the hydraulic components, or at the labels on the attachment.

  • Page 25: Warranty Terms

    25 (28) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows:  Work costs are covered, if the repair is not performed at the factory.
  • Page 26 SFS-EN ISO 12100, SFS-EN ISO 4413 Mallit / Modeller / Models Avant Hydraulitoiminen reunaleikkuri; Avant-kuormaajan työlaite Hydraulisk kanttrimmare; arbetsredskap för Avant lastare A36621 Hydraulic edge trimmer; attachment for Avant loaders 5.12.2019 Ylöjärvi, Finland Risto Käkelä, Toimitusjohtaja / Verkställande direktör / Managing Director...
