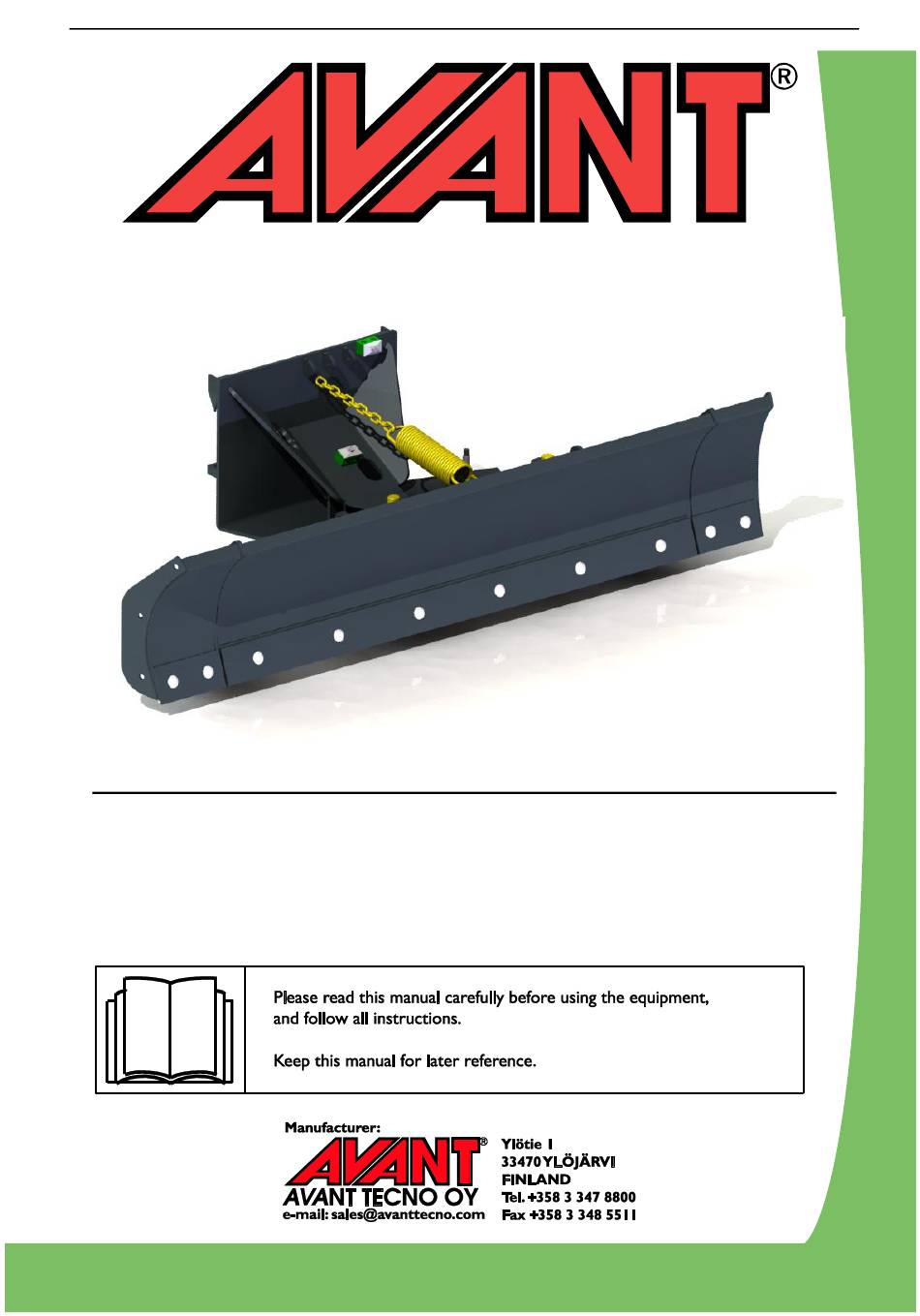

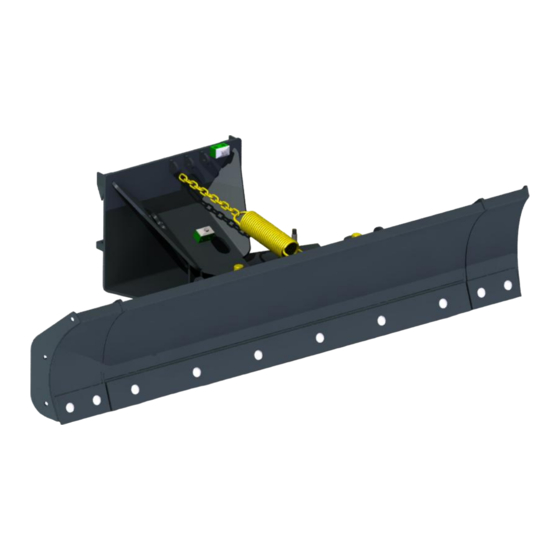

- Page 1 Dozer blade 1400 2015 1 2 Operator's Manual for Attachment Dozer blade 1400 Product number A36649 www.avanttecno.com...
- Page 2 Dozer blade 1400 2015 1 2...
-
Page 3: Table Of Contents
Dozer blade 1400 2015 1 2 CONTENTS 1. Foreword ................................. 4 2. Designed purpose of use ..........................5 3. Safety instructions for using the attachment ....................6 4. Technical specifications ..........................8 Safety labels and main components of the attachment ....................8 5. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Designed Purpose Of Use
2. Designed purpose of use The AVANT Dozer blade 1400 is an attachment suitable for use with AVANT multi purpose loaders shown in Table 1. The dozer blade is intended for ploughing snow, and can also be used for ploughing soil or sand. As standard, the blade is equipped with hydraulic slewing, which enables to choose the side to which the material will be transferred without interrupting work. -
Page 6: Safety Instructions For Using The Attachment
Never lift or move an unlocked attachment. The Dozer blade 1400 is designed to be used by one operator at a time. Do not let others near the danger area of the equipment when it is in use. - Page 7 Always lower the attachment to a safe position before leaving the drivers seat. Observe the local regulations concerning the use of the equipment on public roads. The loader may need to be registered for road use. Contact your local Avant dealer or local authorities for more information.
-
Page 8: Technical Specifications
8 (18) 4. Technical specifications Table 2 - Dozer blade 1400 - Technical specifications A36649 Product number Width: 1400 mm ± 30° Slewing angle: Hydraulic Weight: 100 kg Maximum input of hydraulic energy: max 20 MPa (225 bar) Compatible Avant loaders:... - Page 9 Operate attachment only from the driver’s seat. A420049 Attachment identification plate Table 4 - Main components of the Dozer blade 1400 Frame with quick coupling brackets Multi connector parking stand Hydraulic slewing cylinder Blade relese spring Skid shoes (standard equipment)
-
Page 10: Attaching The Attachment
Mount the attachment only on level surface. Never move or lift an attachment that has not been locked. Avant loaders with regular quick coupling system: Step 1: Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position. -
Page 11: Connecting And Disconnecting The Hydraulic Hoses
On 400-700 series loaders hydraulic hoses are connected using the multi connector system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services. - Page 12 12 (18) To disconnect the multi connector system, 1. Switch off the auxiliary hydraulics of the loader. 2. While pushing unlock button, turn the lever to disconnect the connector. Conventional quick couplings (alternative couplings for some loader models): Before connecting or disconnecting the standard quick couplings, the residual pressure must be released as shown below.
-
Page 13: Instructions For Use
13 (18) 6. Instructions for use Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment. -
Page 14: Blade Slewing
14 (18) Check the operating area before using the equipment: Make sure that there are no hidden obstacles under the snow, for example. Running into an obstacle may stop the machine suddenly and unexpectedly, regardless of the blade spring release system or the boom floating of the loader. 6.2.1 Blade slewing Move... -
Page 15: Blade Spring Release System
15 (18) 6.3 Blade spring release system For the safety of the operator, the blade is equipped with a spring release mechanism. When the blade edge hits an obstacle, the blade will tilt, allowing to avoid sudden stopping of the machine. The blade moves slightly also during normal use;... -
Page 16: Maintenance And Service
Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and experience about hydraulic assemblies and how to perform the repairing safely. -
Page 17: Cleaning The Attachment
8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: ... - Page 18 Dozer blade 1400 2015 1 2 EY-vaatimustenmukaisuusvakuutus EG-försäkran om överensstämmelse EU samsvarserklæring EF-overensstemmelseserklæring EC Declaration of Conformity EG-Konformitätserklärung Déclaration de conformité CE Valmistaja / Tillverkare / Produsent / Producent / Manufacturer / Hersteller AVANT TECNO OY Fabricant: Osoite / Adress / Adresse / Address / Adresse: Ylötie 1...
