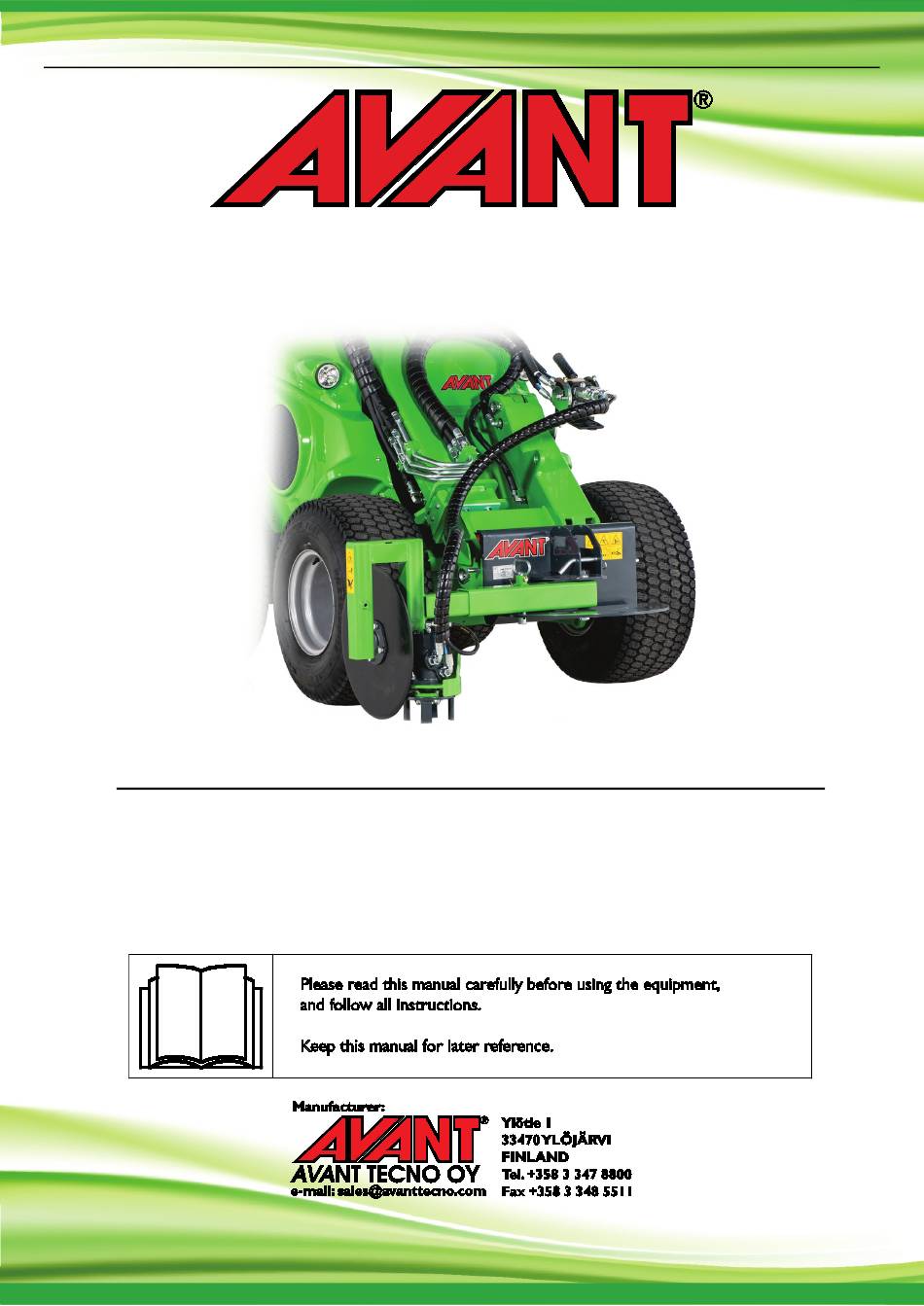

- Page 1 English Edge Trimmer 2024 1 Operator's Manual for Attachment Edge Trimmer Product number A36621 Options Support wheel A36699 www.avanttecno.com A439073 2024 1 EN 2016-...
- Page 2 Edge Trimmer 2024 1...
-
Page 3: Table Of Contents
Edge Trimmer 2024 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ........................... 5 2. DESIGNED PURPOSE OF USE......................6 3. SAFETY INSTRUCTIONS FOR USING THE EDGE TRIMMER ............. 7 Personal protective equipment ..........................9 Safe shutdown procedure ............................9 4. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Warning Symbols Used In This Manual
5 (30) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”... -
Page 6: Designed Purpose Of Use
2. Designed purpose of use The AVANT Edge trimmer is an attachment that is suitable for use with AVANT compact loaders that are shown in Table 1. The The Edge trimmer is intended for trimming the edges of lawns, hedges, flower beds etc. -
Page 7: Safety Instructions For Using The Edge Trimmer
7 (30) 3. Safety instructions for using the edge trimmer Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. - Page 8 8 (30) Shut down the loader and place the attachment to a safe position as shown in Safe stopping procedure before any cleaning, maintenance, or adjustments. Pay attention to the surroundings and any other persons and machines moving in the vicinity.
-
Page 9: Personal Protective Equipment
9 (30) 3.1 Personal protective equipment Remember to wear proper personal protective equipment: The noise level at the driver's seat may exceed 85 dB(A) depending on loader model and operating cycle. Extended exposure to loud noise can cause hearing impairment. Wear hearing protection while working with the loader. ... -
Page 10: Technical Specifications
Minimum width in working position: 1080 mm Weight: 80 kg Recommended hydraulic flow: 15-25 l/min, 20,0 MPa (200 bar) Maximum input of hydraulic energy: 40 l/min, 20,0 MPa (200 bar) Suitable Avant loaders: See Table 1 Options Support wheel: A36699... -
Page 11: Safety Labels And Main Components Of The Attachment
11 (30) 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment. Replace any unclear or missing label. New labels are available via your retailer or contact information provided on the cover. - Page 12 A452799 Hydraulic oil flow 20 l/min A420014 Attachment identification plate Table 4 - Edge Trimmer - Main components Frame with Avant quick coupling brackets Cutting disc Mixer and its cover Hydraulic motor of the mixer Mixing depth adjustment Extendable trimmer arm...
-
Page 13: Lifting
13 (30) 4.2 Lifting Make sure that the attachment is properly secured against unintended movements during lifting operation. Use appropriate type of lifting accessories, lifting straps, chains or hooks, for example. Do not use lifting accessories if there are signs of damage, deformation, or otherwise unsafe conditions. -
Page 14: Attaching The Attachment
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the locking pins of the quick coupling plate of the loader up, and turn them backwards into the slot, so that they are locked in the upper position. -
Page 15: Connecting And Disconnecting Hydraulic Hoses
5.1 Connecting and disconnecting hydraulic hoses On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an older model Avant 300-700 series loader with the conventional quick couplers, and you want to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services. - Page 16 16 (30) Keep all fittings as clean as possible; use the protective caps on both the attachment and the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Never leave the hoses hanging on the ground; place the couplings onto the holder on the attachment.
-
Page 17: Operating The Attachment
17 (30) 6. Operating the attachment Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment. -
Page 18: Safety Distance
18 (30) 6.1 Safety distance The minimum safety distance of the attachment is 2 metres from the machine. Do not let bystanders get any closer than 2 metres from the attachment. Stop the attachment if others get within the safety distance. Entanglement hazard - Keep away from moving parts. -
Page 19: Checks Before Use
19 (30) 6.2 Checks before use Check that the trimmer and the cutting disc can rotate freely and that there is no string or other foreign material around them. Use only when all pins are locked and secured in place. ... -
Page 20: Use
20 (30) 6.4 Use Risk of crushing or entanglement from contact with moving parts - Never leave the equipment unattended while the engine is running. Follow safe stopping procedure. DANGER Before starting the Edge trimmer: Set and adjust the Edge trimmer to working position. -
Page 21: Adjustments
21 (30) Avoid hitting the ground hard with the cutter, and avoid pressing the attachment too hard against the ground. If the front wheels of the loader tend to lift off the ground, the attachment is pressed too hard against the ground. To avoid damaging the cutter disc, operate at shallower depth, and make multiple passes, if necessary. -
Page 22: Mixing Depth
22 (30) 6.5.3 Mixing depth Adjust and lock the setting according to operating conditions. Keep the mixer locked to prevent it from falling from the trimmer. Tighten the locking screw (1) using only hands. Mixer installation The mixer can be locked on either side of the cutting disc as shown in the adjacent figure. -
Page 23: Support Wheel (Option)
23 (30) 6.5.5 Support wheel (Option) The support wheel can be locked either transport or operation positon as shown in the adjacent figure. The correct operating position is reached when the wheel slightly touches the ground. For transport, the support wheel is lifted up. -
Page 24: Storage
24 (30) Risk of tipping over - Keep the loader stable. Always transport the attachment as low and close to the ground as possible. Keep the telescopic boom retracted during transport drive. WARNING 6.8 Storage Uncouple and store the attachment on level ground. The best way to store the attachment is a place where it is protected from direct sunlight, rain, and extreme temperatures. -
Page 25: Maintenance And Service
Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and... -
Page 26: Cleaning The Attachment
26 (30) 7.2 Cleaning the attachment Clean the attachment regularly to prevent accumulation of dirt which is more difficult to remove. A pressure washer and mild detergent can be used for cleaning. Do not use strong solvents, and do not spray directly at the hydraulic components, or at the labels on the attachment. -
Page 27: Warranty Terms
27 (30) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory. - Page 28 SFS-EN ISO 12100, SFS-EN ISO 4413 Mallit / Modeller / Models Avant Hydraulitoiminen reunaleikkuri; Avant-kuormaajan työlaite Hydraulisk kanttrimmare; arbetsredskap för Avant lastare A36621 Hydraulic edge trimmer; attachment for Avant loaders 2.5.2024 Ylöjärvi, Finland Jani Käkelä, Toimitusjohtaja / Verkställande direktör /...
