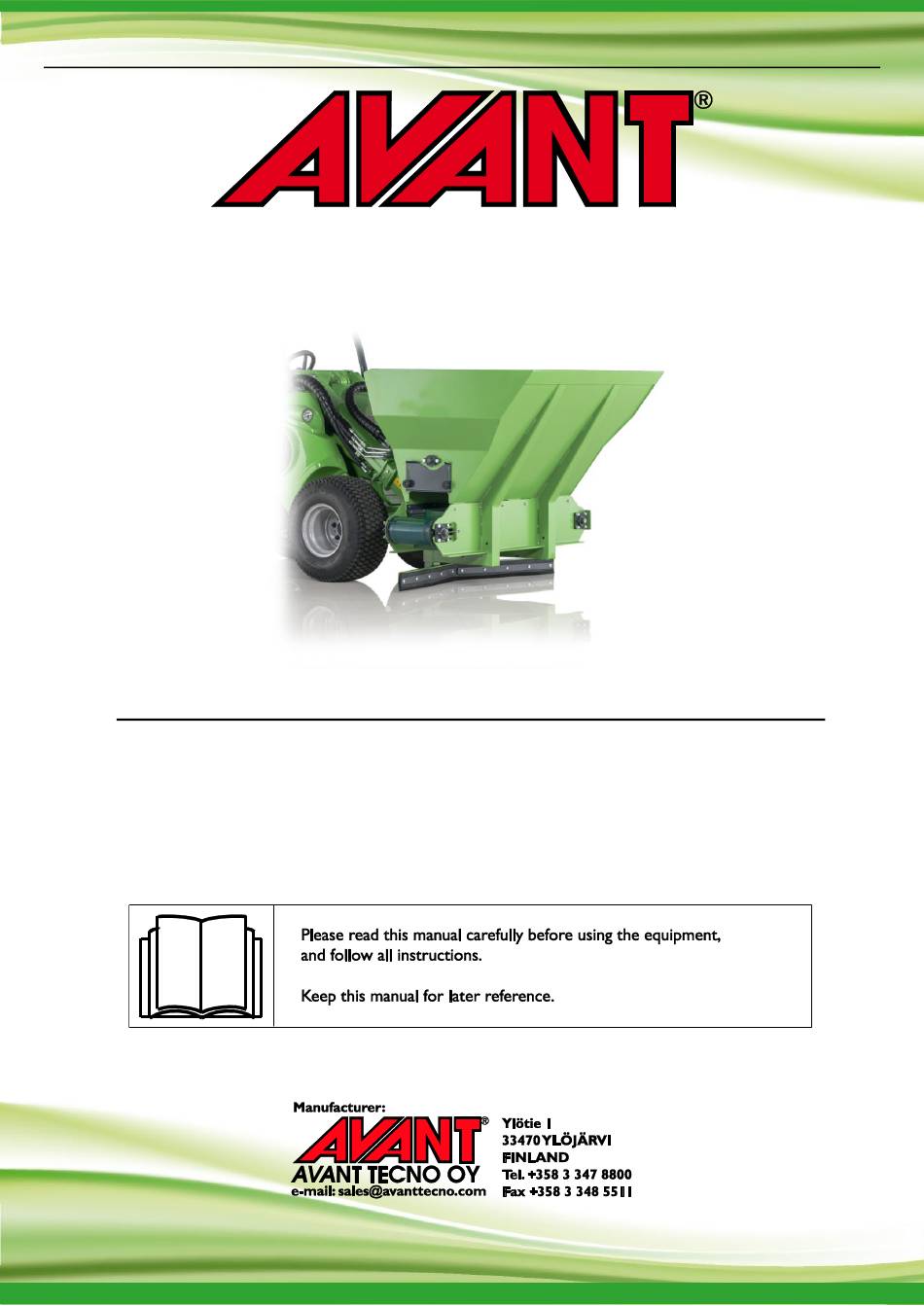

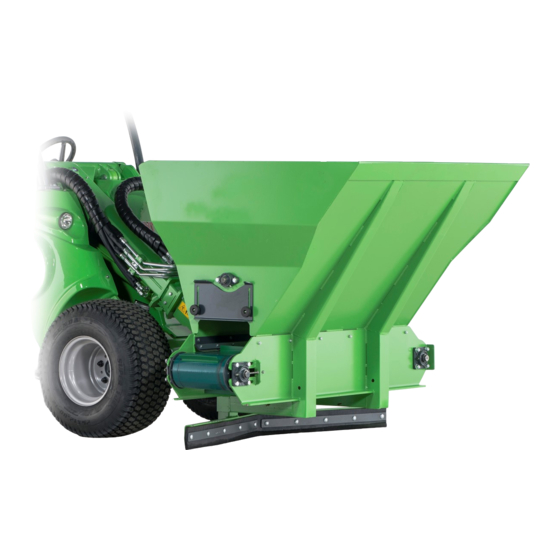

- Page 1 English Bedding distributor bucket 2016 1 Operator's Manual for Attachment Bedding distributor bucket Product number: A36532 www.avanttecno.com...
- Page 2 Bedding distributor bucket 2016 1...
-
Page 3: Table Of Contents
Bedding distributor bucket 2016 1 CONTENTS 1. FOREWORD ............................4 2. DESIGNED PURPOSE OF USE......................5 3. SAFETY INSTRUCTIONS FOR USING THE BUCKET ..............6 4. TECHNICAL SPECIFICATIONS ....................... 10 Safety labels and main components of the attachment ..................10 5. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Designed Purpose Of Use
Spare parts must be identical with original specifications, which can be ensured by using only original spare parts. A separate spare parts catalogue may be available, consult your Avant dealer. Familiarise yourself with the manual's instructions regarding service and maintenance. Please contact your AVANT retailer if you have additional questions about the operation or maintenance of the equipment, or if you require spare parts or maintenance services. -
Page 6: Safety Instructions For Using The Bucket
6 (26) 3. Safety instructions for using the bucket Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. - Page 7 7 (26) Operate the controls of the loader in a slow and calm manner. Be careful when lifting load to high level or lifting load from high. Avoid sudden changes in speed or direction to maintain balance of the loader especially when handling heavy loads. Drive slowly and carefully especially on inclined terrain or slippery surfaces.
- Page 8 8 (26) Remember to wear proper protective clothing: The noise level at the driver's seat may exceed 85 dB(A). Wear hearing protection while working with the loader. Wear protective gloves. Wear safety boots whenever working with the loader. ...
- Page 9 9 (26) Safe stopping of the attachment, before going near the attachment: WARNING: Always stop the attachment following safe stopping procedure before leaving the driver's seat. Safe stopping procedure prevents all unintentional movements of the attachment. Note that the loader boom can move down even if the engine of the loader is turned off.
-
Page 10: Technical Specifications
30-40 l/min Maximum input of hydraulic energy: 50 l/min, 20 MPa (200 bar) Suitable Avant loaders: See Table 1 4.1 Safety labels and main components of the attachment Listed below are the labels and markings, which must be visible on the equipment. Replace the warning labels, if they have become unclear or if they have detached completely. - Page 11 (2 m). Attachment identification plate Table 4 - Main components of the Bedding distributor bucket Frame with Avant quick attach brackets Multiconnector and holder for multiconnector Belt discharge Discharge chute, adjustable opening (on both sides of...
-
Page 12: Attaching The Attachment
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: ... -
Page 13: Connecting And Disconnecting Hydraulic Hoses
5.1 Connecting and disconnecting hydraulic hoses On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services. - Page 14 14 (26) Connecting the multi connector system: 1. Align the pins of the attachment connector with corresponding holes of the loader connector. The multi connector will not connect if the attachment connector is upside down. 2. Connect and lock the multi connector by turning the lever towards the loader.
-
Page 15: Storage
15 (26) 5.2 Storage Uncouple and store the attachment on level ground, but avoid leaving the attachment laying directly on against the ground. Place it on blocks of wood or on a pallet, for example. The best way to store the attachment is a place where it is protected from direct sunlight, rain, and extreme temperatures. -
Page 16: Using The Bucket
16 (26) 6. Using the bucket Practise the use of the attachment and its controls in an open and safe area. If you are unfamiliar with the loader in use, it is recommended to practice its use without any attachments. DANGER: Risk of entanglement - Always stop the attachment before leaving the driver’s seat. -
Page 17: Checks Before Use
17 (26) 6.1 Checks before use Drive carefully on uneven terrain and note the effect of heavy load at the front of the loader to the stability and handling of the loader. Check that the attachment is intact and that the rotating parts can rotate freely, and that there is no string or other foreign material coiled around the rotating parts. -
Page 18: Operating On Inclined Terrain
18 (26) The dispenser is operated by moving the auxiliary hydraulics control lever of the loader (or by pressing buttons of the electric joystick, if equipped). Hold the bucket in approximately upright position, close to the loader (telescopic boom retracted), and close to the ground while driving. -
Page 19: Adjusting Dispensing Rate
19 (26) 6.3 Adjusting dispensing rate The belt speed and material distribution rate are adjusted by the loader engine RPM. To adjust the dispenser bucket for different materials, move the cover of the discharge opening up or down. Correct adjustment of the opening depends on material being used and the engine RPM of the loader. -
Page 20: Filling The Bucket
20 (26) 6.5 Filling the bucket The bucket can be filled from a pile like a normal bucket. Correct working method is important when lifting material from a pile, as lifting material from a pile requires the most power from the loader. Especially when using a bucket with a long base, the correct working method should be observed for the best performance of the equipment. -
Page 21: Maintenance And Service
Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and... -
Page 22: Inspections, Maintenance And Service
22 (26) 7.2 Inspections, maintenance and service It is recommended to empty the bucket completely right after using it. Do not store the bucket directly against the ground; place it on blocks of wood or on a pallet, for example. Leave the attachment to a position where water will not stay in the attachment. -
Page 23: Warranty Terms
23 (26) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory. - Page 24 Hydraulisk skovl; redskab til Avant Minilæssere A36532 Hydraulic bucket; attachment for Avant loaders Hydraulische Schaufel; Anbaugerät für Avant Radlader Godet à commande hydraulique destinée à être utilisée avec les chargeuses Avant 6.4.2016 Ylöjärvi, Finland Risto Käkelä, Toimitusjohtaja / Verkställande direktör / Administrerende direktør /...
