Weed brush 2019 1
Operator's Manual for Attachment
Weed brush
Product number
A36594
www.avanttecno.com
A439800 2019 1 EN 2016-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A36594 and is the answer not in the manual?

Questions and answers

Related Manuals for AVANT A36594

Summary of Contents for AVANT A36594

  • Page 1 English Weed brush 2019 1 Operator's Manual for Attachment Weed brush Product number A36594 www.avanttecno.com A439800 2019 1 EN 2016-...
  • Page 2 Weed brush 2019 1...

  • Page 3: Table Of Contents

    Weed brush 2019 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ........................... 5 2. DESIGNED PURPOSE OF USE......................6 3. SAFETY INSTRUCTIONS FOR USING THE EDGE TRIMMER ............. 7 4. TECHNICAL SPECIFICATIONS ....................... 10 Safety labels and main components of the attachment ..................10 5.

  • Page 4: Foreword

    If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer.

  • Page 5: Warning Symbols Used In This Manual

    5 (26) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”...

  • Page 6: Designed Purpose Of Use

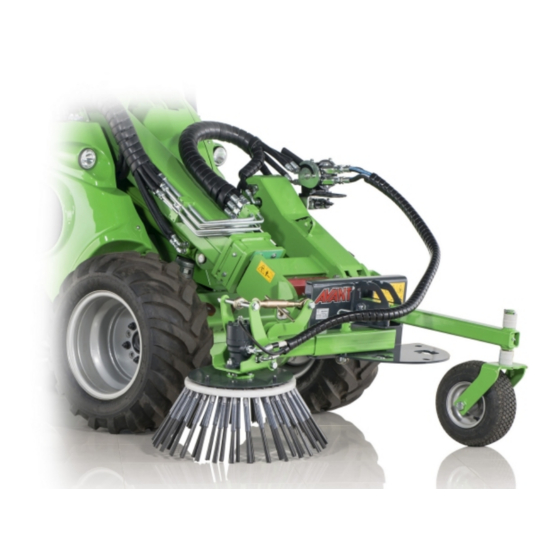

    2. Designed purpose of use This AVANT Weed brush is an attachment that is suitable for use with AVANT multi purpose loaders that are shown in Table 1. The Weed brush is an efficient tool for removal of weeds on all kinds of paved areas. The manually adjustable, telescoping arm of the rotating brush makes it easy to remove unwanted weed from pathways and around cornerstones, and allows working near buildings.

  • Page 7: Safety Instructions For Using The Edge Trimmer

    7 (26) 3. Safety instructions for using the edge trimmer Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage.
  • Page 8 8 (26)  Shut down the loader and place the attachment to a safe position as shown in Safe stopping procedure before any cleaning, maintenance, or adjustments.  Pay attention to the surroundings and any other persons and machines moving in the vicinity.
  • Page 9 9 (26) Remember to wear proper personal protective equipment:  The noise level at the driver's seat may exceed 85 dB(A) depending on loader model and operating cycle. Extended exposure to loud noise can cause hearing impairment. Wear hearing protection while working with the loader. ...

  • Page 10: Technical Specifications

    85 kg Recommended hydraulic flow: 15-25 l/min, 20,0 MPa (200 bar) Maximum input of hydraulic energy: 40 l/min, 20,0 MPa (200 bar) Suitable Avant loaders: See Table 1 Options Heavy duty wire rope brush A422665 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment.
  • Page 11 11 (26) Table 3 - Decal locations and warning messages Decal Warning message A46771 Misuse hazard - Read instructions before use. A46772 Crushing hazard - Do not go under a raised attachment; stay away from raised equipment. A46799 Beware of thrown objects; keep a safe distance from the equipment (2 m minimum, up to 30 m).

  • Page 12: Attaching The Attachment

    Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1:  Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position.

  • Page 13: Connecting And Disconnecting Hydraulic Hoses

    5.1 Connecting and disconnecting hydraulic hoses On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services.
  • Page 14 14 (26) Keep all fittings as clean as possible; use the protective caps on both the attachment and the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Never leave the hoses hanging on the ground; place the couplings onto the holder on the attachment.

  • Page 15: Operating The Attachment

    15 (26) 6. Operating the attachment Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment.

  • Page 16: Use

    16 (26) Never operate the loader or attachments while under the influence of alcohol, drugs, medication that  may impair judgement or cause drowsiness, or if not otherwise medically fit to operate the equipment. Remember correct working methods and avoid leaving the driver’s seat unnecessarily.Practise the ...

  • Page 17: Using Boom Floating

    17 (26) Operating the brush: As standard, the weed brush will rotate counter-clockwise when the auxiliary hydraulics control lever is moved to its locking position (or red button electric joystick depressed, if equipped). In correct operating position only the front corner of the brush is in contact with ground.

  • Page 18: Brush Position

    18 (26) 6.3.1 Brush position Recommended operating position: In correct operating position the brush is tilted both sideways and forward. as shown in following figures. This ensures that material is moved efficiently aside, and not rotated around with the brush. Sideways tilt: Adjust the sideways tilt so that the outer edge of the brush is angled as shown in...

  • Page 19: Orientation

    19 (26) 6.3.2 Orientation The brush arm can can be locked on either side, for easier use in different operating areas. For transport, lock the arm on the middle position and lock the support wheel to its upper position. Left side Right side 6.3.3 Side reach...

  • Page 20: Support Wheel

    20 (26) 6.3.4 Support wheel The support wheel can be locked either transport or operation positon as shown in the adjacent figure. The correct operating position is reached when the wheel slightly touches the ground. For transport, the support wheel is lifted up. Make sure to lock the support wheel with pin after reaching the desired position.

  • Page 21: Storage

    21 (26) 6.5 Storage Uncouple and store the attachment on level ground. The best way to store the attachment is a place where it is protected from direct sunlight, rain, and extreme temperatures.  Avoid leaving the attachment laying directly on the ground. Place it on blocks of wood or on a pallet, for example.

  • Page 22: Maintenance And Service

    Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and...

  • Page 23: Cleaning The Attachment

    23 (26) 7.2 Cleaning the attachment Clean the attachment regularly to prevent accumulation of dirt which is more difficult to remove. A pressure washer and mild detergent can be used for cleaning. Do not use strong solvents, and do not spray directly at the hydraulic components, or at the labels on the attachment.

  • Page 24: Warranty Terms

    24 (26) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows:  Work costs are covered, if the repair is not performed at the factory.
  • Page 25 SFS-EN ISO 12100, SFS-EN ISO 4413 Mallit / Modeller / Models Avant Hydraulitoiminen rikkaruohoharja; Avant-kuormaajan työlaite Hydraulisk ogräsborste; arbetsredskap för Avant lastare A36594 Hydraulic weed brush; attachment for Avant loaders 30.12.2019 Ylöjärvi, Finland Risto Käkelä, Toimitusjohtaja / Verkställande direktör / Managing Director...
