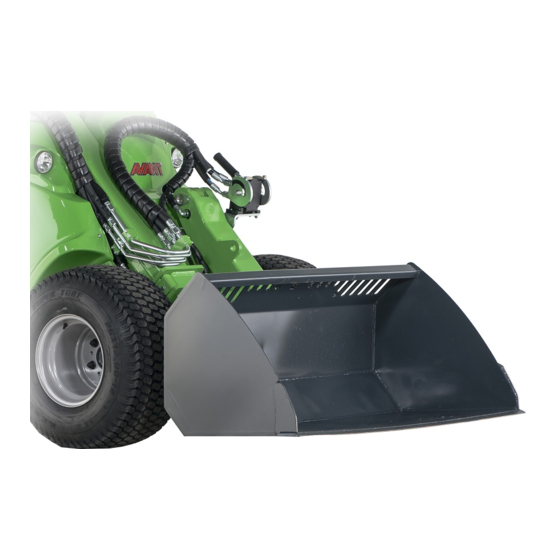

General buckets, light material buckets, and levelling buckets for Avant loaders
Product number
General Bucket 200
series 2
General Bucket
With teeth
General bucket, HD
With teeth
General bucket,
XL-HD
Light material bucket
Levelling bucket
www.avanttecno.com
A430244 2019 1 EN 2016-
Operator's Manual for Attachment
200 series 1
900 mm
A36711
A33032
(960 mm)
A36716
Bucket
1050 mm 1150 mm 1300 mm 1350 mm 1450 mm 1600 mm 1800 mm
A36702
A36710
A36709
A36698
A36780
A36779
A36778
A36713
A36747
A36715
A36714
Bucket 2019 1
A36996
A36997
A36712
A36535
A36746
A36745
A437578
A36703
A36476
A36717
A36706
A36343
A437601

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A36702 and is the answer not in the manual?

Questions and answers

Related Manuals for AVANT A36702

Summary of Contents for AVANT A36702

  • Page 1 English Bucket 2019 1 Operator's Manual for Attachment Bucket General buckets, light material buckets, and levelling buckets for Avant loaders Product number 200 series 1 900 mm 1050 mm 1150 mm 1300 mm 1350 mm 1450 mm 1600 mm 1800 mm...
  • Page 2 Bucket 2019 1 Bucket profiles: A36702 A36710 A36709 A36698 A36715 A36714 A36703 A36476 A36343 A36713 A36712 A36535 A437578 A437601 A36717 A36706 A33032...

  • Page 3: Table Of Contents

    Bucket 2019 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ..........................5 2. DESIGNED PURPOSE OF USE ......................6 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............8 4. TECHNICAL SPECIFICATIONS ......................11 Safety labels and main components of the attachment ..................14 5.

  • Page 4: Foreword

    If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer.

  • Page 5: Warning Symbols Used In This Manual

    5 (24) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”...

  • Page 6: Designed Purpose Of Use

    Original Avant buckets offer excellent visibility to the bucket edge and they are designed to meet the capabilities of Avant loaders in optimum way. The renewed range of buckets gives great flexibility to choose the best bucket for different applications and loader models.
  • Page 7 (•), full performance may not be achieved. Additional counterweights may also be required. For compatibility with a model not shown in table, contact your Avant dealer. * The buckets marked with the asterisk should be used as light material buckets with the 200 series loaders.

  • Page 8: Safety Instructions For Using The Attachment

    8 (24) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage.
  • Page 9 9 (24)  Observe maximum load indicated in the operator’s manual of the loader. Be especially careful when the load sensor indicator is activated, if your loader is fitted with a load sensor system.  Make sure that the surface can bear the total load. Also follow the correct tyre WARNING pressure settings.
  • Page 10 10 (24) Remember to wear proper personal protective equipment:  The noise level at the driver's seat may exceed 85 dB(A) depending on loader model and operating cycle. Extended exposure to loud noise can cause hearing impairment. Wear hearing protection while working with the loader. ...

  • Page 11: Technical Specifications

    11 (24) 4. Technical specifications Table 2 - General buckets - Technical data A33032 A36702 A36710 A36780 A36709 A36779 A36698 A36778 Product number Working width: 890 mm 1010 mm 1050 mm 1150 mm 1300 mm Number of teeth: Total width (A):...
  • Page 12 420 l 460 l With grille: Struck capacity: 210 l 230 l 260 l With grille: 310 l 350 l 390 l Intended AVANT See Table 1 loader models: Teeth cover: A417320 A417321 A419977 A437578 Product number Working width: 1600 mm...
  • Page 13 450 l 660 l 340 l 390 l 560 l 610 l 700 l 1050 l With grille: Intended AVANT See Table 1 loader models: Table 5 - Levelling buckets - Technical data A36717 A36706 Product number Working width: 1450 mm...

  • Page 14: Safety Labels And Main Components Of The Attachment

    14 (24) 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment. Replace any unclear or missing label. New labels are available via your retailer or contact information provided on the cover.

  • Page 15: Attaching The Attachment

    15 (24) 5. Attaching the attachment Attaching the attachment to the loader is quick and easy, but it must be done carefully. The attachment is mounted to the loader boom by using the quick attach plate on the loader boom and the counterpart on the attachment.
  • Page 16 16 (24) Step 3:  Lift the boom slightly – pull the boom control lever backward to raise the attachment off the ground.  Turn the boom control lever left to turn the bottom section of the quick attach plate onto the attachment.

  • Page 17: Instructions For Use

    17 (24) 6. Instructions for use Practise the use of the attachment and the controls of the loader in a safe area. If you are unfamiliar with the particular loader model, it is recommended to practice its use without any attachments. Risk of tipping over - Avoid overload.

  • Page 18: Using A Bucket

    18 (24) 6.2 Using a bucket Correct working method is important when lifting material from a pile, as lifting material from a pile requires the most power from the loader. Use high engine rpm and read the instructions how to operate the loader correctly from the operator’s manual of the loader.
  • Page 19 19 (24) Keep the loader stable. Always transport the bucket as low and close to the ground as possible. Lift CAUTION only at unloading location. Keep the telescopic boom retracted during drive. Risk of sudden stop - Drive slow when bucket is placed against the ground. Avoid hazards related to sudden stopping of the loader.

  • Page 20: Material Handling

    20 (24) 6.3 Material handling Use maximum load indicated in the diagram of the operator’s manual of the loader as a guideline. Remember that the actual load carrying capacity varies according to operating conditions, especially unevenness of operating area has a great effect. Be especially careful when the load sensor indicator is activated. Also, make sure that the ground surface is firm and follow recommended tire pressures.

  • Page 21: Teeth Cover Plate

    21 (24) 6.4 Teeth cover plate For buckets with teeth, an optional protection plate is available. The cover plate is intended to be used when operating the loader in areas where the teeth could make an accident more serious, such as when operating on road traffic areas.

  • Page 22: Inspections, Maintenance And Service

    22 (24) 7. Inspections, maintenance and service It is recommended to empty the bucket completely right after using it. Do not store the bucket directly against the ground; place it on blocks of wood or on a pallet, for example. Leave the attachment to a position where water will not stay in the attachment.

  • Page 23: Warranty Terms

    23 (24) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows:  Work costs are covered, if the repair is not performed at the factory.
