AVANT A36221 Operator's Manual For Attachment

Big bag transporter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

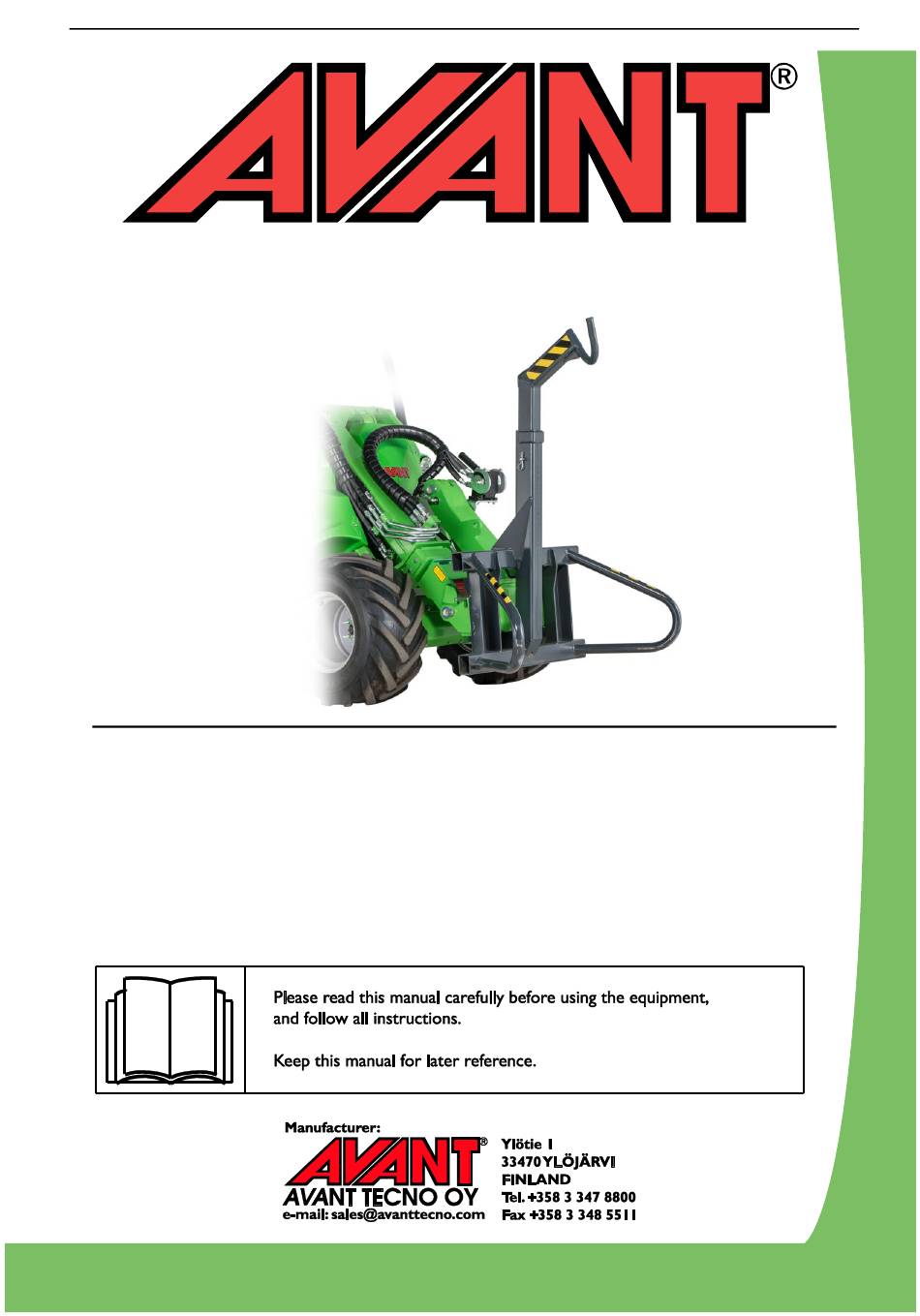

Big bag transporter 2015 1
Operator's Manual for Attachment
Big bag transporter
Product number
For 400 to 700 and R series loaders
A36221
www.avanttecno.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A36221 and is the answer not in the manual?

Questions and answers

Related Manuals for AVANT A36221

Summary of Contents for AVANT A36221

  • Page 1 Big bag transporter 2015 1 Operator's Manual for Attachment Big bag transporter Product number For 400 to 700 and R series loaders A36221 www.avanttecno.com...
  • Page 2 Big bag transporter 2015 1...

  • Page 3: Table Of Contents

    Big bag transporter 2015 1 CONTENTS 1. Foreword ................................. 4 2. Designed purpose of use ..........................5 3. Safety instructions for using the attachment ....................6 4. Technical specifications ..........................9 Safety labels and main components of the attachment ....................9 5.

  • Page 4: Foreword

    If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer.

  • Page 5: Designed Purpose Of Use

    2. Designed purpose of use The AVANT Big bag transporter is an attachment suitable for use with AVANT multi purpose loaders shown in Table 1. With the big bag transporter the lifting and transporting of big, heavy bags is convenient and easy.

  • Page 6: Safety Instructions For Using The Attachment

    6 (18) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage.
  • Page 7 7 (18)  Operate the controls of the loader in a slow and calm manner. Be careful when lifting load to high level or lifting load from high. Avoid sudden changes in speed or direction to maintain balance of the loader especially when handling heavy loads. Drive slowly and carefully especially on inclined terrain or slippery surfaces.
  • Page 8 8 (18) Remember to wear proper protective clothing:  The noise level at the driver's seat may exceed 85 dB(A). Wear hearing protection while working with the loader.  Wear protective gloves.  Wear safety boots whenever working with the loader. Safe position of the attachment, before going near the loader boom Always set the attachment to a safe position before going near the attachment.

  • Page 9: Technical Specifications

    Weight: 60 kg Maximum allowed load: 900 kg Suitable Avant loaders: See Table 1 4.1 Safety labels and main components of the attachment Listed below are the labels and markings, which must be visible on the equipment. Replace the warning labels, if they have become unclear or if they have detached completely.
  • Page 10 10 (18) Table 3 - Decal locations and warning messages Decal Warning message A46771 Read instructions before use. A46772 Crushing hazard - Do not go under a raised attachment; stay away from raised equipment. A46803 Pinching and crushing hazard, keep clear of moving parts, do not leave the equipment running.

  • Page 11: Attaching The Attachment

    11 (18) 5. Attaching the attachment Attaching the attachment to the loader is quick and easy, but it must be done carefully. The attachment is mounted to the loader boom by using the quick attach plate on the loader boom and the counterpart on the attachment.
  • Page 12 12 (18) An attachment that has not been completely locked to the loader may fall on the boom or towards the operator, or fall under the loader during driving, causing loss of control of the loader. Never move or lift an attachment that has not been locked.

  • Page 13: Instructions For Use

    13 (18) 6. Instructions for use Practise the use of the attachment and its controls in an open and safe area. If you are unfamiliar with the loader in use, it is recommended to practice its use without any attachments. Avoid overturning of the machine.

  • Page 14: Checks Before Use

    14 (18) 6.1 Checks before use  Before use check that the attachment and its hook are in good condition.  Check that the lifting ropes of the bag are intact. Use all of the lifting links of the bag for lifting. Do not tie the ropes.
  • Page 15 15 (18) Lift only at unloading location Drive the loader close to the place or machine to which the bag is intended to unloaded. Do not lift the bag until next to the intended unloading place. Use the telescopic boom of the loader only if it is necessary to reach the equipment to which the bag is unloaded.

  • Page 16: Material Handling

    16 (18) 6.2.1 Material handling Use maximum load indicated in the diagram of the operator’s manual of the loader as a guideline. Remember that the actual load carrying capacity varies according to operating conditions, especially unevenness of operating area has a great effect. Be especially careful when the load sensor indicator is activated. Also, make sure that the ground surface is firm and follow recommended tire pressures.

  • Page 17: Inspections, Maintenance, And Service

    For more information about repairs contact your nearest service point. 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: ...
