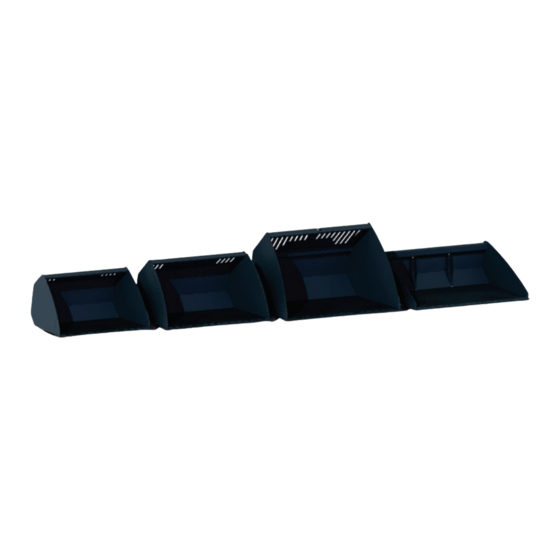

General buckets, light material buckets, and levelling buckets for Avant loaders
Product number
General Bucket 200
series 2
General Bucket
With teeth
General bucket, HD
With teeth
General bucket,
XL-HD
Light material
bucket
Levelling bucket
Levelling bucket,
XL-HD
www.avanttecno.com
A430244 2022 1 EN 2016-
Operator's Manual for Attachment
900 mm
1050 mm 1150 mm 1300 mm 1350 mm 1450 mm 1600 mm 1800 mm 2000 mm
A36702
A36711
A36710
A36709
A36716
A36780
A36779
A36715
Bucket
A36698
A36996
A36778
A36997
A36713
A36712
A36747
A36746
A36714
A36703
A36717
Bucket 2022 1
A36535
A36745
A437578
A36343
A36476
A435096
A437601
A36706
A445616 A443761
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AVANT General Bucket 200 2 Series
Summary of Contents for AVANT General Bucket 200 2 Series
- Page 1 English Bucket 2022 1 Operator's Manual for Attachment Bucket General buckets, light material buckets, and levelling buckets for Avant loaders Product number 900 mm 1050 mm 1150 mm 1300 mm 1350 mm 1450 mm 1600 mm 1800 mm 2000 mm...
- Page 2 Bucket 2022 1 Bucket profiles: A36702 A36710 A36709 A36698 A36715 A36714 A36703 A36476 A36343 A36713 A36712 A36535 A437578 A437601 A435096 A36717 A36706 A445616 A443761...
-
Page 3: Table Of Contents
Bucket 2022 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ........................... 5 2. DESIGNED PURPOSE OF USE......................6 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............8 Personal protective equipment ..........................10 Safe shutdown procedure ............................10 4. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Warning Symbols Used In This Manual
5 (24) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”... -
Page 6: Designed Purpose Of Use
Original Avant buckets offer excellent visibility to the bucket edge and they are designed to meet the capabilities of Avant loaders in optimum way. The range of buckets gives great flexibility to choose the best bucket for different applications and loader models. - Page 7 (•), full performance may not be achieved. Additional counterweights may also be required. For compatibility with a model not shown in table, contact your Avant dealer. * The buckets marked with the asterisk should be used as light material buckets with the 200 series loaders.
-
Page 8: Safety Instructions For Using The Attachment
8 (24) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. - Page 9 9 (24) Observe maximum load indicated in the operator’s manual of the loader. Be especially careful when the load sensor indicator is activated, if your loader is fitted with a load sensor system. Make sure that the surface can bear the total load. Also follow the correct tyre WARNING pressure settings.
-
Page 10: Personal Protective Equipment
10 (24) Risk of crushing - Never allow anyone to get under a lifted attachment or loader boom. Keep in mind that the loader boom can be lowered or tilted even if the engine has WARNING been shut down (crushing hazard). The loader is not intended to be left to keep a load elevated for longer periods. -
Page 11: Technical Specifications
With grille: Struck capacity: 90 l 140 l 160 l 180 l 120 l 190 l 210 l 240 l With grille: Intended AVANT 200 series 2 See Table 1 loader models: Teeth cover: A417347 A420132 A417320 A36996 A36997 Product number... - Page 12 370 l 420 l 460 l Struck capacity: 210 l 230 l 260 l 310 l 350 l 390 l With grille: Intended AVANT See Table 1 loader models: Teeth cover: A417320 A417321 A419977 A437578 Product number Working width: 1600 mm...
- Page 13 730 l With grille: 340 l 390 l 560 l 610 l 700 l 1050 l 1170 l Intended AVANT See Table 1 loader models: Table 5 - Levelling buckets - Technical data A36717 A36706 A445616 A443761 Product number Working width:...
-
Page 14: Safety Labels And Main Components Of The Attachment
14 (24) 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment. Replace any unclear or missing label. New labels are available via your retailer or contact information provided on the cover. -
Page 15: Attaching The Attachment
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the locking pins of the quick coupling plate of the loader up, and turn them backwards into the slot, so that they are locked in the upper position. - Page 16 If your loader is not listed in Table 1 on page , ask your Avant dealer before using this attachment.
-
Page 17: Instructions For Use
17 (24) 6. Instructions for use Practise the use of the attachment and the controls of the loader in a safe area. If you are unfamiliar with the particular loader model, it is recommended to practice its use without any attachments. Risk of tipping over - Avoid overload. -
Page 18: Using A Bucket
18 (24) 6.2 Using a bucket Correct working method is important when lifting material from a pile, as lifting material from a pile requires the most power from the loader. Use high engine rpm and read the instructions how to operate the loader correctly from the operator’s manual of the loader. - Page 19 19 (24) Keep the loader stable. Always transport the bucket as low and close to the ground as possible. Lift CAUTION only at unloading location. Keep the telescopic boom retracted during drive. Risk of sudden stop - Drive slow when bucket is placed against the ground. Avoid hazards related to sudden stopping of the loader.
-
Page 20: Material Handling
20 (24) 6.3 Material handling Use maximum load indicated in the diagram of the operator’s manual of the loader as a guideline. Remember that the actual load carrying capacity varies according to operating conditions, especially unevenness of operating area has a great effect. Be especially careful when the load sensor indicator is activated. Also, make sure that the ground surface is firm and follow recommended tire pressures. -
Page 21: Teeth Cover Plate
21 (24) 6.4 Teeth cover plate For buckets with teeth, an optional protection plate is available. The cover plate is intended to be used when operating the loader in areas where the teeth could make an accident more serious, such as when operating on road traffic areas. -
Page 22: Inspections, Maintenance And Service
22 (24) 7. Inspections, maintenance and service It is recommended to empty the bucket completely right after using it. Do not store the bucket directly against the ground; place it on blocks of wood or on a pallet, for example. Leave the attachment to a position where water will not stay in the attachment. -
Page 23: Warranty Terms
23 (24) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory.
