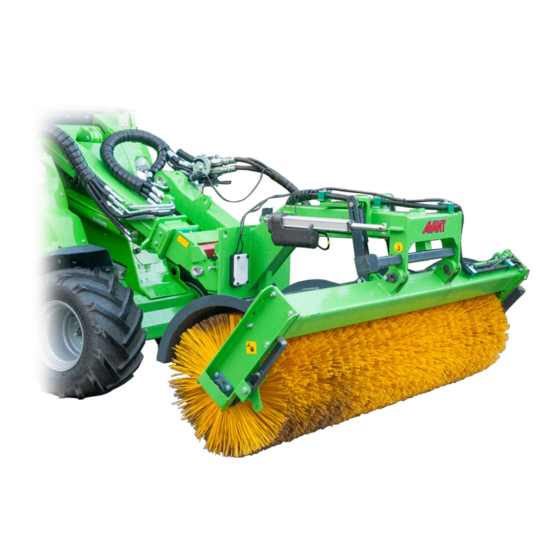

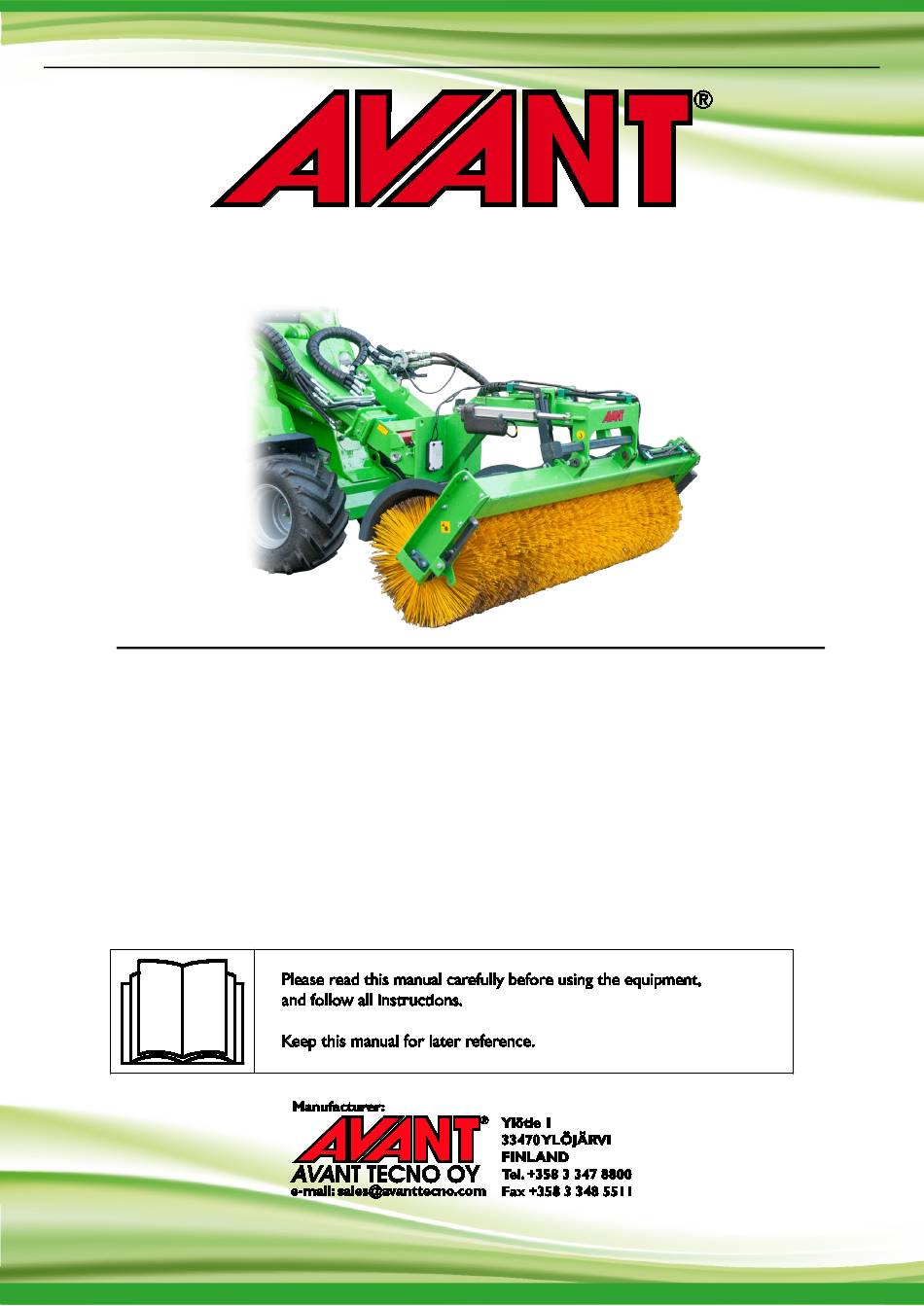

- Page 1 English Rotary Broom 2019 1 Operator's Manual for Attachment Rotary Broom Product number 1100 mm A36067 1500 mm A35284 2000 mm A35583 www.avanttecno.com A436136 2019 1 EN 2015-...
- Page 2 Rotary Broom 2019 1...
-
Page 3: Table Of Contents
Rotary Broom 2019 1 CONTENTS 1. FOREWORD ............................4 2. DESIGNED PURPOSE OF USE......................5 3. SAFETY INSTRUCTIONS ........................6 4. TECHICAL SPECIFICATIONS ......................9 Safety labels and main components of the attachment ..................9 5. ASSEMBLING THE ATTACHMENT....................11 Connecting and disconnecting hydraulic hoses .................... -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Designed Purpose Of Use
2. Designed purpose of use The AVANT Rotary broom is an attachment that is suitable for use with AVANT multi purpose loaders which are shown in Table 1. The strong and robust broom serves well also in professional use and is intended for removing dirt, sand, sanding gravel or other small trash from larger yards, streets, or other hard surfaces. -
Page 6: Safety Instructions
6 (30) 3. Safety instructions Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. Due to this, all operators must carefully familiarise themselves about correct use and the operator's manuals of both the loader and the attachment before starting operation. - Page 7 7 (30) Shut down the loader and place the attachment to a safe position as shown in Safe stopping procedure before any cleaning, maintenance, or adjustments. Pay attention to the surroundings and any other persons and machines moving in the WARNING vicinity.
- Page 8 8 (30) Risk of crushing - Never allow anyone to get under a lifted attachment or loader boom. Keep in mind that the loader boom can be lowered or tilted even if the engine has WARNING been shut down (crushing hazard). The loader is not intended to be left to keep a load elevated for longer periods.
-
Page 9: Techical Specifications
(225 bar) (225 bar) (225 bar) Compatible AVANT loaders: See Table 1 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment. - Page 10 Beware also of entanglement of clothes or hair. 2 pcs. Identification plate Table 4 - Rotary Broom - Main components Frame with Avant coupling brackets Multiconnector holder Side storage supports, 2 pcs Front storage support Rear storage support...
-
Page 11: Assembling The Attachment
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position. -
Page 12: Connecting And Disconnecting Hydraulic Hoses
5.1 Connecting and disconnecting hydraulic hoses On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services. - Page 13 13 (30) Keep all fittings as clean as possible; use the protective caps on both the attachment and the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Never leave the hoses hanging on the ground; place the couplings onto the holder on the attachment.
-
Page 14: Electric Connection
14 (30) 5.2 Electric connection Electric functions of the attachment: As standard, the 1500 and 2000 rotary brooms are equipped with turning which is powered by electric actuator. The electric turning system for the 1100 rotary broom is available as an option. The electric turning system can be controlled with the standard electric harness that is supplied with the rotary broom. - Page 15 15 (30) If your loader is equipped with the attachment control switch pack, and the loader is manufactured in 2016 or later: electric socket integrated multiconnector. electric harness attachment is connected when the multiconnector is coupled. Clean both multiconnectors before connecting the multiconnector.
-
Page 16: Storage Supports
16 (30) 5.3 Storage supports All four storage supports must be lowered when disconnecting the broom, and all four supports must be lifted before using the broom. To store the broom, lower it on an even surface, where it cannot move by accident. Set the outriggers to lower position first and then lower the attachment on the ground. -
Page 17: Using The Broom
17 (30) 6. Using the broom Check the attachment and the operating environment once more before starting to work, and that all obstacles have been removed from the operating area. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment. -
Page 18: Checks Before Use
18 (30) 6.1 Checks before use Before starting work, remove large items that can’t be collected with the broom from the working area. Drive carefully on uneven terrain and note the effect of heavy load at the front of the loader to the ... -
Page 19: Operating The Broom
19 (30) 6.2 Operating the broom The broom is operated with the auxiliary hydraulics of the loader. Auxiliary hydraulics control lever: (or electric joystick buttons): Move the auxiliary hydraulics control lever of the loader towards its locking position to rotate the attachment to its normal operating direction. Stop the attachment by releasing the lever to neutral position. -
Page 20: Broom Floating System And Correct Operating Position
20 (30) Operate the attachment keeping the hydraulic flow within recommended range. Never exceed maximum allowed input of hydraulic energy. 6.3 Broom floating system and correct operating position The broom is equipped with a mechanical floating system, which allows the broom to follow the surface of the terrain without moving the loader boom. -
Page 21: Broom Position Indicators, 1100
21 (30) To set the broom to its correct operating position, lower the broom lightly against the ground: 1. Tilt the attachment so that the frame of the broom will be in level with the ground. The indicator 1 will then be on level with the upper edge of the quick coupling plate. 2. -
Page 22: Broom Position Indicators, 1500/2000
22 (30) 6.3.2 Broom position indicators, 1500/2000 Broom is in correct operating position when the red arrow on indicators 2 point to bolts of the upper fastening bolts of the floating system. 6.4 Float damping adjustment The floating broom is fitted with shock absorbers, which allow the bristles to follow the surface of the ground while damping and preventing bouncing of the broom. -
Page 23: Broom Slewing
Electric slewing is available as an option for model 1100 and is standard equipment on models 1500 and 2000. The electric slewing is strong, easy to use and maintenance free and it can be used with all Avant loader models. See instructions regarding the electric connection from Chapter 5.3. -
Page 24: Transport Position
24 (30) 6.6 Transport position Keep the loader stable and avoid hitting the ground with the storage supports while driving with the broom attached to the loader. Always transport the attachment as low and close to the ground as possible. Keep the telescopic boom and CAUTION outriggers retracted during transport drive. -
Page 25: Maintenance And Service
Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and... -
Page 26: Cleaning And Lubricating The Attachment
26 (30) 7.2 Cleaning and lubricating the attachment Clean the broom as soon as possible after use, so that it is easier to remove all dirt. A pressure washer and mild detergent can be used. Avoid using solvents or spraying directly at the bristles or hydraulic parts at high pressure. -
Page 27: Brush
27 (30) 7.3 Brush The material of the brush bristles is nylon and in normal operating conditions the brush will last long before need for replacement. As the diameter of the brush decreases, its circumferential velocity decreases as well, and at some point it becomes insufficient for throwing material efficiently. The brush consists of several parallel discs connected on a shaft. -
Page 28: Warranty Terms
28 (30) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory. - Page 29 2006/42/EC as amended). The following harmonized standards have been applied: SFS-EN ISO 12100, SFS-EN ISO 4413 Mallit / Modeller / Models Avant Hydraulitoiminen harjalaite; Avant-kuormaajan työlaite A36067 Hydraulisk borste; arbetsredskap för Avant lastare A35284 Hydraulic broom; attachment for Avant loaders A35583 30.5.2019 Ylöjärvi, Finland Risto Käkelä, Toimitusjohtaja / Verkställande direktör /...
