Pre-Installation

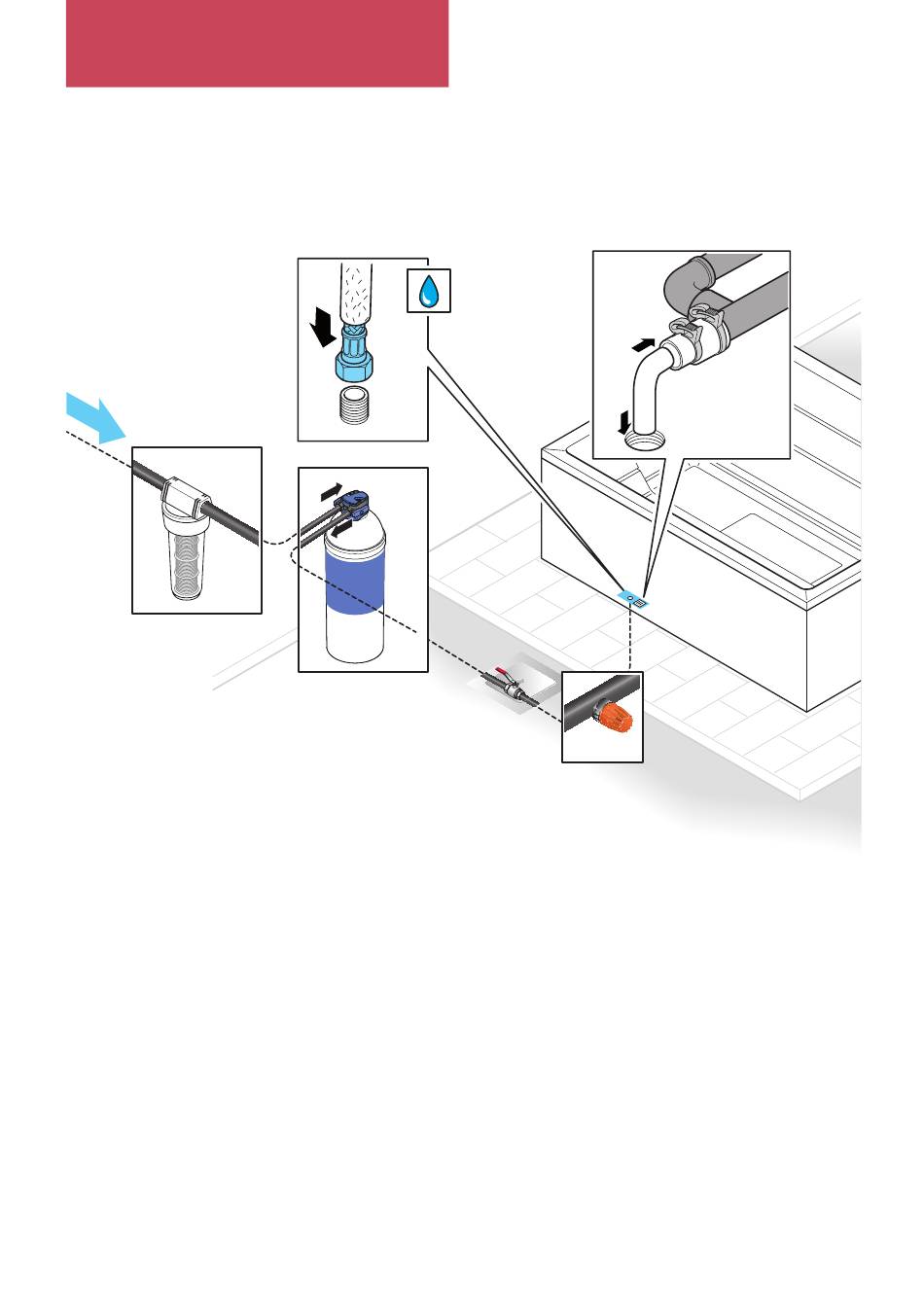

EXAMPLE OF PRE-INSTALLATION PLUMBING FOR A MINIPOOL
Connection to the minipool using the 1/2 inch female hose
provided.
If the minipool is installed outdoors provide an adequate thermal
insulation of the pipes. It is the plumber's responsibility to choose
the type of materials to be used.
Filters*: retain impurities
and oxides (indispensable
if the water comes from
I N
a well)
* The images are purely indicative: the model and type must be chosen by the plumber based on the characteristics of the water and the current
system.
EN
1/2"
I N
T
O U
Softener*: reduces the
water hardness to opti-
mal values
Gate valve*: shuts
off the water flow
14
Rest
Connect the drain of the floor minipool. The
plumber is responsible for the choice and type
of materials to be used and the verification of
compliance with anti-pollution standards.
ø40
Drain Valve*: useful for
e m p t y i n g t h e p i p e s
during maintenance or
at the end of the season.
minipool
