hattrick GORDION Operating Instructions Manual

Motorized treadmill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

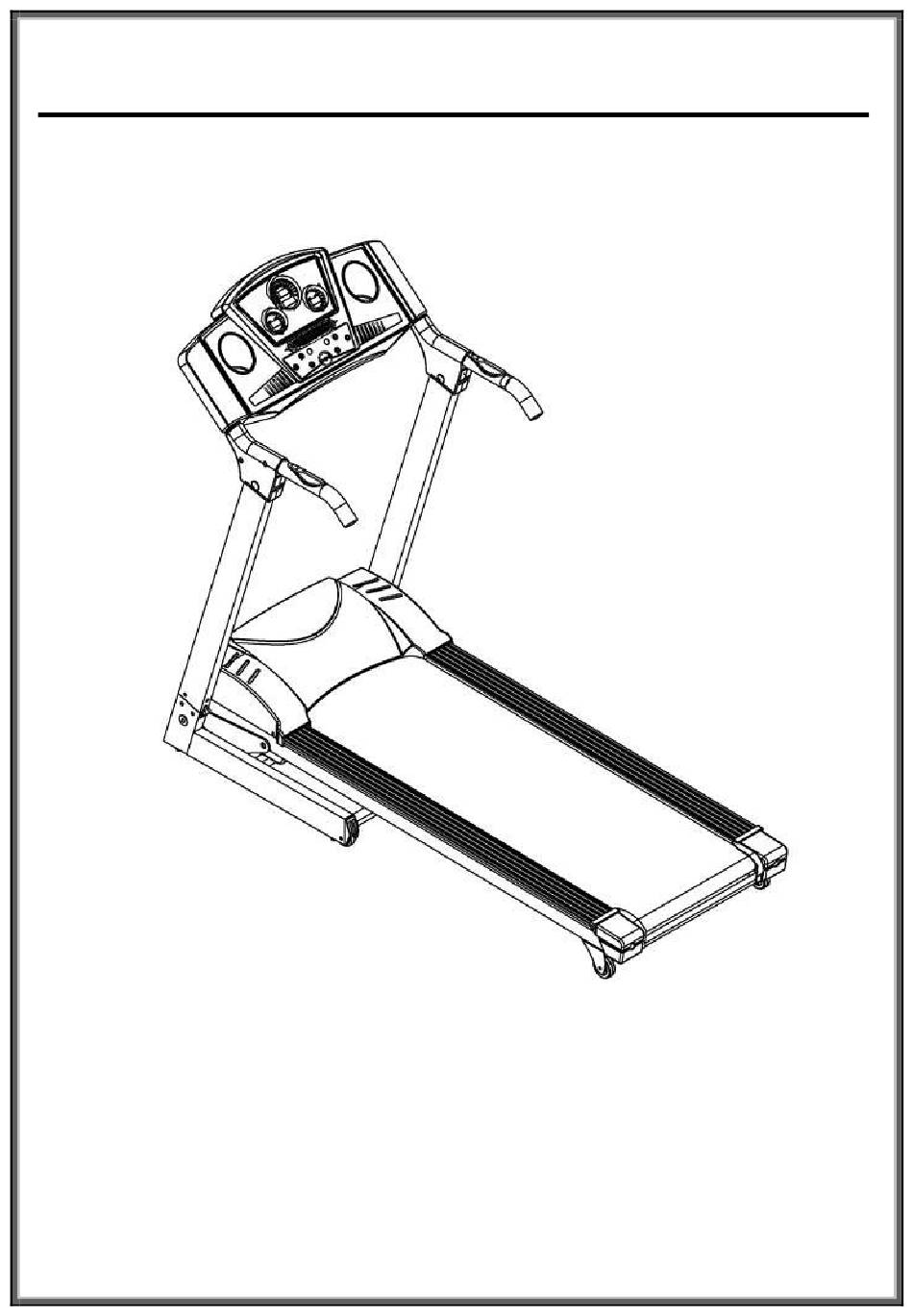

GORDION Motorized Treadmill
Special tips:
1.
Before installation and operation, please read this operation manual carefully.
2.
Please save this manual for future reference.
3.
Product may vary slightly from the item pictured due to model upgrades
Operating Instructions Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GORDION and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for hattrick GORDION

Summary of Contents for hattrick GORDION

  • Page 1 GORDION Motorized Treadmill Operating Instructions Manual Special tips: Before installation and operation, please read this operation manual carefully. Please save this manual for future reference. Product may vary slightly from the item pictured due to model upgrades...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING - Read all instructions before using this treadmill. It is important your treadmill receives regular maintenance to prolong its useful life. Failing to regularly maintain your treadmill may void your warranty. Danger – To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to cleaning and/or service work.

  • Page 3: Important Electrical Information

    IMPORTANT ELECTRICAL INFORMATION WARNING! 1) NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power cord away from any moving part of the treadmill including the elevation mechanism and transport wheels. 2) NEVER operate treadmill on Generator or UPS power supply. 3) NEVER remove any cover without first disconnecting AC power.

  • Page 4: Spare Parts List

    Warning: Now here we suggest that you should consult with your physician or health professional before starting your workout, especially for the age up to 35 old or once-health problem people. We take no responsible for any troubles or hurts if you don’t following our specification. Treadmill will be carefully assembled and covered the motor shield, then connect to the power.
  • Page 5 WRENCH W/SCREW DRIVER S=13、14、15 1pcs Notice: Do not connect to power source before assembly is completed ASSEMBLY STEP ONE： Open the carton， take out the above spare parts， put the MAIN FRAME on the ground. ASSEMBLY STEP TWO: Pull up the display and upright as arrow direction.
  • Page 6 ASSEMBLY STEP FOUR: Use the 5# allen wrench, drill through the bolt (46) to lock washer(66), then lock the Right upright (4) onto MAIN FRAME (1) ASSEMBLY STEP FIVE: Use the 5# allen wrench, drill through the bolt (46) to lock washer(66), then lock the COMPUTER (64) onto R&L upright (3,4).

  • Page 7: Folding Instruction

    FOLDING INSTRUCTION Pulling up: Support place A with hand, then pull up following the arrow direction, till hearing the sound that the cylinder (B) is locked into the round tube Pulling down: Support place A with hand , depress the place B of air pressure control bar, then the base frame will fall down automaticlly...

  • Page 8: Technical Parameter

    TECHNICAL PARAMETER 1585*715*1315 POWER AS ORDER REQUIRE BUILT UP SIZE(mm) MAX OUTPUT 910*715*1470 AS ORDER REQUIRE FOLDABLE IZE(mm) POWER RUNNING SURFACE 1220*420 INPUT CURRENT AS ORDER REQUIRE SIZE(mm) 60KG INCLINE 0-20 NET WEIGHT SPEED RANGE 1.0-18KM/h SPEED TIME DISTANCE CALORIES PULSE LED DISPLAY GROUNDING METHODS This product must be grounded.

  • Page 9: Window Display

    OPERATION GUIDE WINDOW DISPLAY: 1.“SPEED” window:Display speed, show range: 1.0-18KM/h. 2.“INCL” window：Show the incline, the incline range is 0-20 level; 3、“TIME” window:Show the running time, count from 0:00 to 99:59. When up to 99:59, the machine will stop smoothly and show ‘END’ in the computer; When you set the time count down, it will count down from the setting data to 0, when down to 0:00, the machine will stop smoothly and show ‘END’...

  • Page 10: Button Function

    reference, can not be as medicinal data. BUTTON FUNCTION: 1. “PROGRAM” Button：When the treadmill is not running, press the button can circle choose and set up the exercise time and program from “0：00” “ P1-------P5--------P10-------P15-------P24FAT”. Manual mode is the default program, the default speed in kilometer is 1KM/H. (0:00 is manual mode,pre-set program :P1-P25) 2.

  • Page 11: Pre-Set Program

    Manual mode: 1. If you do not make any setting and press START button directly, the treadmill will start to run from the speed 1.0km/h, incline 0. The other windows will start to count from positive direction from windows default, press “SPEED+”, “SPEED-” change the speed, press “INCLINE+”、“INCLINE -”to change the incline;...
  • Page 12 SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE...
  • Page 13 SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE Range of program PROGRAM BEGIN SET UP RANGE DISPLAY RANGE TIME(MIN:SECOND) 0:00 15:00 5:00-99:00 0:00－99:59 INCLINE(LEVEL) 0-20 0-20 SPEED(K/h) 1.0-18 1.0-18 DISTANCE(K) 0.5-99.9...

  • Page 14: Safety Lock Function

    BODY TESTER: At the beginning state, press “ PROGRAM” continuely entering FAT body fat tester, press “ MODE “ enter F-1、F-2、F-3、F-4、F-5 ( F-1 SEX, F-2 AGE, F-3 HEIGHT, F-4 WEIGHT, F-5 FAT TESTER ), Press “SPEED+”、“SPEED -” to set F-1 – F4 ( refer to the following chart), after that, press “ MODE” to set F-5, grasp the hand pulse, the window will display your body quality index after 3 seconds.

  • Page 15: Exercise Instructions

    treadmill will stop immediately. EXERCISE INSTRUCTIONS 1. The Warm Up Phase This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury. It is advisable to do a few stretching exercises as shown below.

  • Page 16: Maintenance And Servicing

    To tone muscle while on your treadmill you will need to have the resistance set quite high. This will put more strain on our leg muscles and may mean you cannot train for as long as you would like. If you are also trying to improve your fitness you need to alter your training program.

  • Page 17: Every Week

    4) Make sure the power cord is not underneath the treadmill or in any other area where it can become pinched or cut. Check the tension and alignment of the running belt. Make sure that the treadmill belt will not damage any other components on the treadmill by being misaligned. EVERY WEEK Clean underneath the treadmill, following these steps: 1) Turn off the treadmill with the star/stop switch, then unplug the power cord at the wall outlet.
  • Page 18 SERVICING: IF YOU FAIL TO COMPLY WITH MAINTENANCE AND SERVICING STEPS ABOVE, YOU MAY VOID YOUR WARRANTY. IF YOU REQUIRE A SKILLED FITNESS REPRESENTATIVE TO UNDERTAKE ONE OF THE STEPS ABOVE, PLEASE CALL OR EMAIL US. General Cleaning 1) Use a soft, damp cloth to wipe the edge of the belt and the area between the belt edge and frame.
  • Page 19 If the surface is dry to the touch, apply a suitable silicone lubricant. We recommend you use a silicone based spray to lubricate your Treadmill. This can be purchased from your local sports Retailer or a local hardware store. Identification ways for the degree of tightness of running belt and poly V-belt. When the running belt skips, please follow the steps as follows to make sure which belt needs to be adjusted, running belt or poly V-belt.
  • Page 20 Center the running belt： DO NOT OVERTIGHTEN the walking belt. This may cause reduced motor performance and excessive roller wear. TO CENTER WALKING BELT: ● Place treadmill on a level surface ● Run treadmill at approximately 3.5 mph ● If the belt has drifted to the right, turn the right adjusting bolt 1/2 turn clockwise and the left adjusting bolt 1/2 turn counterclockwise ●...

  • Page 21: Parts List

    EXPLODED DRAWING PARTS LIST...
  • Page 22 DESCRIPTION DESCRIPTION REMARK REMARK MAIN FRAME LEFT BOTTLE BRACKET BASE FRAME RIGHT BOTTLE BRACKET LEFT HANDLEBAR LEFT UPRIGHT COVER L LEFT HANDLEBAR RIGHT UPRIGHT COVER R COMPUTER BRACKET LOCK NUT M8*30 MOTOR BRACKET BOLT INCLINE MOTOR BRACKET LOCK NUT TURNING BUSHING LOCK NUT FRONT ROLLER BOLT...
  • Page 23 PULSE UP WIRE SMALLl RING PULE WITH SWITCH UP WIRE PULSE SPEED UP WIRE COMPUTER UP WIRE 1 COMPUTER UP WIRE COMPUTER MIDDLE WIRE COMPUTER BOTTOM WIRE LABEL SAFETY KEY SWITCH BOARD POWER WIRE SQUARE SWITCH OVERLOAD PROTECTER AC SINGLE LINE BROWN 150 AC SINGLE LINE BLUE 150...

  • Page 24: Troubleshooting Guide

    TROUBLESHOOTING GUIDE 1、Probable reason for computer not workable after power start: The wire from computer to bottom control board didn’t connected well or the transformer was burnt out. Check the each wire from computer to control board, make sure they are connected well. If the wire is destroyed , change it. If the above can not settle the problem, try to change a good transformer.
