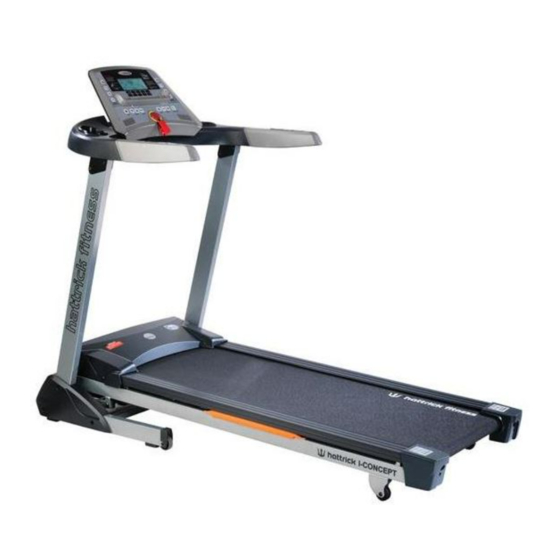

I-CONCEPT TREADMILL USER MANUAL
- 1 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the I-CONCEPT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for hattrick I-CONCEPT

Summary of Contents for hattrick I-CONCEPT

  • Page 1 I-CONCEPT TREADMILL USER MANUAL - 1 -...

  • Page 2: Table Of Contents

    INDEX OUTLOOK INSTRUCTION ......................3 SAFETY INSTRUCTION ........................4 GROUNDING WIRES INSTRUCTION ....................5 ASSEMBLE PART LIST ........................6 ASSEMBLE STEPS .......................... 7 CAUTION ............................ 10 MAINTENANCE ........................... 11 COMPUTER OPERATION INSTRUCTION..................12 - 2 -...

  • Page 3: Outlook Instruction

    OUTLOOK INSTRUCTION 電子表 Computer 安全插銷/夾子 Safety clip Power wire 電源線 Circuit breaker Frame 機台主架 過載保護開關 Power switch 電源開關 電源線 Power cord Decorative cover 修飾蓋 Base 底座 Rear end cap 后調整盒 - 3 -...

  • Page 4: Safety Instruction

    SAFETY INSTRUCTION When using this product, basic precautions should always be followed, including the following: Please read the instruction carefully before starting to use this product. DANGER – To reduce the risk of electric shock： Always unplug this product from the electrical outlet immediately after using and before cleaning.

  • Page 5: Grounding Wires Instruction

    12. Connect the product to a properly grounded outlet only. 13. If the power cord is damaged, be sure to ask the manufacturer for replacement to avoid accidents. The seller and correlative qualified professionals are as well as eligible. GROUNDING WIRES INSTRUCTION The products must be grounded first.

  • Page 6: Assemble Part List

    ASSEMBLE PART LIST ITEM DESCRIPTION Q'TY ITEM DESCRIPTION Q'TY Frame Nylon nut M6×P1.0 Computer console set Truss hex screw M8xP1.25x40 Decorative cover left Truss hex screw M8xP1.25x90 Decorative cover right Safety key set I-PAD Sucker Truss Philips screw M5xP0.8x15 Wrench Hex wrench+screwdriver 5mm (70mmX70mm) L-hex wrench...

  • Page 7: Assemble Steps

    ASSEMBLE STEPS WARNING: After assembly the treadmill, then you can untie the loincloth. © T © w § ô ± a Loincloth Two persons are required to finish the assembly steps. Caution: Please follow exactly the assembly steps below to avoid injury. Put up the handrail tubes of Frame(A) as the arrow shows in the right drawing and tighten with Hex...
  • Page 8 Put up Upright (L&R) as shown in the right drawing and tighten with Hex Screw(b),(c). Ps. To avoid unexpected accident, always assemble the treadmill with more than two workers, do not assemble by yourself. 3. After finished the above steps and you can untie the loincloth, then wedge decorative cover(C,D) into the frame respectively as shown in...
  • Page 9 4. Connect the middle control wire with the upper control wire, then put the computer set as right image and tighten with nylon nut (a) and washer(j) 5. When you need to use the IPAD, I-PAD Sucker Please paste the suction cups for §l ½...

  • Page 10: Caution

    CAUTION This treadmill has the foldable mechanism for storage. Stop all the movements (including stop the running belt and take off the power cord) before storage, then pull out the POP-Pin of the folding fixing mechanism as the direction shown in the drawing and then lift up the frame until the POP-Pin inserts into the frame.

  • Page 11: Maintenance

    Note: The Cylinder contains high pressure gas. Please avoid crash with other objects to avoid danger. Note: If the Cylinder is hit, it might be damaged and cause the usage not smooth. The treadmill might fall while folding MAINTENANCE 1. If the belt tends to move off the center, stop the treadmill.

  • Page 12: Computer Operation Instruction

    2. Depending on the usage of the product, please apply SILICON on the board according to the below chart. Use the Hex Wrench to unscrew the bolt inside the Rear Roller. Then pull the belt up and daub some SILICON to the center of the board. After that, adjust the belt to the center of the deck, followed by tightening the screw to the original set.
  • Page 13 CALORIES. This can be done only after starting. It does not need to be set in PROGRAM. It means you can use the value after starting. You must set it anew after restarting 2. If the SAFETY key is removed out during the work, then the treadmill will stop running. At this time, place the SAFETY key back, the beeper will sound and all the values will go back to the initial position.
  • Page 14 the make reposition action anywhere it is. While performing any program, if you press the STOP key, the program will stop. If users want to continuously perform the program, press the QUICK START key or press the STOP key again to leave the program and return to the start/ready status III.
  • Page 15 3. Incline step is 1, you can press INCLINE + or - key to select, long press key incline of +/-will change quickly ,or press incline instant key 1、4、7、10 to select. 4. During motor working, press Stop key，the motor and incline motor are stop, time window display ”PAUSE”；If press QUICK START key again, then count backwards 3 seconds，motor will start again, speed value will keep in the front of stop, incline will rose to the height in the front of stop.
  • Page 16 the unit is km (mile) 3. Press ENTER to confirm the setting distance, enter into the Calories setting: Press SPEED + or SPEED - adjusting target calories, the initial value is 0, the range of 0, 10-999 units for calories 4.
  • Page 17 and choose a suitable value for yourself. if you didn't do any change, press the ENTER key, the program will start running in accordance with the default values, and into the next option. iii. At this time ,TIME Windows start flashing, the program will ask you to input the time value, you can press SPEED + / - keys to set the time you need, or press the QUICK START key directly, using the way of no countdown start motion.
  • Page 18  BTM (Bluetooth module) APP for iPad APP software download Please connection the iPad to App(iTunes) Store, Search pafers, and then review the introduction of APP, download the APP to the iPad which the have treadmill’ function, such as "Tread Montior" and "Run On Earth".
  • Page 19 (d) After Bluetooth connection success about 10 seconds, the LCD screen will become to white and the lower right corner of the pattern change from , it mean is the computer connection with iPAD is successful also.  After pairing success, please perform the treadmill APP in 2 minutes, if more than 2 minutes is not executed, or the distance of iPad with treadmill running is move than 2 meters, the Bluetooth will automatically cancel the connection "Not connected", please follow above steps again.
  • Page 20 STEP.4 After use APP for each time, please press the main key (HOME) 2 times on "iPad" to close the APP. I f APP in abnormal or meet any Bluetooth connection problems in use time, please follow the below steps to restore the connection: STEP.1 Quick press the main key "(HOME)"of 2 times on “iPad to clear the APP cache.
  • Page 21 i.Concept product can be compatible with iOS of Apple and Google of Android IOS version of the minimum requirements is more than 5.1, recommended version iOS update to 6 or updated, so that users will have the best experience. iPad.iPhone.iPod.iPod classic.iPod nano，iPod shuffle and iPod touch is the registered trademark of Apple Corp in the United States and the others countrie.
  • Page 22 (Figure 1) B. When users search the treadmill ascending angle in the low position (Figure 2), must press the STOP and don’t loosen,, and press the UP at the same time, the two button are pressed at the same time about 3~5 seconds, incline motor will force the treadmill ascension height go up, at the same time, please review incline motor feedback error message, whether change for go up and adjust the feedback value to 100, if the feedback value have change, the users only need to loosen the key then will return to the original position.
  • Page 23 SPEED AND ELEVATION CHANGES 9 HOLE 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Level 1 Incline 0.0 1.0 1.0 1.0 1.0 1.0 2.0 1.0 1.0 1.0 1.0 2.0 1.0 1.0 1.0 1.0 2.0 1.0 1.0 1.0 1.0 2.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 0.0 (MPH) 1.0 1.5 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 1.5 1.0 (KPH)
  • Page 24 SPEED AND ELEVATION CHANGES HILL CLIMB 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Level 1 Incline 0.0 0.0 0.0 1.0 1.0 1.0 1.0 2.0 2.0 2.0 2.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 2.0 2.0 2.0 2.0 1.0 1.0 1.0 1.0 1.0 1.0 0.0 0.0 (MPH) 1.5 2.0 2.5 3.5 2.0 3.0 2.0 4.0 2.0 4.0 2.0 4.0 2.5 4.0 2.5 4.0 2.5 4.0 2.5 4.0 2.0 4.0 2.0 4.0 2.0 3.5 3.0 2.5 2.0 1.5 (KPH)
  • Page 25 SPEED AND ELEVATION CHANGES HILL RUN 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Level 1 Incline 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 (MPH) 1.5 2.0 2.5 3.0 3.5 4.0 3.5 4.0 3.5 4.0 3.5 4.0 3.5 4.0 3.5 4.0 3.5 4.0 3.5 4.0 3.5 4.0 3.5 4.0 3.5 4.0 3.0 2.5 2.0 1.5 (KPH)
  • Page 26 SPEED CHANGES ONLY INTERVAL 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Level 1 (MPH) 1.5 2.0 2.5 3.5 2.0 3.5 2.0 3.5 2.0 3.5 2.0 3.5 2.0 3.5 2.0 3.5 2.0 3.5 2.0 3.5 2.0 3.5 2.0 3.5 2.0 3.5 3.0 2.5 2.0 1.5 (KPH) 2.4 3.2 4.0 5.6 3.2 5.6 3.2 5.6 3.2 5.6 3.2 5.6 3.2 5.6 3.2 5.6 3.2 5.6 3.2 5.6 3.2 5.6 3.2 5.6 3.2 5.6 4.8 4.0 3.2 2.4 Level 2...
  • Page 27 SPEED CHANGES ONLY ROLLING 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Level 1 (MPH) 1.5 2.0 2.5 3.0 3.5 3.0 3.5 4.0 3.5 4.0 3.5 4.0 3.5 4.0 3.5 4.0 3.5 4.0 3.5 4.0 3.5 4.0 3.5 4.0 3.5 3.0 3.0 2.5 2.0 1.5 (KPH) 2.4 3.2 4.0 4.8 5.6 4.8 5.6 6.4 5.6 6.4 5.6 6.4 5.6 6.4 5.6 6.4 5.6 6.4 5.6 6.4 5.6 6.4 5.6 6.4 5.6 4.8 4.8 4.0 3.2 2.4 Level 2...
  • Page 28 SPEED CHANGES ONLY WEIGHT LOSS 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Level 1 (MPH) 0.6 1.0 1.5 2.0 2.0 2.0 2.5 2.5 2.5 3.0 3.0 3.0 3.0 3.5 3.5 3.5 3.5 3.0 3.0 3.0 2.5 2.5 2.5 2.0 2.0 2.0 1.5 1.5 1.0 0.6 (KPH) 1.0 1.6 2.4 3.2 3.2 3.2 4.0 4.0 4.0 4.8 4.8 4.8 4.8 5.6 5.6 5.6 5.6 4.8 4.8 4.8 4.0 4.0 4.0 3.2 3.2 3.2 2.4 2.4 1.6 1.0 Level 2...
