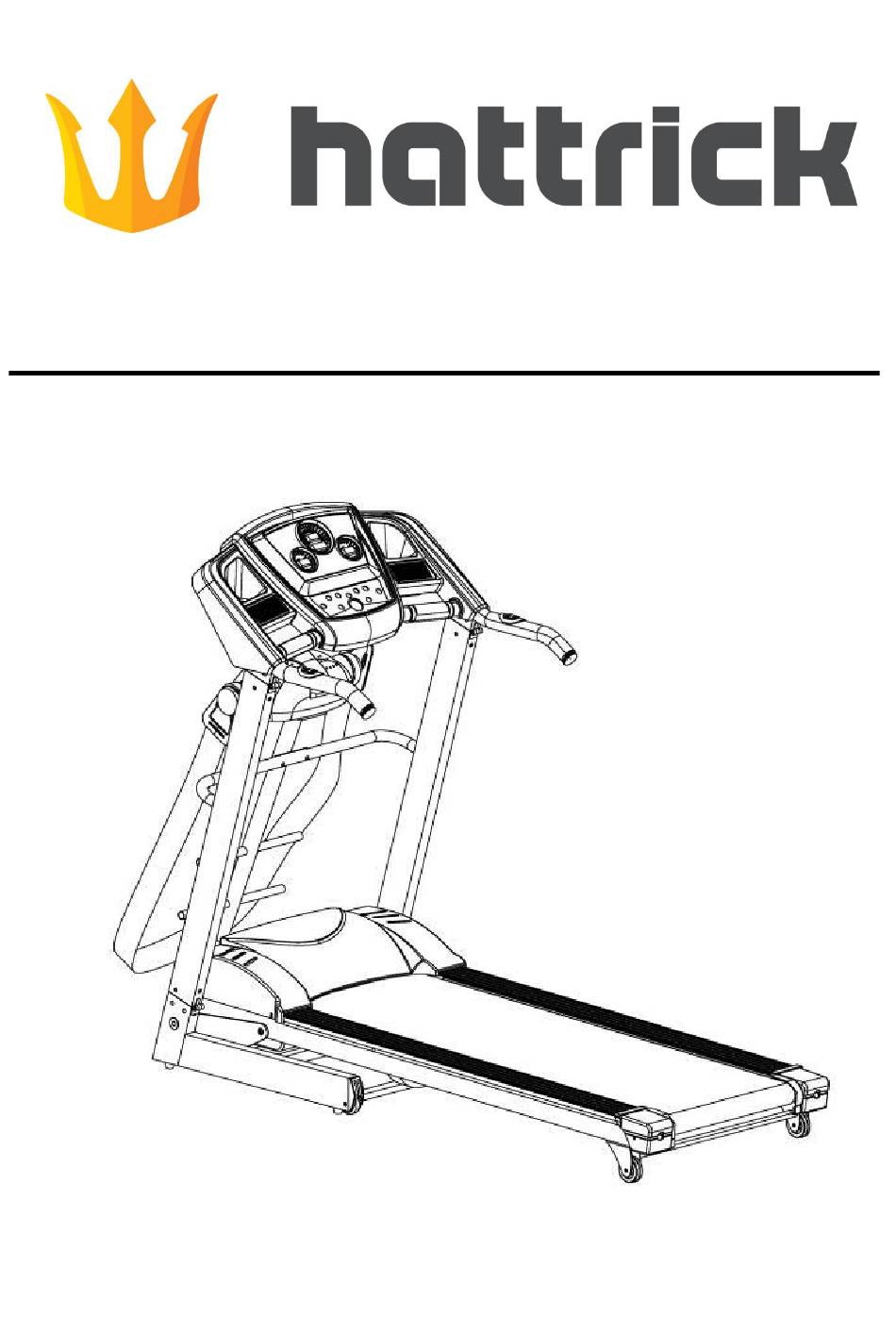

- Page 1 HATTRICK STYLE M MOTORIZED TREADMILL OPERATING INSTRUCTIONS MANUAL...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS Read all instructions carefully before using this product. Keep this owner’s manual for further reference: CAUTION Exercise of a strenuous nature, as is customarily done on this equipment should not be undertaken without first consulting a physician. No specific health claims are made or implied as they relate to the equipment. 1. - Page 3 of your workout). 17. Never attempt to turn around while on the running belt. Keep your head and body facing forward at all times. 18. Never turn on the treadmill while someone is standing on the running surface. 19. Be careful not to over exert yourself during your workout, stop your workout immediately if you feel any pain or discomfort.
-
Page 4: Fixing Tools
ASSEMBLY INSTRUCTIONS When you open the carton, you will find the below spare parts: Spare parts list: DES. Specification Nos. DES. Specification Nos. MAIN FRAME LOCK NUT CONNECTING FRAME SPRING WASHER SUPPORTING FRAME FLAT WASHER MASSAGE HEAD BOLT M8*25 L20 MASSAGE BELT BOLT M8*40 L20... - Page 5 ASSEMBLY STEP ONE： Open the carton， take out the above spare parts， put the MAIN FRAME on the ground. ASSEMBLY STEP TWO: Pull up the display and upright as arrow direction. Notice: When you pull up display, make sure the upright not press the wires in upright;...
- Page 6 ASSEMBLY STEP FOUR: Use the 5# allen wrench, drill through the bolt (46) to lock washer(66), then lock the Right upright (4) onto MAIN FRAME (1) ASSEMBLY STEP FIVE: Use the 5# allen wrench, drill through the bolt (46) to lock washer(66), then lock the COMPUTER (64) onto R&L upright (3,4).
- Page 7 ASSEMBLY STEP SEVEN: 1.Use 5# Allen Wrench ， drill the bolt M8*25(47) through the flat washer 8 (68), spring washer 8 (69), then lock the supporting frame (97) onto the main frame (1); 2. Use 5# Allen Wrench, drill the bolt M8*40(48) through the arc washer (100), nut(45), lock the supporting...
-
Page 8: Folding Instruction
FOLDING INSTRUCTION Pulling up: Support the rear roller A with hand, then pull up the running deck, till hearing the sound that the cylinder B is locked into the round tube Pulling down: Support the rear roller A with hand , depress the air pressure control bar B, then the base frame will fall down automaticlly... -
Page 9: Technical Parameter
TECHNICAL PARAMETER POWER See product specs BUILT UP SIZE(mm) 1750*715*1315 MAX OUTPUT 1040*715*1470 See product specs FOLDABLE SIZE(mm) POWER RUNNING SURFACE 1250*450 INPUT CURRENT See product specs SIZE(mm) 1.0-18KM/h SPEED RANGE 130KG MAX WEIGHT SPEED、 TIME 、 DISTANCE、 INCLINE、 CALORIES、 PULSE DISPLAY This product must be grounded. -
Page 10: Window Display
OPERATION GUIDE WINDOW DISPLAY: 1.“SPEED” window:Display speed, show range: 1.0-18KM/h. 2.“INCL” window：Show the incline, the incline range is 0-20 level; 3、“TIME” window:Show the running time, count from 0:00 to 99:59. When up to 99:59, the machine will stop smoothly and show ‘END’ in the computer; When you set the time count down, it will count down from the setting data to 0, when down to 0:00, the machine will stop smoothly and show ‘END’... -
Page 11: Button Function
BUTTON FUNCTION: 1. “PROGRAM” Button：When the treadmill is not running, press the button can circle choose and set up the exercise time and program from “0：00” “ P1-------P5--------P10-------P15-------P24FAT”. Manual mode is the default program, the default speed in kilometer is 1KM/H. (0:00 is manual mode,pre-set program :P1-P25) 2. -
Page 12: Inner Install Program
default, press “SPEED+”, “SPEED-” change the speed, press “INCLINE+”、“INCLINE -”to change the incline; 2. set up the Time, press “MODE” button to enter into time count down, the TIME window will display“15：00” and glittering. Press “SPEED+”, “SPEED-” , “INCLINE+”、 “INCLINE –“ to set up the time what you need. - Page 13 INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE...
-
Page 14: Range Of Program
SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE RANGE OF PROGRAM PROGRAM BEGIN SET UP RANGE DISPLAY RANGE TIME(MIN:SECOND) 0:00 15:00 5:00-99:00 0:00－99:59 INCLINE(LEVEL) 0-20 0-20 SPEED(K/h) 1.0-18 1.0-18 DISTANCE(K) 0.5-99.9 0.00－99.9 PULSE(hypo/min) 50-200 CALORIE(THERM) -
Page 15: Safety Lock Function
Press “SPEED+”、“SPEED -” to set F-1 – F4 ( refer to the following chart), after that, press “ MODE” to set F-5, grasp the hand pulse, the window will display your body quality index after 3 seconds. The body quality index is to test the relation between height and weight. The body FAT suits for any male and female, to adjust the weight according it together with other body quality index. -
Page 16: Exercise Instructions
3. To end your workout safely, press the STOP button or pull out the safety pulling rope, then the treadmill will stop immediately. EXERCISE INSTRUCTIONS 1. The Warm Up Phase This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury. -
Page 17: Maintenance Instructions
This stage should last for a minimum of 12 minutes although most people start at about 15-20 minutes 3. The Cool Down Phase This stage is to let your Cardio-vascular System and muscles wind down. This is a repeat of the warm up exercise e.g. - Page 18 TO CENTER WALKING BELT: ● Place treadmill on a level surface ● Run treadmill at approximately 3.5 mph ● If the belt has drifted to the right, turn the right adjusting bolt 1/2 turn clockwise and the left adjusting bolt 1/2 turn counterclockwise ●...
-
Page 19: Walking Belt And Deck Lubrication
WALKING BELT AND DECK LUBRICATION This treadmill is equipped with a pre-lubricated, low maintenance deck system. The belt/ deck friction may play a major role in the function and life of your treadmill, thus requiring periodic lubrication. We recommend a periodic inspection of the deck. We recommend lubrication of the deck according to the following timetable: a) Light user (less than 3 hours/ week) triweekly... -
Page 20: Parts List
PARTS LIST Q’ty Q’ty Description Specification Description Specification Left speaker cover Base frame Right speaker cover Main frame Left upright Handpulse plate Right Upright Computer Bracket EVA Pad Motor Bracket Screw M8*30 Fixing pin Turnning Bushing Screw Front roller M8*10 Screw Rear roller M8*25... - Page 21 Wrench w/ screw Screw S=13、14、15 driver M8*40, 20 Screw 5# Allen Wrench M8*45, 20 Screw Cyliner M10*55 Screw M6*55 Motor top cover Bolt M8*35 Motor bottom Screw cover M6*35 Screw Console top cover M3*8 Console inner Screw cover M5*16 Screw Console controller M5*8 Left rear cover...
-
Page 22: Troubleshooting Guide
bolt Massage belt Speaker Amplifier board Screw ST4.2*12(option) Screw ST2.9*6.5(option) MP3 wire option TROUBLESHOOTING GUIDE 1、Probable reason for computer not workable after power start: The wire from computer to bottom control board didn’t connected well or the transformer was burnt out. Check the each wire from computer to control board, make sure they are connected well. - Page 23 control was burnt out, change a good one; reconnect the motor wire. 4、E03: No sensor signal. Sensor wire badness, change good wire; It is no use for the motor magnetic, change the magnetic or reset the magnetic; 5.E04: Incline learning defeated, Check VR wire of incline motor whether connect well. If not, reconnect VR to make it firm;...
