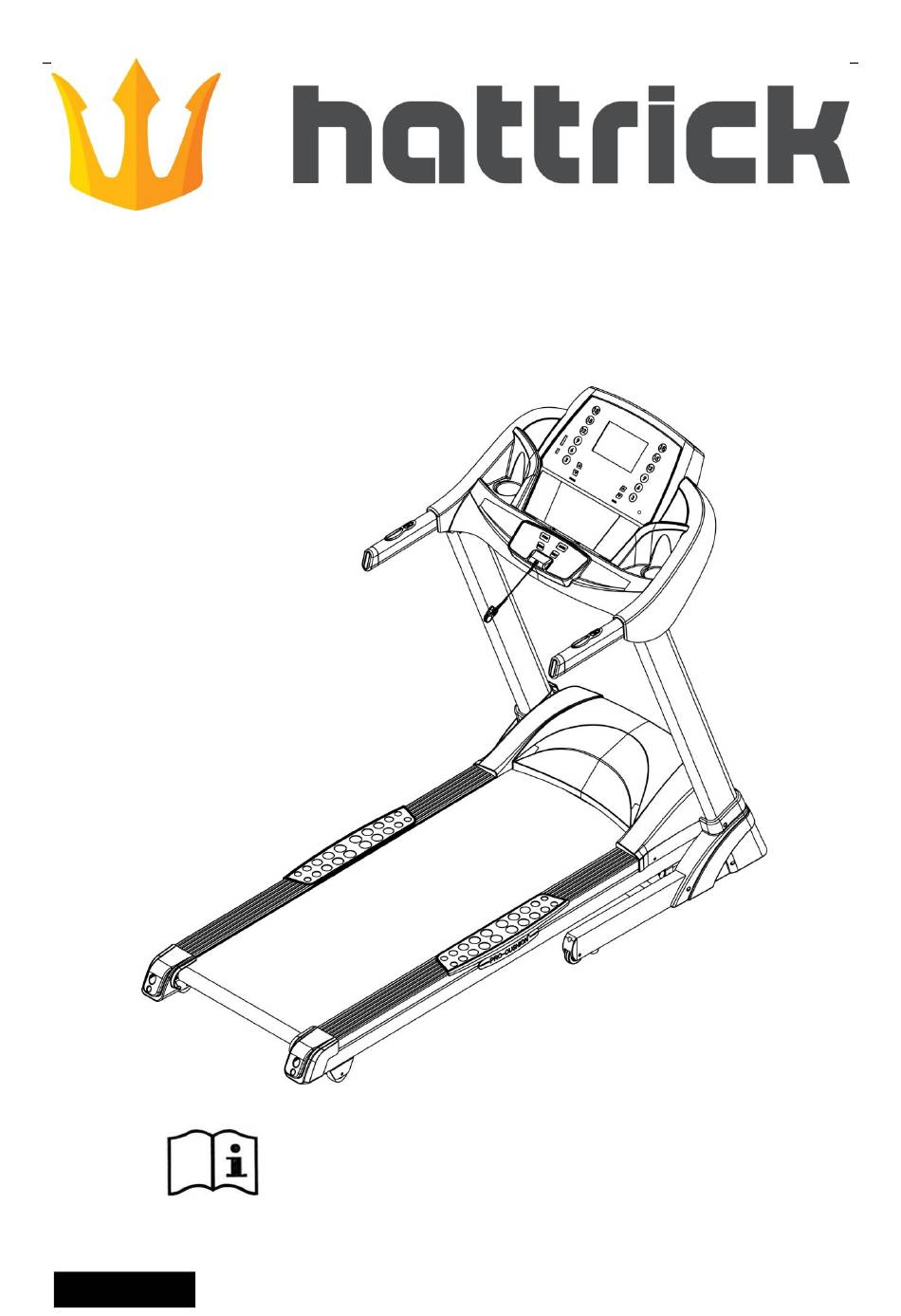

- Page 1 SENSATION USER MANUAL Read all instruction carefully before use this product. Retain this owner’s manual for the future’s reference.
-
Page 2: Safety Precaution
SAFETY PRECAUTION Warning: Now here we suggest that you should consult with your physician or health professional before starting your workout, especially for the age up to 35 old or once-health problem people. We take no responsible for any troubles or hurts if you don’t following our specification. Treadmill will be carefully assembled and covered the motor shield, then connect to the power. -
Page 3: Fixing Tools
ASSEMBLY INSTRUCTIONS When you open the carton, and you will find the below parts in the carton Parts list： DES. Specification Nos. NO. DES. Specification Nos. Main frame Safety lock key Wrench screw Driver S=13\14\15mm Silicone oil 5# Allen Wrench Bolt M8*16 6# Allen Wrench... - Page 4 STEP 1： 1.Open the carton, get out the above spare parts, and put the Main Frame onto the level ground. STEP 2： 1. Push up the Computer as the arrow position. 2. Use the 5#Allen Wrench and Wrench Screw Driver to fix the computer onto the upright with Bolt M8*16(67) and Lock Washer(86).
- Page 5 STEP 4: Use the 5#Allen Wrench to fix the right upright onto the base frame with Bolt M8*55(70) and Lock Washer(86), and fix at the other side of this upright with Bolt M8*16(67) and Lock Washer(86) Same way for the Left upright. NOTICE；...
- Page 6 STEP 7: Put the safety Key on the computer. ATTENTION：Please confirm complete assembly as the require above and lock all the bolt. Do the following operation after checking everything is OK. Before you use the treadmill, please read the instruction carefully. Pulling up：...
-
Page 7: Running Board
TECHNICAL PARAMETER BUILT UP SIZE(mm) 1880*812*1455mm POWER As per showed on the label Maximum output FOLDABLE IZE(mm) 1225*812*1525mm As per showed on the label power RUNNING BOARD SPEED RANGE 510*1400mm 1-18KM/H SIZE(mm) NET WEIGHT 92KG 1 LCD WINDOW WITH BLUE Speed, Time, Distance, Calories, Pulse BACKGROUND GROUNDING METHOD... - Page 8 OPERATION GUIDE OPERATION GUIDE LCD WINDOW DISPLAY DETAILS: 1.”SPEED”:Display current speed under running status，speed range: 1.0-18.0KM/h。 2.”INCLINE”:display current gradient, rang 0-20 segment 3.”TIME”:Display running time，Counting forward from 0：00 to 99：59 4.”DISTANCE.“：display running distance，counting forward from 0.00 to 99.99 5.”CALORIE.”:display the user calorie burned up. Counting forward from 0 to 999.9. 6.”PULSE.”: hold the heartbeat hand shank in both hand for sever seconds, the window will display the user’s current pulse（just for your reference only, not for medical use）...
-
Page 9: Button Function
BUTTON FUNCTION: 1.”MODE”:press MODE under standby mode, the user can choose below function circlely, “0:00” manual operation mode, it’s default mode by the system. “15:00” Time counting down mode. “1.0” Distance counting down mode. “50” Calorie counting down mode. In any mode, the user can set up countdown number through “SPEED+”“SPEED-”or“INCLINE+”“INCLINE-”, then press “START”... -
Page 10: Manual Mode
MANUAL MODE 1.Under standby mode， press “START” bottom， treadmill starts in speed 1.0km/h and in gradient zero; other windows count forward from zero, press“INCLINE+”、 “INCLINE-”、 “SPEED+”、 “SPEED-” to change speed and gradient. 2.Under standby mode, press “MODE”to enter time countdown mode, TIME window will flicker and display“15:00”, press “INCLINE+”、“INCLINE-”... -
Page 11: Program Schedule
PROGRAM SCHEDULE Time Settting time/20 = interval Program 1 2 3 4 9 10 11 12 13 14 15 16 17 18 19 20 SPEED 2 3 3 4 INCLINE 1 1 2 2 SPEED 2 4 4 5 INCLINE 1 2 2 2 SPEED 2 4 4 6... -
Page 12: User Defined Program
USER DEFINED PROGRAM There are three program U1, U2, U3 for user defined. 1.User define program setting Press “PROGRAM” continuously under standby mode until window display U1-U3,press “MODE” to start setting first segment, setup speed and incline by pressing “SPEED+”“SPEED-”AND “INCLINE+”“INCLINE-”, press “MODE”... - Page 13 VALUE RANGE Set initial value Setup parameter Initial Set range Show range 15:00 TIME(Min.: Sec.) 0:00 5:00-99:00 0:00－99:59 0-20 0-20 INCLINE（SEGMENT） 1.0-18.0 1.0-18.0 SPEED（KM/H） DISTANCE(KM) 0.5-99.9 0.00－99.9 CALORIE(Kcal) 10-999 0－999.9 SAFETY KEY FUNCTION The treadmill will stop emergently by pulling off the safety key in any situation， The window will display “―――”...
-
Page 14: Calorie Computational Formula
3.Display E02: Burst clash. Check the power is right, if not, use correct power to test; Check if the bottom control was burnt out, change a good one; reconnect the motor wire. 4.Display E03: No sensor signal. The reasons: un-detect the signal the sensor signal 10 seconds instantly, checking the sensor plug connected well or the magnetic sensor broken or damage, re-connecting well or change the sensor. -
Page 15: Exercise Intensity
EXERCISE： Learn how to adjust the speed and incline before using. Walk about 1 km at stable velocity and write down the time, it will take you about 15-25 minutes. If walk at 4.8 km/h, it will take you about 12 minutes in 1 km. - Page 16 Speed 9.0-12.0KM/H intermediate speed walking Speed 12.0-14.5M/H well experiences of running Speed 14.5-16.0KM/H excellent runner Attention: The speed of movement ≤6KM/H , the normal walking; The speed of movement ≥8.0KM/H ,the runner. WARM-UP INSTRUCTION Take warm-up exercise before workout for 5-10mints.It’ easy to start training with warm-muscle.
-
Page 17: Running Belt Adjustment
RUNNING BELT ADJUSTMENT Warning: ALWAYS UNPLUG THE TREADMILL FROM THE ELECTRICAL OUTLET BEFORE CLEANING OR SERVICING THE UNIT. Clean: General cleaning or the unit will greatly prolong the treadmill. Keep treadmill clean by dusting regularly. Be sure to clean the exposed part of the deck on either side of the walking belt and also the side rails. - Page 18 2.For avoiding the slipping during running , the belt not too loose; for avoiding the more abrasion between the roller and belt and maintain the machine’s good running ,the belt not too tight. You can adjust the distance between plates and belt , the belt be away from the plates about 50-75mm on both sides ,if the best not too tight and loose.
-
Page 19: Exploded Drawing
EXPLODED DRAWING... - Page 20 PARTS LIST Description Specification Qty NO. Description Specification Qty Main frame Oil bottle Base frame Computer up wire Right upright Group Computer bottom wire Left upright Group Safety lock Handle frame Light inductor Incline motor bracket Magnitic ring DC motor bracket Power switch Strengthen tube Standard power wire...
- Page 21 Description Specification Qty Self-drilling tapping screws ST4.2*12 Pedal MP3 Wire...
- Page 22 THANK YOU FOR PREFERRING OUR PRODUCT This product you have already purchased in under the guarantee of the SPOR DÜNYASI. In case you have any problems with regard to installation or service, please do not hesitate to contact our technical service department by calling 0850 495 52 12.
