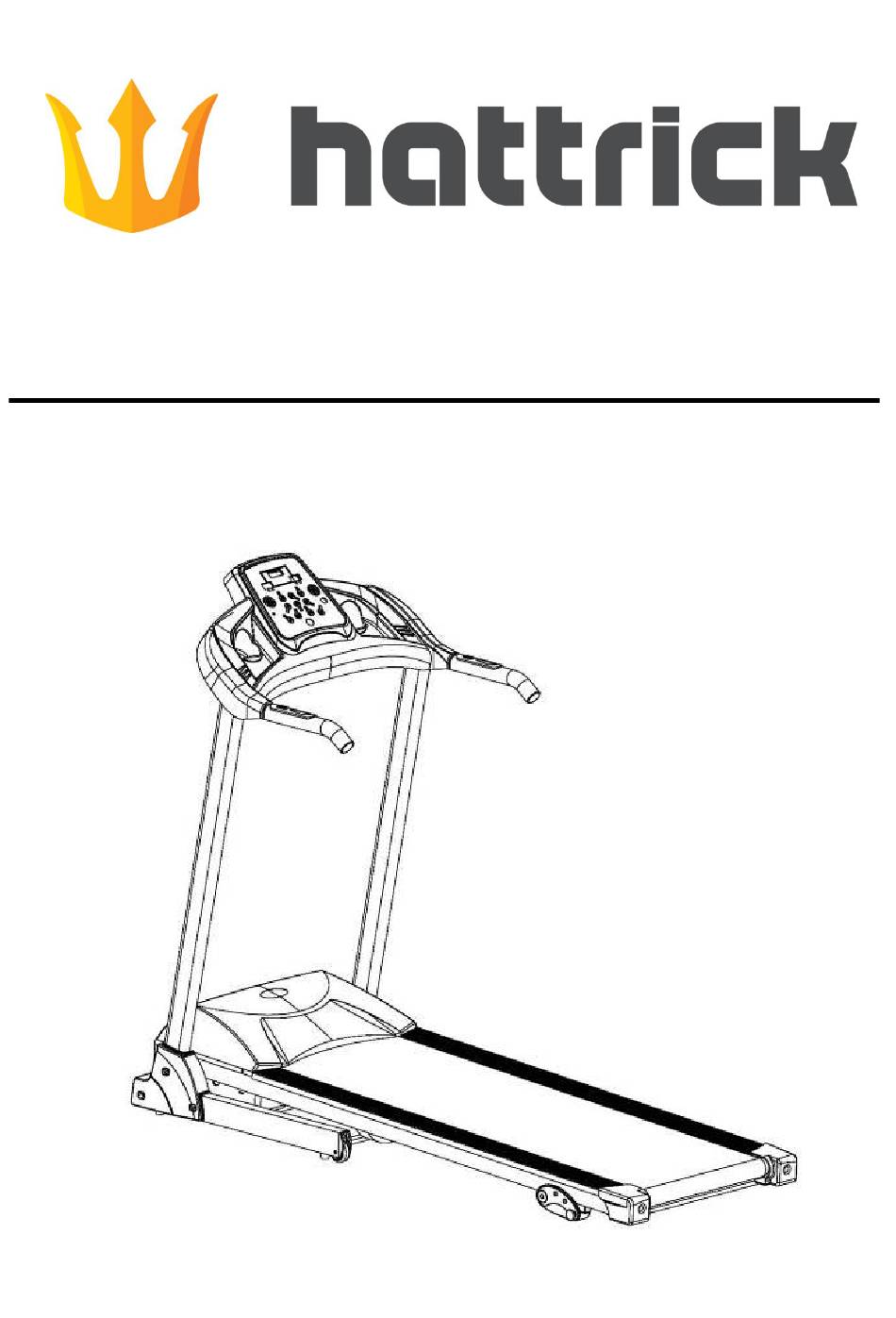

- Page 1 HATTRICK MATRIX MOTORIZED TREADMILL OPERATING INSTRUCTIONS MANUAL...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING - Read all instructions before using this treadmill. It is important your treadmill receives regular maintenance to prolong its useful life. Failing to regularly maintain your treadmill may void your warranty. Danger – To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to cleaning and/or service work. -
Page 3: Important Electrical Information
IMPORTANT ELECTRICAL INFORMATION WARNING! 1) NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power cord away from any moving part of the treadmill including the elevation mechanism and transport wheels. 2) NEVER operate treadmill on Generator or UPS power supply. 3) NEVER remove any cover without first disconnecting AC power. - Page 4 minutes. Warning: Now here we suggest that you should consult with your physician or health professional before starting your workout, especially for the age up to 35 old or once-health problem people. We take no responsible for any troubles or hurts if you don’t following our specification. Treadmill will be carefully assembled and covered the motor shield, then connect to the power.
- Page 5 Step 2: Step 2: Push up the Computer and Upright tube towards the arrow direction. Notice: When you pull up them, make sure the upright not press the wires in upright; keep touch the upright and computer by hand, that they will not fall down escaping any hurt.
-
Page 6: Folding Instructions
FOLDING INSTRUCTIONS Pulling Up: Put your hand on A position, then pull up the base frame till hearing the sound that the air pressure bar (10) is locked into the round tube Pulling Down: Support place A with one hand, then kick the air pressure bar at the position B, pull down the base frame, then it will fall down automatically... -
Page 7: Technical Parameter
TECHNICAL PARAMETER Set up size(mm) 1605*680*1200mm Voltage As per country Folding size(mm) 850*680*1490MM Output: As per country Running 1220*400 Input: As per country surface(mm) 0.8-12KM/H Speed or 0.8—6KM/H Max. User Weight 120KG SPEED TIME DISTANCE CALORIES PULSE One LCD display GROUNDING METHODS This product must be grounded. -
Page 8: Window Display
OPERATION GUIDE WINDOW DISPLAY 1.“ speed “ window: Display the speed, the speed range is 0.8--12km/h or 0.8--6km/h , 1 grid means 1 km/h. When setting programes, show PI-P9, when setting mode, show H1-H3. 2. ” time” window: Display running time. Display the exercise time positive direction clock from 0： 00-99： 59 ,when count to 99:59, the machine will stop smoothly and show ‘... - Page 9 BUTTON FUNCTION: “0.8”、 1. “ Program ” buttom: Under initial situation, press this button to choose the program from “ P1-P2-P3-P4-P5-P6-P7-P8-P9” 9 programs; 0.8 is the system default running mode, “P1-P9” are pre-set programs. 2. “ MODE ” button: Press this button to choose circlely “0.8”, “H1”, “ H2 ”, “H3” (0.8 is the system default running mode, “H1”...
-
Page 10: Inner Install Program
3.In Time setting mode, press “ MODE “ button to enter into distance count down H2, the DISTANCE window will display “1.0” and glittering. Press “SPEED+”, “SPEED-” to set up the distance what you need. The setting range is 0.5—99.9. 4. - Page 11 Program exercise chart for speed range 0.8-6KM/H TIME INTERVAL= setting time/10 PROGRAM TIME SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED RANGE OF PROGRAM Initial Data Initial Set Range Display Range 10:00 TIME(MIN:SECOND) 0:00 5:00-99:00 0:00－99:59 0.8-12(0.8-6) 0.8-12(0.8-6) SPEED(K/h) 1.00 DISTANCE(KM) 0.00...
-
Page 12: Exercise Instructions
=(26---29) Overweight ≥30 Obesity SAFETY LOCK FUNCTION: Pull out the safety pulling rope, then the treadmill will stop immediately. All the windows display“―――”，the buzzer will make 3 sound “B—B—”,now the treadmill must stop. Attach the magnet end of the safety pulling rope to the computer, the treadmill will be at the beginning of running. POWER SAVE FUNCTION: The system is with saving on power function, at the state of waiting for operation, if without any operate, the saving on power function will be available after 10 mins, the display will be closed up. - Page 13 muscles into a stretch - if it hurts, STOP. 2. The Exercise Phase This is the stage where you put the effort in. After regular use , the muscles in your legs will become Stronger. Work to you but it is very important to maintain a steady tempo throughout. The rate of work should be sufficient to raise your heart beat into the target zone shown on the graph below.
-
Page 14: Maintenance And Servicing
difference is the goal. Maintenance Reasonable cleaning/lubricating should be made to extend the life time of this unit. Performance is maximized when the belt and mat are kept as clean as possible. WARNING: THE MAT/DECK FRICTION MAY PLAY A MAJOR ROLE IN THE FUNCTION AND LIFE OF YOUR TREADMILL AND THAT IS WHY WE RECOMMEND YOU CONSTANTLY LUBRICATE THIS FRICTION POINT TO PROLONG THE USEFUL LIFE OF YOUR TREADMILL. -
Page 15: Every 6 Months
3) Move the treadmill to a remote location. 4) Wipe or vacuum any dust particles or other objects that may have accumulated underneath the treadmill. Return the treadmill to its previous position. EVERY MONTH -IMPORTANT! 1) Inspect all assembly bolts of the machine for proper tightness. 2) Turn off the treadmill with the start/stop switch, then unplug the power cord and wait 60 seconds. -
Page 16: General Care
2) On a monthly basis, vacuum underneath your treadmill to prevent dust build up. Once a year, you should remove the black motor shield and vacuum out dirt that may accumulate. General Care 1) Check parts for wear before use. 2) Pay particular attention to the fixing knobs and make sure they are tight. -
Page 17: Running Board Lubrication
We recommend you use a silicone based spray to lubricate your Treadmill. This can be purchased from your local sports Retailer or a local hardware store. Identification ways for the degree of tightness of running belt and poly V-belt. When the running belt skips, please follow the steps as follows to make sure which belt needs to be adjusted, running belt or poly V-belt. - Page 18 Center the running belt： This may cause reduced motor performance and excessive DO NOT OVERTIGHTEN the walking belt. roller wear. TO CENTER WALKING BELT: ● Place treadmill on a level surface ● Run treadmill at approximately 3.5 mph ● If the belt has drifted to the right, turn the right adjusting bolt 1/2 turn clockwise and the left adjusting bolt 1/2 turn counterclockwise ●...
-
Page 19: Exploded Drawing
EXPLODED DRAWING... -
Page 20: Parts List
PARTS LIST Base Frame Bolt M8*15 Bolt Main Frame M8*20 Bolt Computer Bracket M8*30 Bolt Left Upright M8*40 Bolt Right Upright M8*40 Bolt Motor Bracket M8*45 Bolt Fixing pin M10*30 Bolt Turnning Bushing M6*55 Bolt Front Roller M6*45 Bolt Rear Roller M6*35 S=13、14、15 Wrench w/ screw driver... -
Page 21: Troubleshooting
Bolt Magnetic core Bolt Bolt M5*12 M8*35 Bolt M8*35 Bolt TROUBLE SHOOTING 1、Probable reason for computer not workable after power start: The wire from computer to bottom control board didn’t connected well or the transformer was burnt out. Check the each wire from computer to control board, make sure they are connected well. - Page 22 Proofreading has been carefully done to the manual, if there are printing mistakes, please kindly understand. If pictures and the real product doesn’t match, please take the product as the final and correct one. If any improvement on function and specification, please kindly understand if you are not informed.
