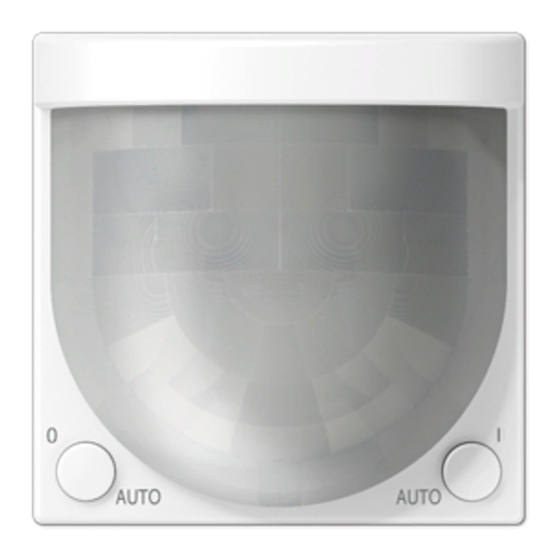

Standard / Universal automatic switch 2.2 m
Universal automatic switch 2.2 m
Art. no.: ..3281-1..
Standard automatic switch 2.2 m
Art. no.: ..3281..
Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Do not press on the sensor window. Device can be damaged.
The device is not suitable for use as a burglar alarm or other alarm.
Caution. Damage to sensors may result due to high thermal radiation. Avoid direct sunlight pen-
etration in the sensor window.
These instructions are an integral part of the product, and must remain with the end customer.
2
Battery safety instructions
This device or its accessories are supplied with batteries in the form of button cells.
DANGER! Batteries can be swallowed. This can lead directly to death by suffocation. Danger-
ous substances may cause severe internal burns leading to death within 2 hours.
Keep new and used batteries away from children.
Do not use devices if the battery compartment does not close securely and keep away from
children.
If you suspect that a battery has been swallowed or is in any orifice of the body, seek immediate
medical attention.
WARNING! Improper handling of batteries can result in explosion, fire or chemical burn due to
leakage.
Do not heat or throw batteries into fire.
Do not reverse polarity, short-circuit or recharge batteries.
Do not deform or disassemble batteries.
Replace batteries only with an identical or equivalent type.
Remove empty batteries immediately and dispose of in an environmentally friendly manner.
32597123
j0082597123
1 / 12
24.07.2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3281-1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Jung 3281-1 Series

  • Page 1 Standard / Universal automatic switch 2.2 m Universal automatic switch 2.2 m Art. no.: ..3281-1.. Standard automatic switch 2.2 m Art. no.: ..3281.. Operating instructions Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Do not press on the sensor window.
  • Page 2: Device Components

    Standard / Universal automatic switch 2.2 m Device components Figure 1: Device components Figure 2: Adjuster Sens. (rear side) Bus coupler 3 (accessory) Frame Motion detector Sensor window Button O / AUTO Button I / AUTO Adjuster Sens. Function System information This device is a product of the KNX system and complies with the KNX directives. Detailed tech- nical knowledge obtained in KNX training courses is a prerequisite to proper understanding.
  • Page 3 Standard / Universal automatic switch 2.2 m Recommendation: Use air-tight appliance boxes. Product characteristics – Automatic switching of light, depending on heat motion and ambient brightness – 2 PIR sensors – Detection area 180° – Integrated brightness sensor – Adjustable switch-off brightness –...
  • Page 4 Standard / Universal automatic switch 2.2 m – Temperature of the heat source: surfaces at 37 °C radiate more intensely than at 10 °C(Figure 5). – Contrast between the heat source and the environment: if the heat source radiates just as intensely as the environment.
  • Page 5: Operation

    Standard / Universal automatic switch 2.2 m Figure 6: Heat sources in buildings Some of the mentioned effects can be compensated for using intelligent filter switches by calib- rating the received signals with typical motion patterns. Selecting the device and installation loc- ation should be made so that the detection field is suited for the intended purpose.
  • Page 6: Ir Remote Control

    Standard / Universal automatic switch 2.2 m Figure 7: Status LED Yellow. OFF operating mode is active. Green. ON operating mode is active. Blue. Movement detected (parameter-dependent). IR reception (oy for "Universal" version) Red. Programming mode is active. IR remote control Only for "Universal"...
  • Page 7 Standard / Universal automatic switch 2.2 m Button Function START, STOP Function block 1: Extend minimum run-on-time (10 seconds) individually Set-up buttons of IR remote control Button Function Ù Walking test – Check detection field Ú Reset sensitivity, brightness threshold and run-on-time to presetting.
  • Page 8 Standard / Universal automatic switch 2.2 m Detection field and range Figure 8: Detection field and mounting height Figure 9: Range with tangential direction of motion, mounting height 2.20 m Figure 10: Range with radial direction of motion, mounting height 2.20 m 32597123 24.07.2019 8 / 12 j0082597123...
  • Page 9 Standard / Universal automatic switch 2.2 m Figure 11: Range with tangential direction of motion, mounting height 1.10 m Figure 12: Range with radial direction of motion, mounting height 1.10 m The size of the detection field depends on the installation height, the direction of motion and the adjusted sensitivity.
  • Page 10 Standard / Universal automatic switch 2.2 m Figure 13: Range with tangential direction of motion, mounting height 2.20 m, only one sensor active Figure 14: Range with radial direction of motion, mounting height 2.20 m, only one sensor active Fitting the device Prerequisite: Bus coupler (1) is mounted in an appliance box and connected.
  • Page 11: Disposal Of Batteries

    Standard / Universal automatic switch 2.2 m Precondition: The device is installed and connected. The physical address is loaded. ■ Activate walking test: Activate the parameter "Walking test after ETS programming" and download the applica- tion software. The device now operates brightness-independently. The PIR sensors are active accord- ing to their programmed sensitivity.
  • Page 12: Warranty

    Sealing kit for automatic switch 180° 2.20 m Art. no. AS..50DS 11 Warranty The warranty is provided in accordance with statutory requirements via the specialist trade. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de...
