EUROSTER 2026TXRX – INSTALLATION AND OPERATION MANUAL
Wireless, programmable thermostat for all types of heating and air conditioning devices.
MANUFACTURER: P.H.P.U. AS, Chumiętki 4, 63-840 Krobia, Poland
In order to take full advantage of thermostat capabilities please read this installation and
operation manual carefully.
This manual is intended for the v8 07.2020 version of the thermostat
1. DESCRIPTION OF DEVICE

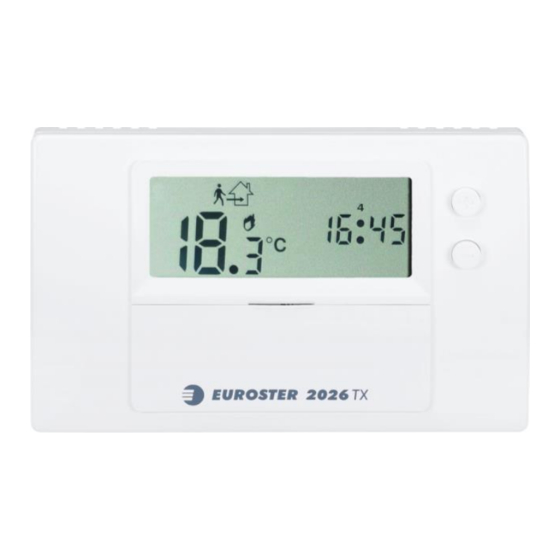

The Euroster 2026TXRX wireless thermostat allows you to control the indoor temperature in a
very simple and efficient way, without the need for labor-intensive wiring between the
thermostat and the heating device.
It is used to control the operation of the CH boiler and other heating system components. It
controls electrical equipment, floor heating, and air-conditioning systems. The thermostat
allows you to program 4 different temperature levels for each day of the week. Each
temperature is modifiable within the range of 5 °C...35 °C.
2. BASIC FUNCTIONS OF THE THERMOSTAT
•
Does not require leading cable connections between the thermostat and the controlled
device
•
Bidirectional communication ensures high operational reliability and resistance to
interference
•
4 different temperature levels for each day of the week
•
Intuitive, weekly programming in 10-minute increments with a program copying
function
•
Up to 6 RX receivers can be used
•
Radio signal strength information
•
Operating time counter for the heating/air-conditioning device
•
Legible, backlit LCD
•
Temperature setting with the accuracy of 0.2 °C
•
Numerous useful functions: temporary temperature setting, vacation mode, discharged
batteries indication, keypad interlock
•
Temperature read-out accuracy of 0.1 °C
•
Temperature reading correction
•
Surface mounting
EUROSTER 2026TXRX
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EUROSTER 2026TXRX
Summary of Contents for EUROSTER 2026TXRX
- Page 1 This manual is intended for the v8 07.2020 version of the thermostat 1. DESCRIPTION OF DEVICE The Euroster 2026TXRX wireless thermostat allows you to control the indoor temperature in a very simple and efficient way, without the need for labor-intensive wiring between the thermostat and the heating device.
- Page 2 EUROSTER 2026TXRX – INSTALLATION AND OPERATION MANUAL 3. THERMOSTAT VISIBLE ELEMENTS BODY • increase/decrease; press and hold to increase the rate of change • press to read the current date; press and hold for 3 seconds to set the date and time •...
-
Page 3: Installation
EUROSTER 2026TXRX – INSTALLATION AND OPERATION MANUAL Batteries are flat Vacation mode Thermostat is locked Manual mode (the set temperature is maintained up to the next change of program) 4. VISIBLE ELEMENTS OF RX RECEIVER A. On/off switch for continuous operation of the heating device B. - Page 4 SELECTION OF THE THERMOSTAT OPERATING MODE Euroster 2026 is equipped with 4 configuration jumpers. Factory settings are shown in italics: • Protection against overheating due to flat batteries: YES/NO If the batteries are flat, the thermostat can perform an emergency switch-off of the re- lay (protection against the uncontrolled operation of the heating device).
-
Page 5: Thermostat Settings
EUROSTER 2026TXRX – INSTALLATION AND OPERATION MANUAL INSERTION AND REPLACEMENT OF BATTERIES Place the batteries in the thermostat while observing the correct polarity. There are installation markings in the battery compartment. Then install (snap) the thermostat onto the base. The battery indicator will be visible when the battery voltage reaches the minimum allowable level. -
Page 6: Thermostat Operation
15 seconds to cancel the change. 7. THERMOSTAT OPERATION Euroster 2026 is a programmable thermostat. You can set 4 different temperatures for 4 different periods, for each day of the week individually. Setting programs for the entire week may be tedious, so the thermostat is equipped with a function to copy programs. -
Page 7: Copying Programs
EUROSTER 2026TXRX – INSTALLATION AND OPERATION MANUAL 4. Set the desired temperature for P2 using buttons. Confirm with button 5. Set the required P2 starting time using buttons. Confirm with button 6. Similarly, set the temperatures and times for P3 and P4 programs. -
Page 8: Restoring Normal Operation
EUROSTER 2026TXRX – INSTALLATION AND OPERATION MANUAL Important note: The holiday mode is activated when the settings are confirmed by pressing button. icon appears on the display. Leaving the thermostat idle for more than 15 seconds cancels the setting and restores normal operation. -
Page 9: Checking The Operating Time
EUROSTER 2026TXRX – INSTALLATION AND OPERATION MANUAL The function may be deactivated by turning the knob to any day of the week and then back to START. Frost protection mode (switching the thermostat off after the heating season) In the frost protection mode, the thermostat switches to maximum energy saving. If it is used with the air conditioning, it switches it off;... - Page 10 EUROSTER 2026TXRX – INSTALLATION AND OPERATION MANUAL Factory settings Air conditioning control Monday Friday Saturday - Sunday P1 6.00 a.m. / 23 °C P1 6.00 a.m. / 23 °C P2 8.30 a.m. / 28 °C P2 11.00 a.m. / 22 °C P3 3:00 p.m.
-
Page 11: First Start
EUROSTER 2026TXRX – INSTALLATION AND OPERATION MANUAL • insert the second receiver into a mains socket. • Press the button on the receiver 3 times – the blue LED lights up, • when the receiver is detected, the blue led goes out, •... -
Page 12: Maintenance
EUROSTER 2026TXRX – INSTALLATION AND OPERATION MANUAL 10. SAMPLE CONNECTION DIAGRAMS The following diagrams are simplified and do not cover all elements necessary for the correct installation. In arrangement with a 230 V 50 Hz device 1. Electrical connection block 2. -
Page 13: Specifications
Installation and Operation Manual with Warranty Certificate 14. SIMPLIFIED DECLARATION OF CONFORMITY P.H.P.U. AS AGNIESZKA SZYMAŃSKA-KACZYŃSKA hereby declares that the type of EUROSTER 2026TXRX equipment conforms to the following directives: 2014/35/EU (LVD), 2014/30/EU (EMC), 2014/53/EU (RED), 2011/65/EU (RoHS). - Page 14 EUROSTER 2026TXRX – INSTALLATION AND OPERATION MANUAL ELECTRONIC WASTE MANAGEMENT INFORMATION This product is designed and manufactured from high-quality materials and components suitable for reuse. The crossed-out wheelie bin symbol located on the product (Fig. 1) means that the product is subject to selective collection in accordance with the provisions of the Directive 2012/19/EU of the European Parliament and of the Council.
