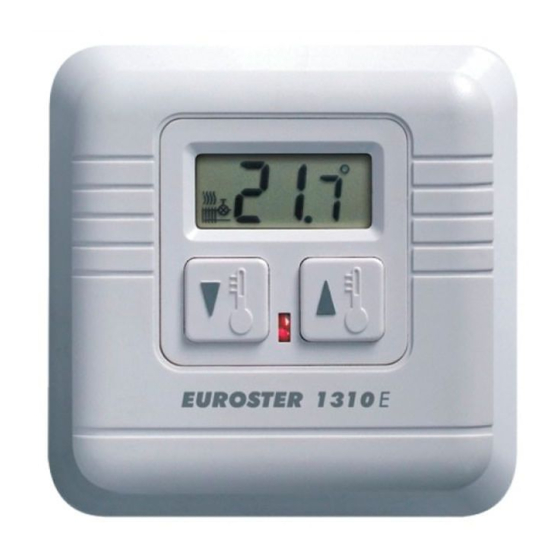

EUROSTER 1310 User Manual

EUROSTER 1310/E/P – USER MANUAL
PREPARATION: Before installing this thermostat, check your system wiring diagram.
If your system is other than a low voltage heating or cooling system, please check with your
local dealer. Do not connect both a Heat System and a Cool System to this thermostat.
NOTE: Leave this Manual with the homeowner for future reference.
1. Look for a location that has a constant temperature in the house and is not near the
door entry or air conditioning outlet (see example on figure 1). Avoid sunny locations if
possible.
2. WARNING!!! Turn off the main power switch before installing the thermostat.
3. Release the front cover by pressing a tab on the top of the front cover with a
screwdriver (see figure 2). Remove the front cover with your hand holding both sides of
the cover (see figure 3).
4. Remove the cover to get access to the terminals (push a small flat screwdriver
into the gap from the front and push the tab toward the center to open the cover).
Pull the cover straight up (see figure 4).
5. Route the wires through the cutout in the base and mount the thermostat to the wall
with two screws (see figure 5)."
EUROSTER 1310/E/P
1
