EUROSTER 4010 – INSTALLATION AND OPERATION MANUAL
wired, daily room thermostat, for all types of heating devices.
MANUFACTURER: P.H.P.U. AS, Chumiętki 4, 63-840 Krobia, Poland
In order to take full advantage of thermostat capabilities please read this installation and
operation manual carefully.
This manual is intended for the 11.09.2020 version of the thermostat.
1.
THERMOSTAT APPLICATION
Euroster 4010, is a user-friendly thermostat designed for controlling the temperature in living
and utility rooms within the temperature range of 5 °C...35 °C. It is used to control the
operation of the CH boiler and other heating system components. Sensors used in Euroster
4010 enable temperature read-out and programming accuracy of 0.1 °C.
2.
BASIC THERMOSTAT FUNCTIONS
•
Legible, backlit LCD
•
Simultaneous display of current and preset temperature value
•
Enables hysteresis setting between 0.2°C and 10°C or PWM adjustment
•
Temperature setting and read-out accuracy of 0.1 °C
•
Possibility to switch the thermostat off after the heating season
•
Discharged batteries indication
•
Temperature read-out correction
•
Surface mounting
3.

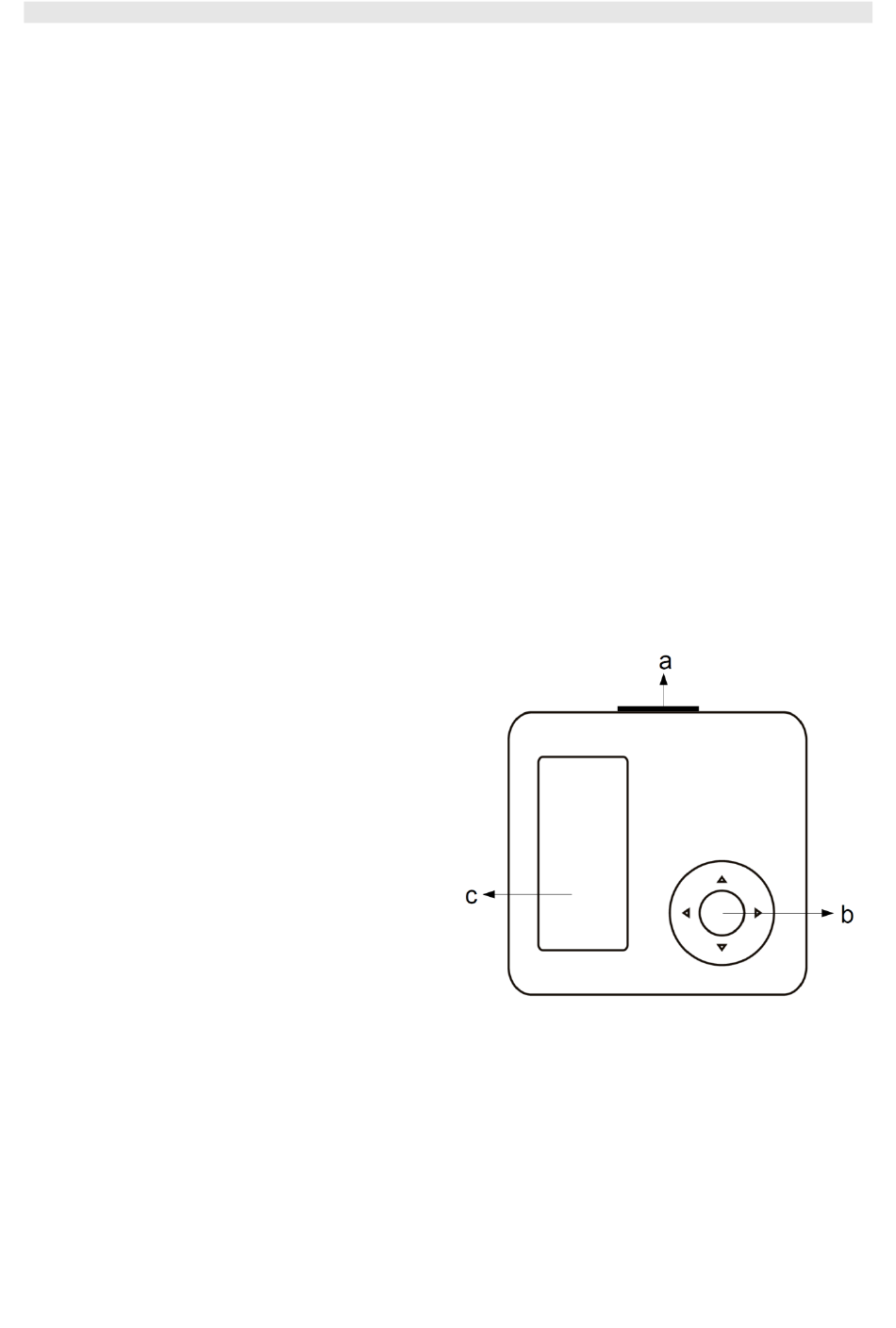

THERMOSTAT VISIBLE ELEMENTS
a. Thermostat on/off switch
b. Thermostat control knob
c. Display
EUROSTER 4010
BODY
1
Advertisement
Table of Contents
Related Manuals for EUROSTER EUROSTER 4010
Summary of Contents for EUROSTER EUROSTER 4010
- Page 1 This manual is intended for the 11.09.2020 version of the thermostat. THERMOSTAT APPLICATION Euroster 4010, is a user-friendly thermostat designed for controlling the temperature in living and utility rooms within the temperature range of 5 °C...35 °C. It is used to control the operation of the CH boiler and other heating system components.
-
Page 2: Installation
EUROSTER 4010 – INSTALLATION AND OPERATION MANUAL DISPLAY A. Current temperature B. Preset temperature C. Heating active symbol INSTALLATION 4.1. Safety rules CAUTION! • Prior to the commencement of any installation, works read this manual carefully! • Prior to mounting or dismantling the thermostat make sure that the heating system is de-energized. -
Page 3: Thermostat Configuration
EUROSTER 4010 – INSTALLATION AND OPERATION MANUAL Having finished the installation, check the correct connection of the cables. Retighten the joint cover. 4.4. Insertion and replacement of batteries Place the batteries in the thermostat while observing the correct polarity. There are installation markings in the battery compartment. -
Page 4: Setting Temperature
EUROSTER 4010 – INSTALLATION AND OPERATION MANUAL If you want to set a set temperature between 18 °C and 23 °C, you must set the "LO" value to 18 °C and the "HI" value to 23 °C. • Hysteresis/PWM (H) Two operational options of activating the heating algorithm are available: hysteresis or PWM. -
Page 5: Technical Data
14. SIMPLIFIED DECLARATION OF CONFORMITY P.H.P.U. AS AGNIESZKA SZYMAŃSKA-KACZYŃSKA hereby represents that the type of EUROSTER 4010 equipment conforms to the following directives: 2014/35/EU (LVD), 2014/30/EU (EMC), 2011/65/EU (RoHS). The complete text of the Declaration of EU conformity is available at the following Internet... -
Page 6: Warranty Certificate
EUROSTER 4010 – INSTALLATION AND OPERATION MANUAL 15. ELECTRONIC WASTE MANAGEMENT INFORMATION This product is designed and manufactured from high-quality materials and components suitable for reuse. The crossed-out wheelie bin symbol located on the product (Fig. 1) means that the product is subject to selective collection in accordance with the provisions of the Directive 2012/19/EU of the European Parliament and of the Council.
